Load Cell Calibration
Version 7 In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
4-23
9 Install the calibration arm and weights using the bolts at the end of the calibration
arm.
9a
Secure the calibration arm to the eddy current brake by tightening the bolt
using the handle.
9b Gently place the weights on the calibration arm.
Note: Verify the calibration arm is not contacting the cover.
The calibration weights are very heavy. The weights must be set on the arm
gently or you will damage the load cell.

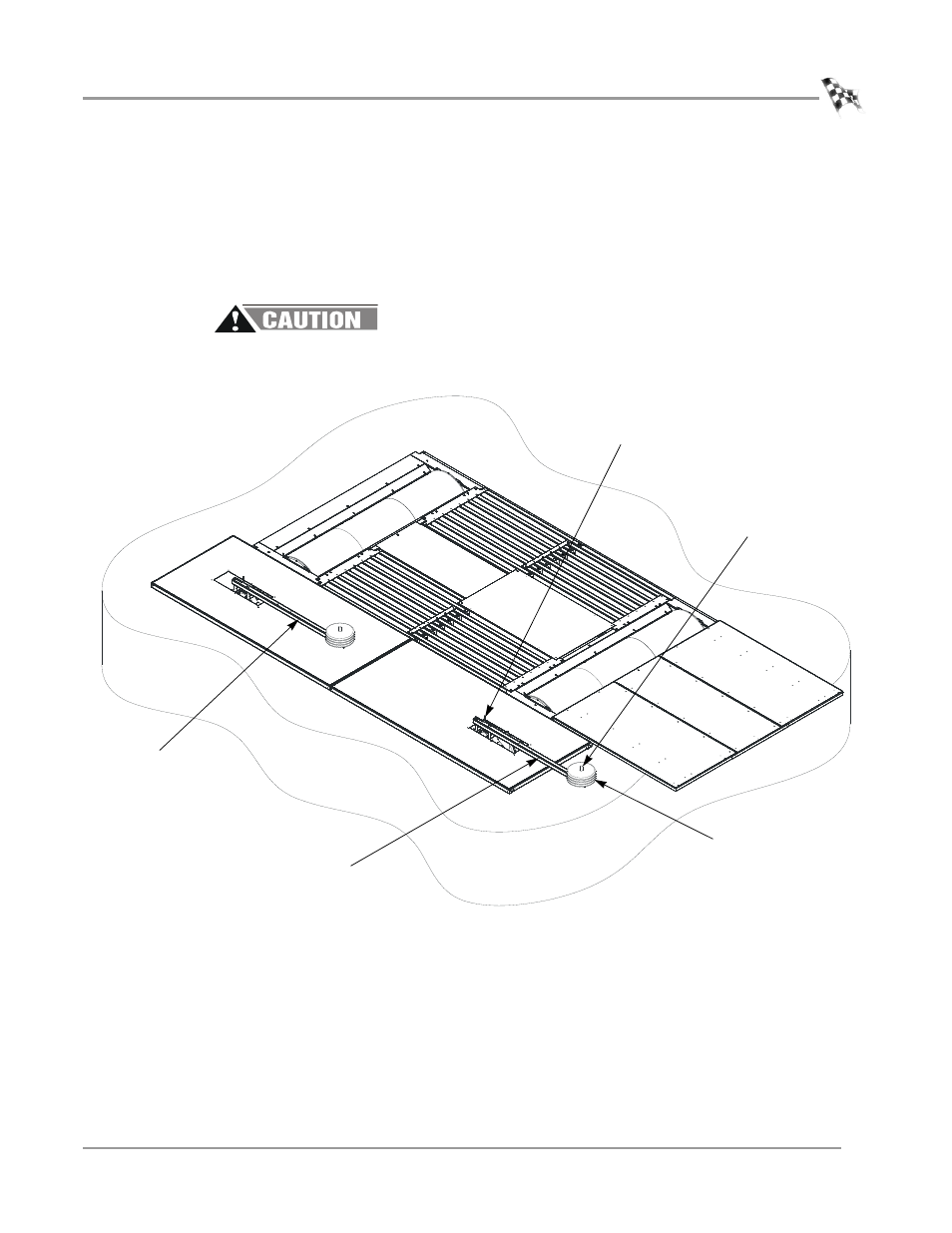

Figure 4-26: Install Calibration Arm and Weights
TM059
weights
weight support
pin
secure arm to brake by
tightening handle
first load cell and
calibration arm
second load cell
and calibration arm
