Dynojet 424x: Installation Guide User Manual
Page 63
4 W D D Y N O I N S T A L L A T I O N
Hydraulic Movement Installation
Version 7
In Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
3-27
3

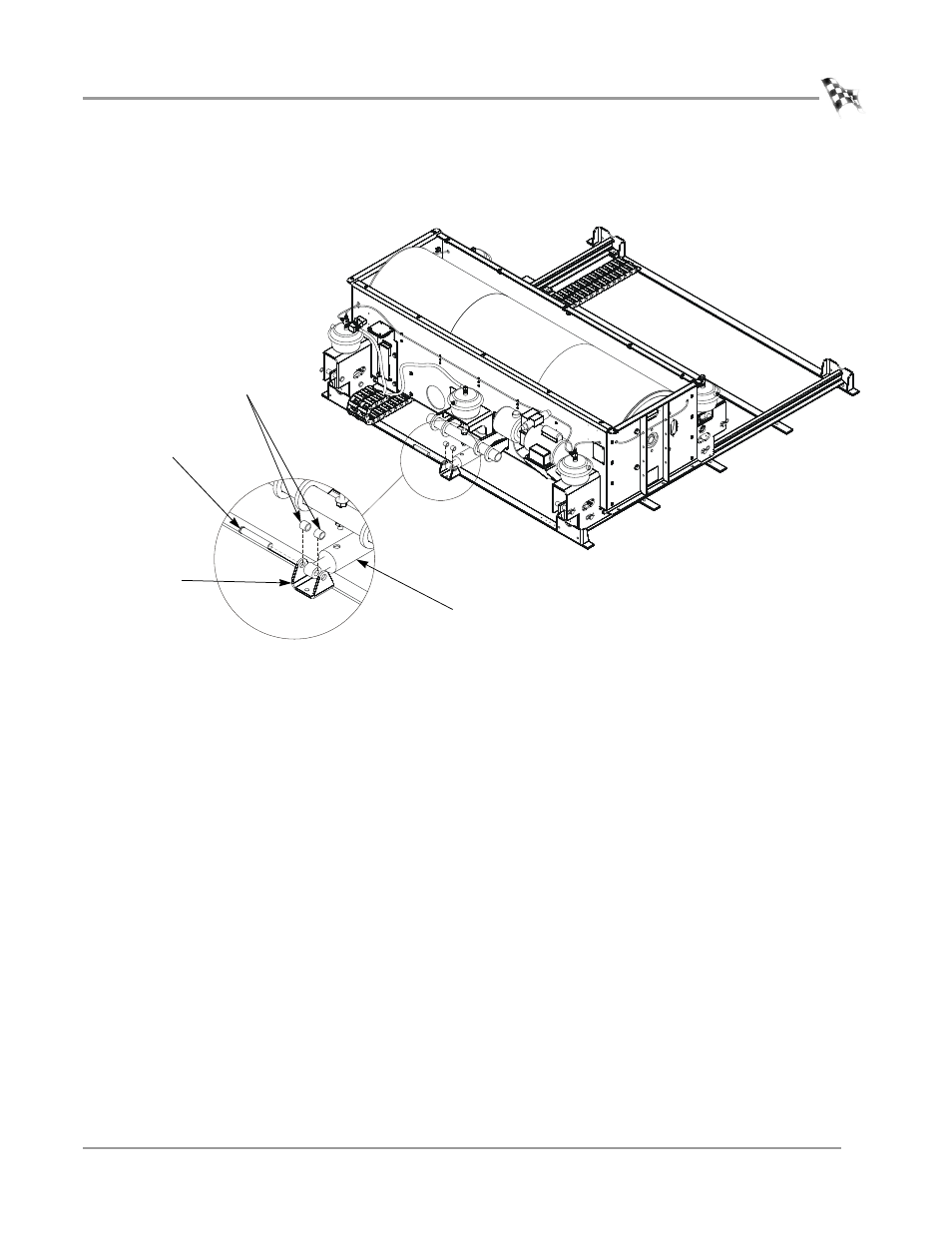

Temporarily hold the floor cylinder mount to the hydraulic ram using two spacers
and one clevis pin.
Figure 3-17: Hold the Floor Cylinder Mount to the Ram
AD344
clevis pin
spacers
floor cylinder
mount
hydraulic ram
