In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

C H A P T E R 3
Dyno Installation

3-10

P

LACING

THE

D

YNO

ON

THE

T

RACK

You will need to keep the cable track routed underneath the dyno and towards the
stationary dyno.
You will need the following parts:

• 26152020

Spacer, Rail Clamp (8)

• 36800973

Bolt, Shoulder, 3/8-16, 1/2"D x 1"L (8)

1

Remove the cotter pin and pin from all four cradle assemblies as shown in
Figure 3-6.

2

Verify the rail clamps are positioned as shown in Figure 3-6.

3

Verify the dyno movement motor is facing away from the stationary dyno.

4

Using the forklift, gently lower the dyno into the pit and onto the rails.

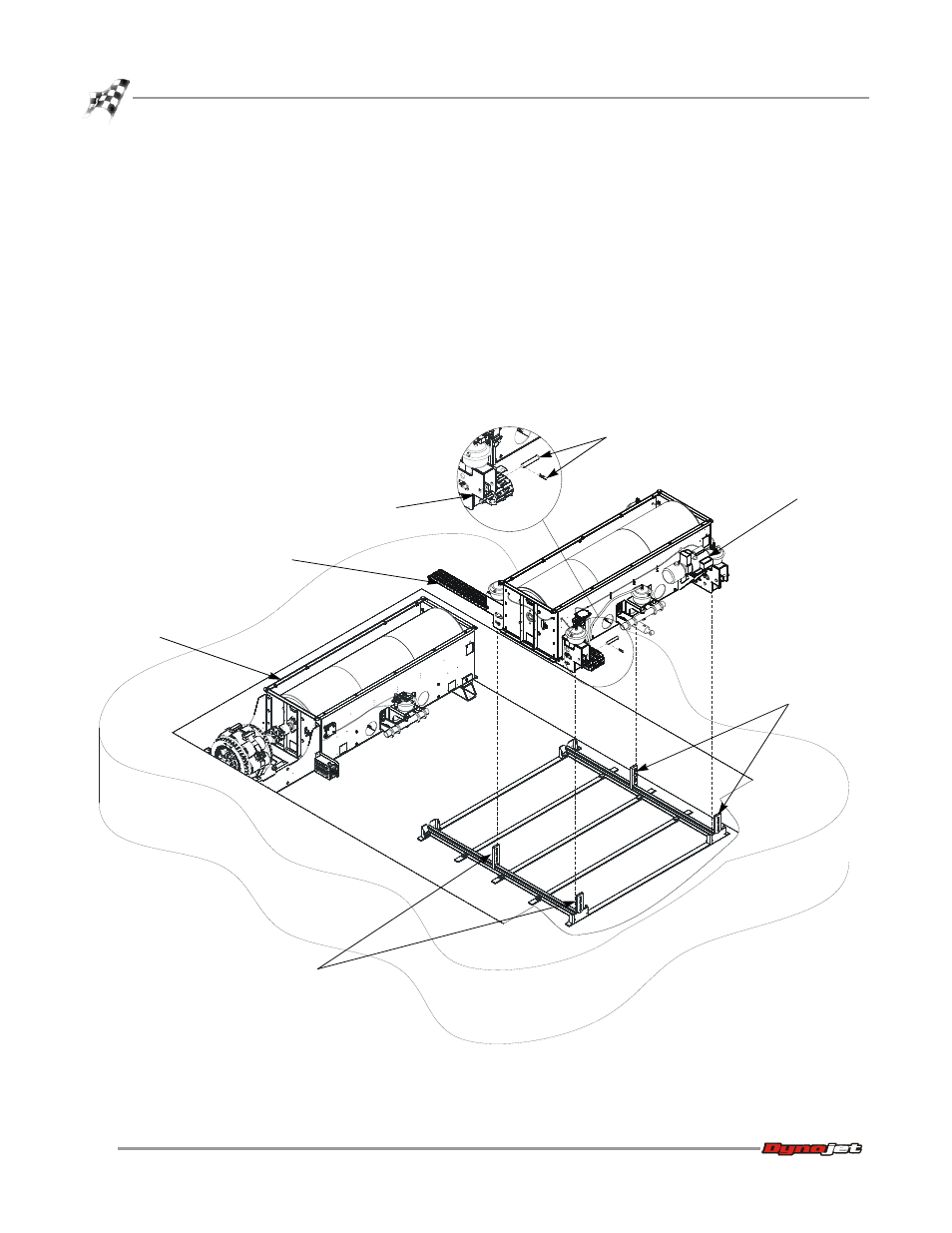

Figure 3-6: Lower the Dyno onto the Rails

AD378

rail clamp

hydraulic movement

motor facing away

from stationary dyno

cable track under dyno and

towards stationary dyno

rail clamp

cradle

assembly

pin and cotter pin

stationary dyno
