E D D Y C U R R E N T B R A K E I N S T A L L A T I O N
Eddy Current Brake Installation
Version 7
In Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
4-3
B
EFORE
I
NSTALLING
THE
E
DDY
C
URRENT
B
RAKE
: V
ERIFY
M
OUNTING
H
OLES
Dynos with the serial number 2240308 and lower will need to have mounting holes
drilled into the dyno frame before installing the eddy current brake.
Using a 5/8-inch or 1/2-inch drill, mark and drill the four holes as shown in Figure 4-2.

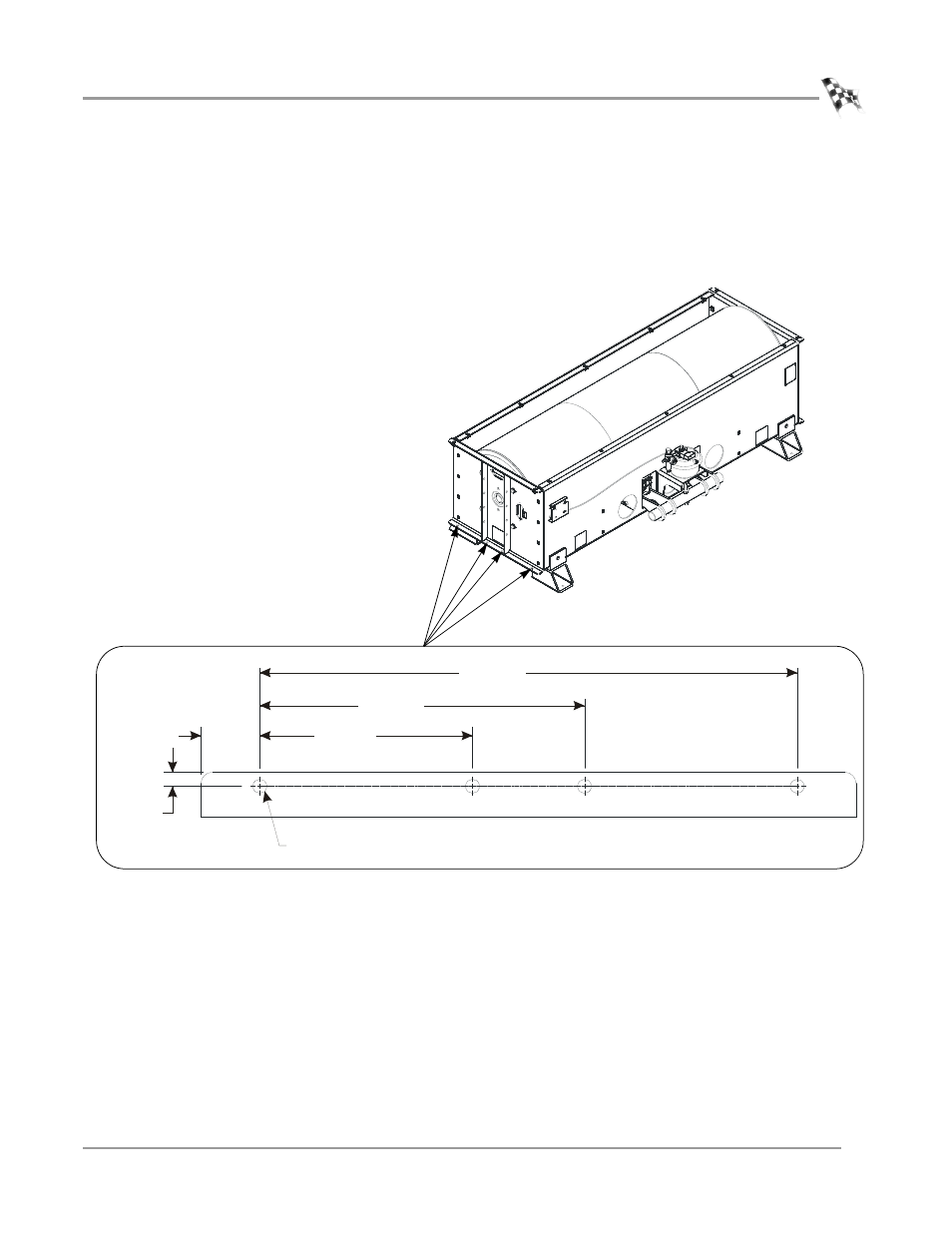

Figure 4-2: Eddy Current Brake Mounting Holes
AD138
1.59 cm
(0.625 in.)
6.67 cm
(2.625 in.)
24.13 cm
(9.50 in.)
36.83 cm
(14.50 in.)
60.96 cm
(24.00 in.)
1.59 cm
(0.625 in.)
