4 W D D Y N O I N S T A L L A T I O N
Forward Pit Covers
Version 7 In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
3-45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FORWARD PIT COVERS
Before installing the 4WD dyno pit covers, be sure to install the Linx option at this
time. Refer to the Linx Installation Guide P/N 98200021.
Use the following instructions to install the 4WD dyno pit covers.
You will need the following parts:
• 21219116 Forward Pit Cover, Right
• 21219117 Forward Pit Cover, Middle
• 21219118 Forward Pit Cover, Left
• 21519140 Forward Pit Cover Spacer
• 36580434 Bolt, 3/8-16 x 1/2", Button-Head, Flange (14)
• 36584871 Bolt, 3/8-16 x 3", Flange, Hex (5)
1 Place the pit cover spacer on the dyno frame with the holes aligned.
2 Secure the middle pit cover to the pit cover spacer using one 3/8-16 x 3-inch bolt.

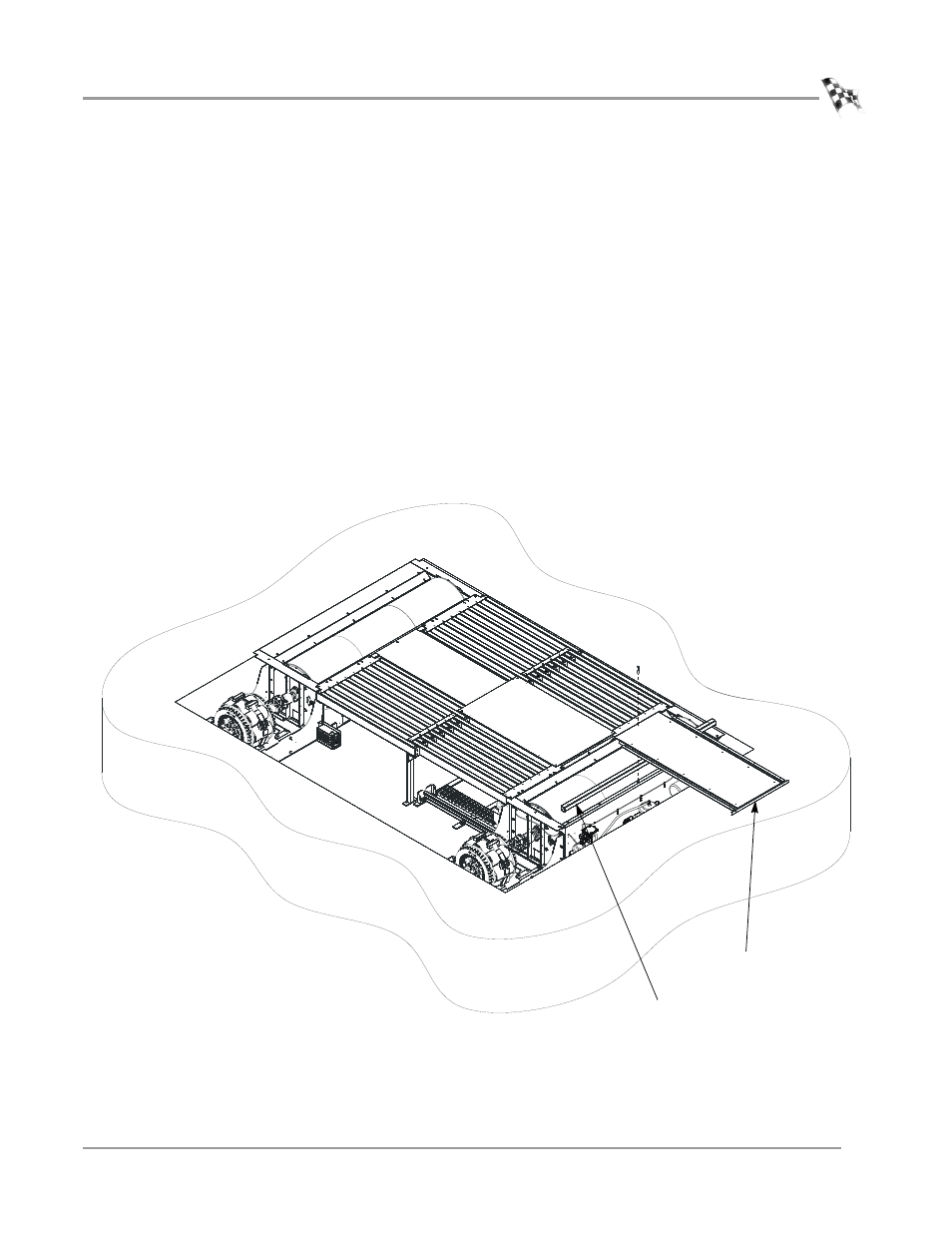

Figure 3-32: Install the Outer Pit Covers
AD388
middle pit cover
pit cover spacer
