Pre-Installation Guide for Model 224 and 424 Automotive Dynamometers
D Y N O P R E - I N S T A L L A T I O N I N F O R M A T I O N
Above Ground Model 224x Dyno
10
R OOM L AYOUT —A BOVE G ROUND M ODEL 224 X WITH L IFT
Use the following information to locate various dyno equipment, power outlets,
compressed air, and properly set up your dyno room.

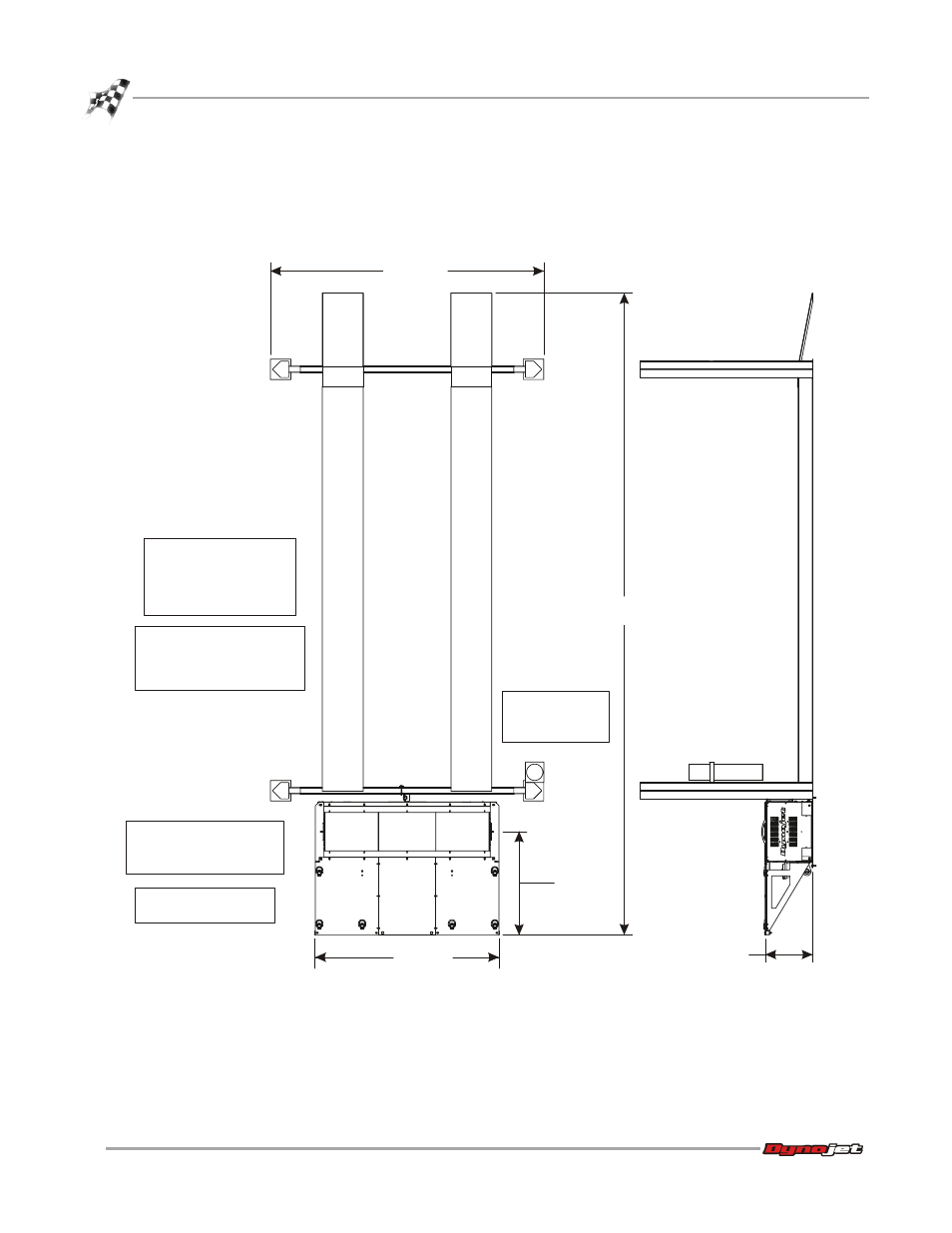

Figure 3: Room Layout—Above Ground Model 224x with Lift
798.00 cm
(314.25 in.)
128.37 cm
(50.54 in.)
228.60 cm
(90.00 in.) 58.42 cm
(23.00 in.)
AD396
provide 110V outlets for the:
•computer
•monitor
•dyno electronics
provide one 110V outlet
for the AFR-3 air pump
locate the following items
close to the vehicle:
•dyno electronics
•computer
•monitor
provide one 240V
outlet for the lift
power unit
338.00 cm
(133.00 in.)
provide compressed air:
•to release the air brake
•to run the AFR-4 air pump
