In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

C H A P T E R 5
Preventative Maintenance

5-12

V

ERIFYING

THE

SAAR B

RAKE

P

RESSURE

1

Verify the SAAR brake pressure gauge reads 100psi (690kPa).

2

Using the knob, adjust the regulator until the correct pressure is achieved.

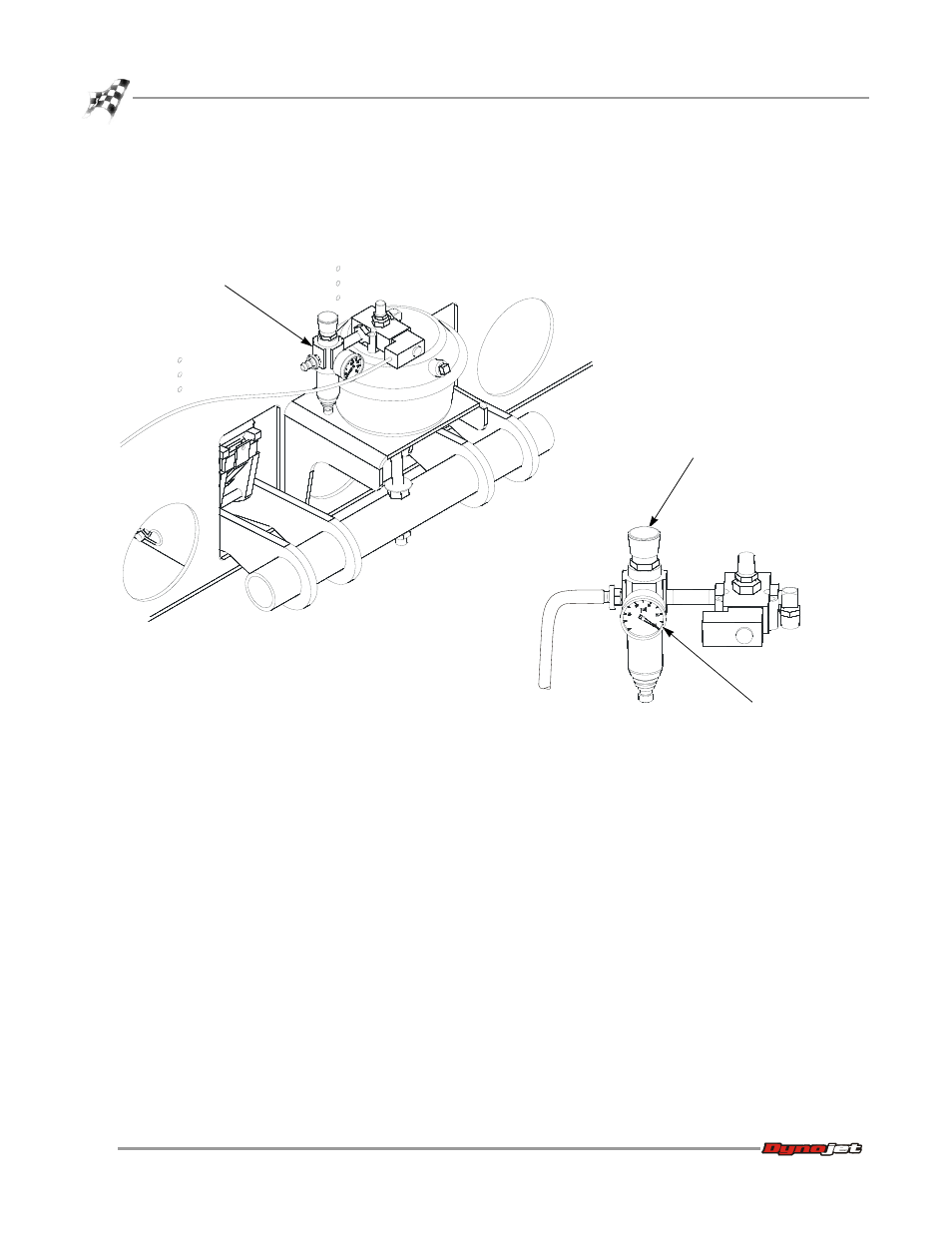

Figure 5-6: Verify the SAAR Brake Pressure and Adjust the Regulator

AB096

use the knob to adjust the

regulator until the correct

pressure is achieved

brake pressure

regulator

0

AB095

brake pressure gauge

should read 100psi

(690kPA)
