S P E C I F I C A T I O N S A N D O P E R A T I N G R E Q U I R E M E N T S
Dynamometer Specifications and Requirements
Version 7 In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
1-7

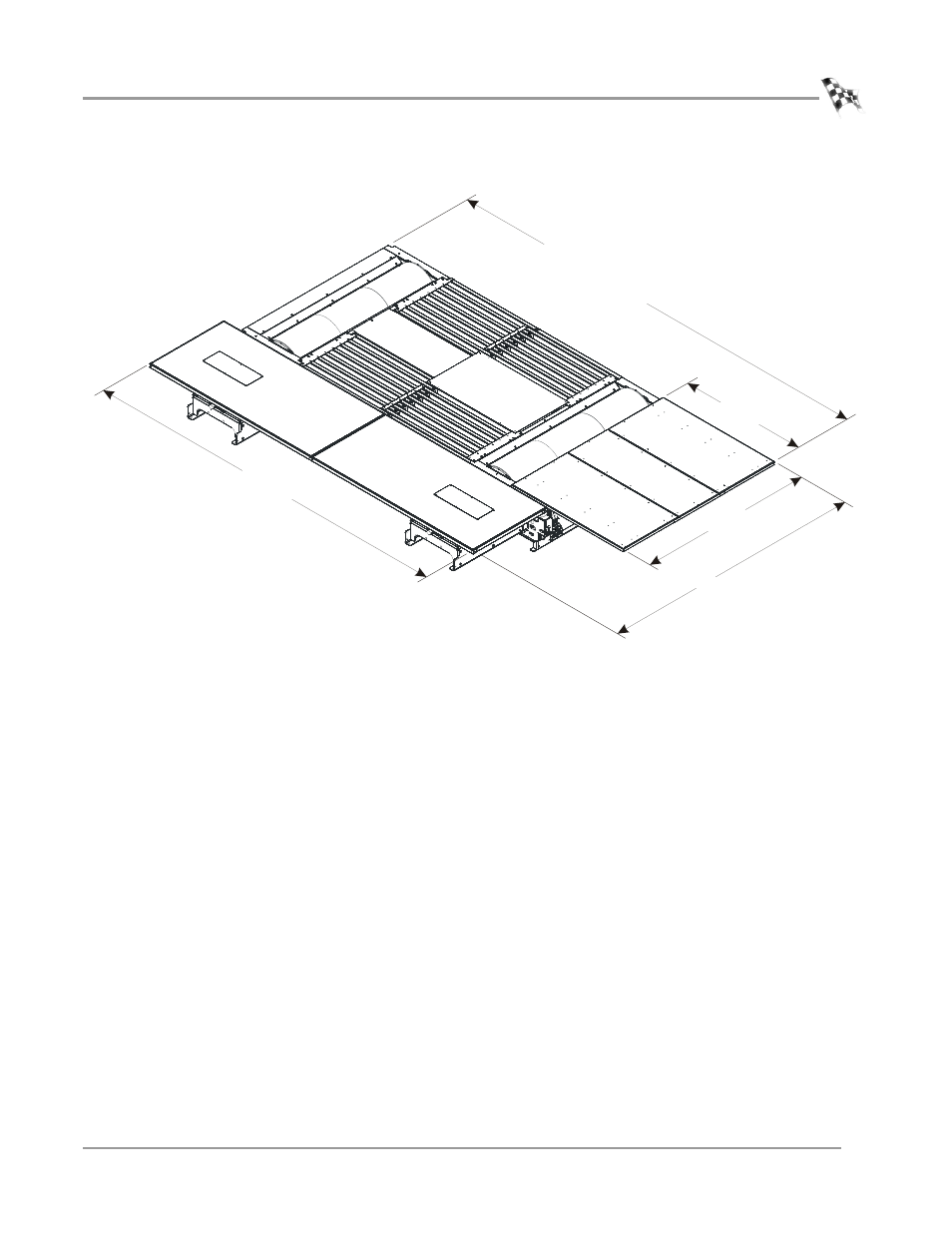

Figure 1-3: Model 424 4WD with Bridge and Pit Covers Dimensions
AD131
161.54 cm
(63.60 in.)
584.20 cm (230.00 in.) frame and covers full out
609.60 cm (240.00 in.) out with bridge extension*
469.90 cm (185.00 in.) frame and covers full in
495.30 cm (195.00 in.) in with bridge extension*
345.44 cm (136.00 in.)
229.87 cm
(90.50 in.)
492.76 cm (194.00 in.)
eddy current brake covers
*requires extension parts, inquire with Dynojet sales
