B A S I C D Y N O O P E R A T I O N

Loading the Vehicle

Version 7

In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

5-3

8

Attach the tie-down straps.
Rear Wheel Drive
• Attach two tie-down straps from secure anchor points to the rear of the

vehicle. Attach additional tie-down straps from the rear of the vehicle as shown

in Figure 5-2.

• Attach two tie-down straps from secure anchor points to the front of the

vehicle.

Front Wheel Drive
• Attach two tie-down straps from secure anchor points to the rear of the

vehicle.

• Attach two tie-down straps from secure anchor points to the front of the

vehicle. Attach additional tie-down straps across the front of the vehicle to

form a crisscross. The cross straps should be close to perpendicular to the car.

With front wheel drive vehicles, always use longitudinal and cross straps at the
front of the vehicle.

Four Wheel (All-Wheel) Drive
• Attach two tie-down straps from secure anchor points to the rear of the

vehicle. Attach additional tie-down straps across the rear of the vehicle to form

a crisscross.

• Attach two tie-down straps from secure anchor points to the front of the

vehicle. Attach additional tie-down straps across the front of the vehicle to

form a crisscross. The cross straps should be close to perpendicular to the car.

With four wheel drive vehicles, always use longitudinal and cross straps at the
front of the vehicle.

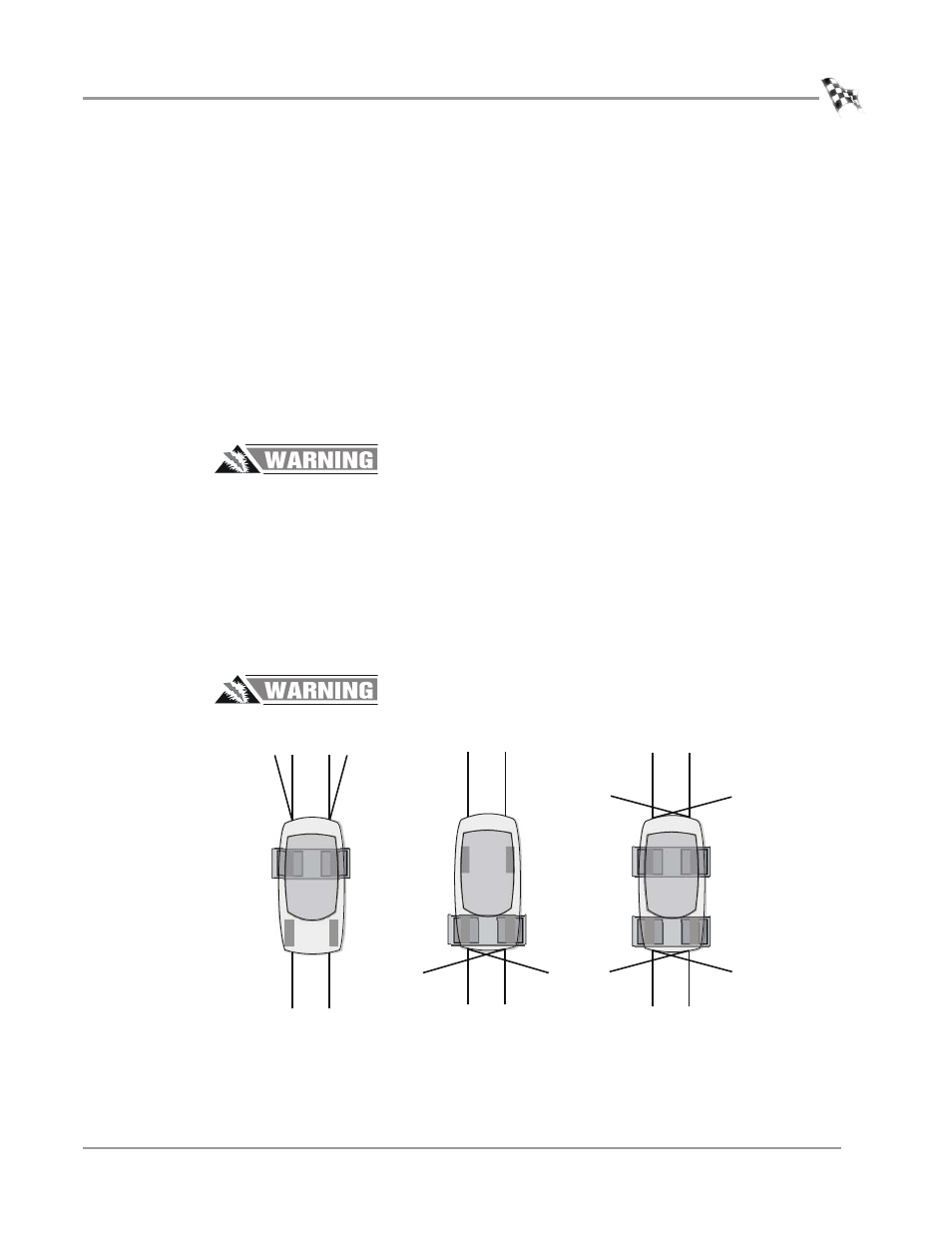

Figure 5-2: Attach the Tie-down Straps

rear wheel drive

front wheel drive

four wheel drive
