S P E C I F I C A T I O N S A N D O P E R A T I N G R E Q U I R E M E N T S

Pit Specifications

Version 7

In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

1-13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PIT SPECIFICATIONS

Before placing the dyno in the pit, take a moment to verify the dimensions of the pit
are correct.
Refer to the pit specifications (P/N 98219111) you received from your salesman for
more detailed specifications.
• pit depth: 72.07 cm (28.375 in.)
• pit length: 88-130-inch wheel base 452.12 cm (178.00 in.)

98-140-inch wheel base 477.52 cm (188.00 in.)

Note: Extended wheel base requires extension parts, inquire with Dynojet sales.
Linx option can not be used with the extended wheel base.

• pit width: with no eddy current brake 233.68 cm (92.00 in.)

with optional eddy current brake 340.36 cm (134.00 in.)

with optional eddy current brake and Linx option 451.49 cm (177.75 in.)

Note: Linx option can not be used with the extended wheel base.

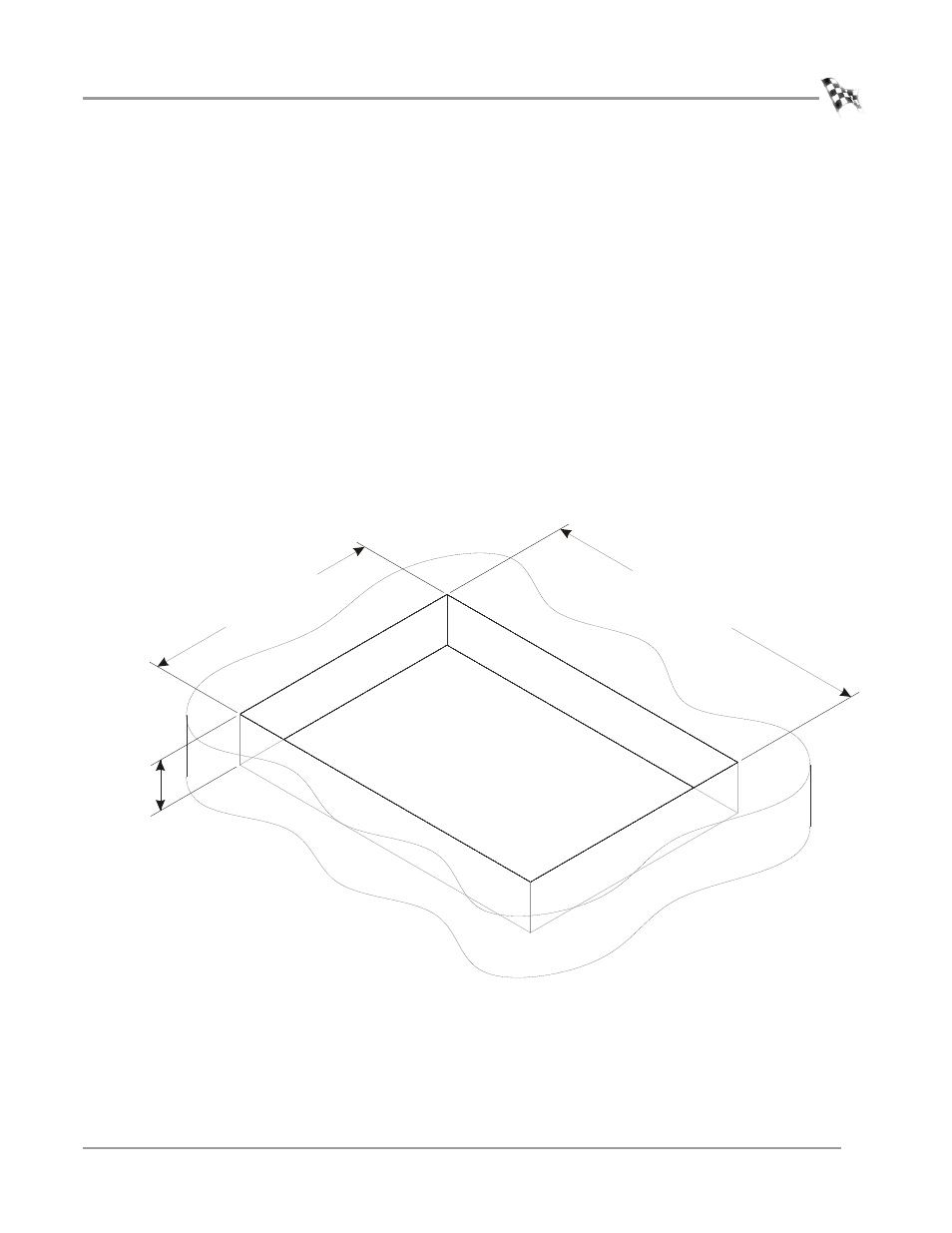

Figure 1-7: Pit Specifications

AD139

452.12 cm (178.00 in.)

88-130-inch wheel base

477.52 cm (188.00 in.)

98-140-inch wheel base**

72.07 cm

(28.375 in.)

233.68 cm (92.00 in.)

with no eddy current brake

340.36 cm (134.00 in.)

with eddy current brake

451.49 cm (177.75 in.)

eddy current brake with Linx*

*Linx option can not be used with the extended wheel base
**requires extension parts, inquire with Dynojet sales
