In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
C H A P T E R 4
Torque Module Installation
4-18
6 Secure the grounding strap on the back of the Torque Module to the existing top
module.
7 Secure the Torque Module to the dyno electronics with the plastic tie straps (one
on each side).
Note: Do not attach the load cell cable at this time.

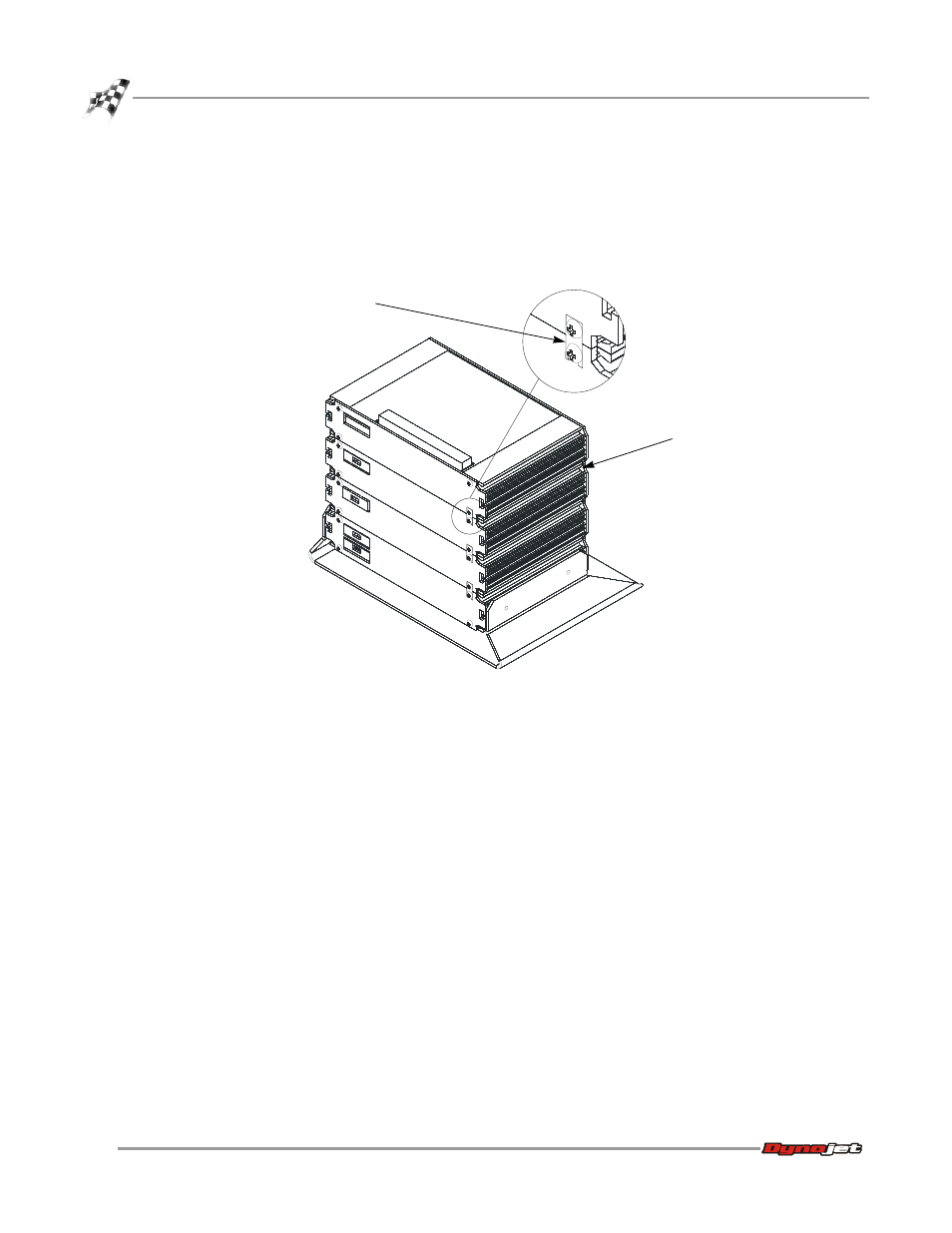

Figure 4-19: Secure the Grounding Strap
HS040
grounding strap
plastic tie strap
