Eddy Current Brake Installation
Version 7 In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
4-5
4 Remove the four lag bolts securing the brake to the crate.
5 Place the nylon loop strap around the shaft on either side of the brake.
Dynojet recommends using single loop style straps.
6 Using a forklift, lift the eddy current brake from the crate and place the brake near
the dyno.
# RECORD
Be sure you record the dynamometer and/or eddy current brake number on
the inside cover of this manual.

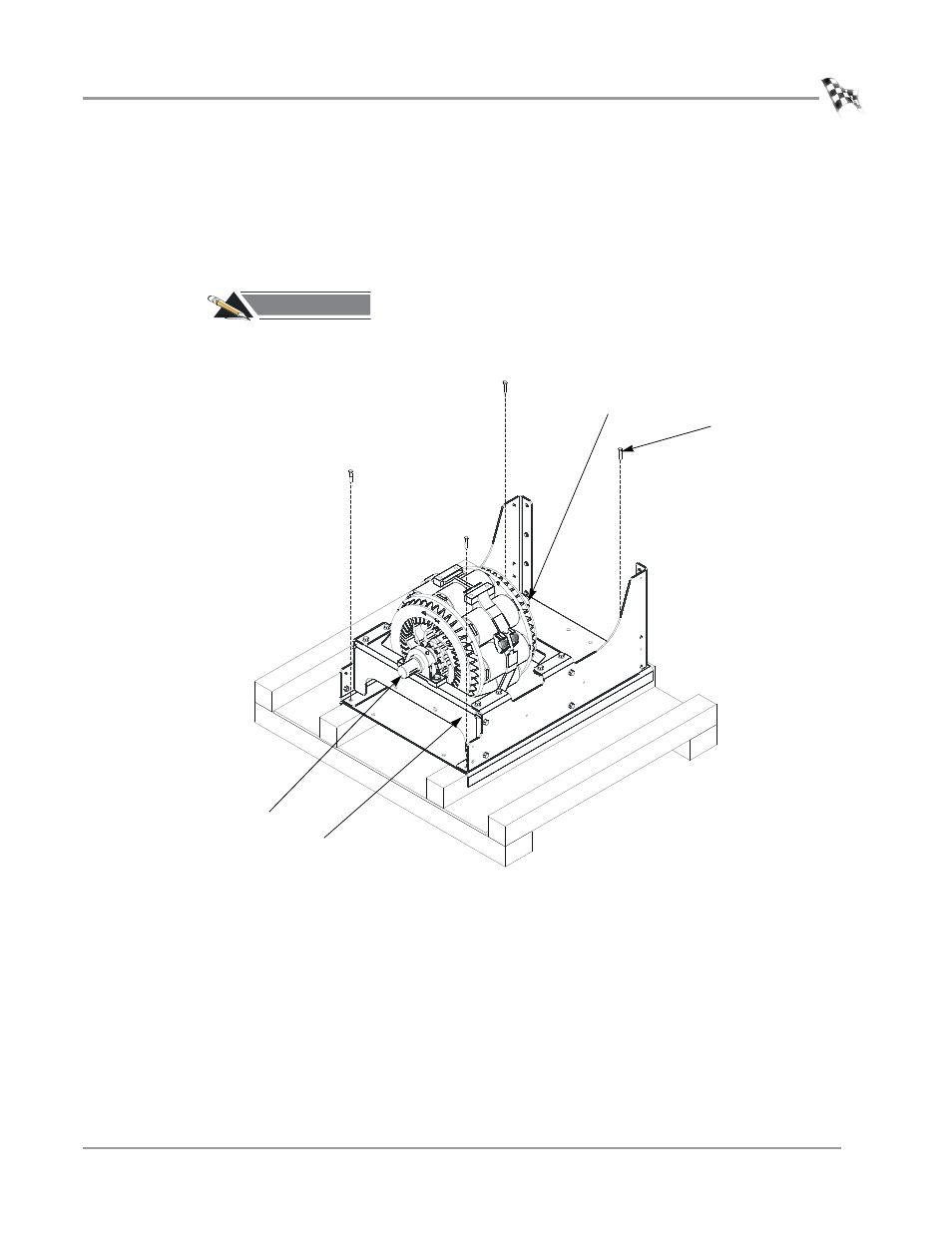

Figure 4-4: Remove the Brake from the Crate
EB125
shaft
bolt
shaft
brake number
