E D D Y C U R R E N T B R A K E I N S T A L L A T I O N

Torque Module Installation

Version 7

In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

4-17

4

Loosen the top right screw on the back of the existing top module.

5

Plug the Torque Module (or modules) into the existing top module. Place the dust
cover, removed in step 3, on the Torque Module.

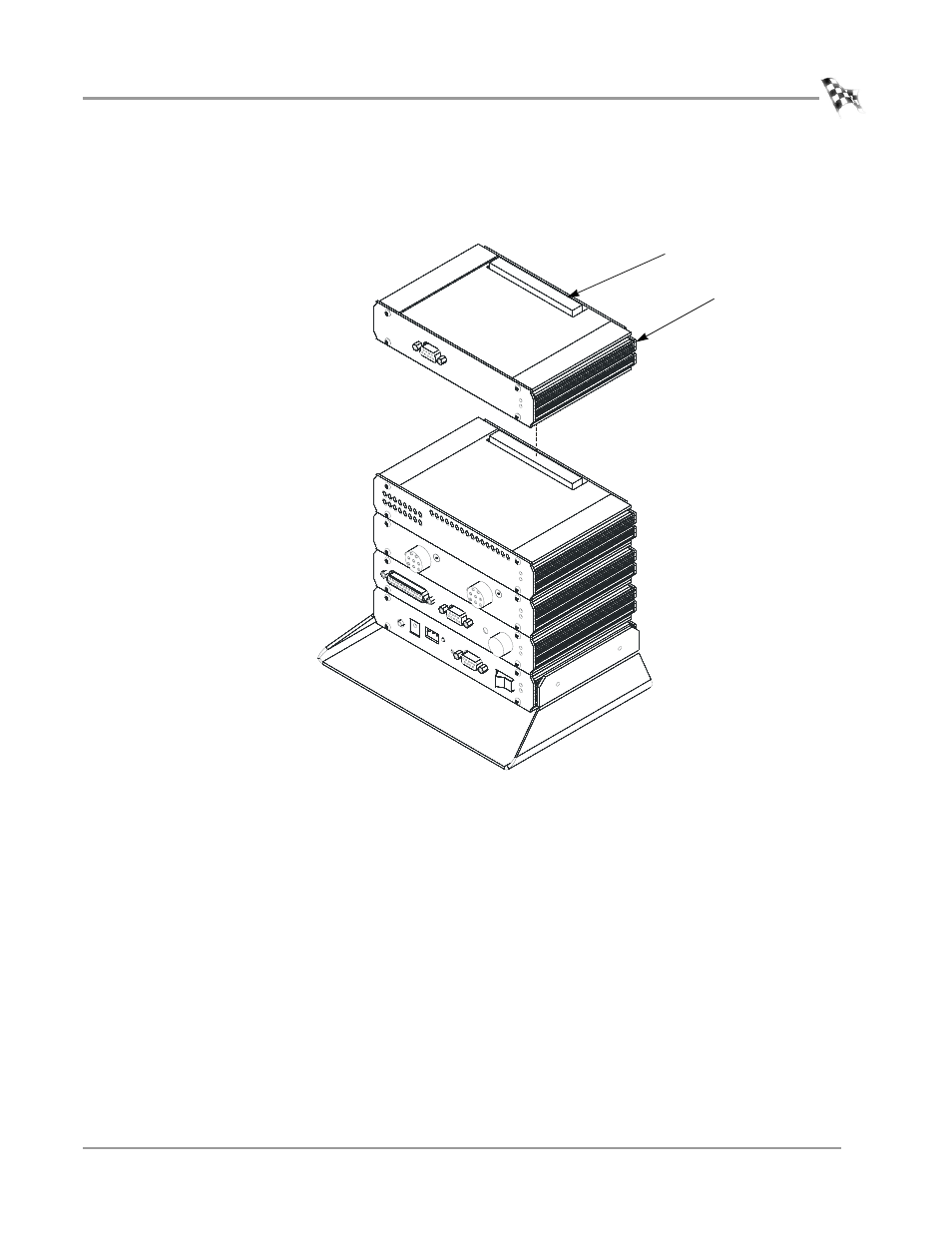

Figure 4-18: Attach the Torque Module

TM054

torque module

dust cover
