E D D Y C U R R E N T B R A K E I N S T A L L A T I O N
Torque Module Installation
Version 7 In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
4-19
C ONNECTING THE L OAD C ELL C ABLE
The load cell cable was routed from the dyno to the dyno electronics on page 3-13
and page 3-20.
1
Attach the 9-pin connector on the load cell cable to the front of the Torque
Module and tighten down the screws.
Note: When there are two Torque Modules, connect the load cell cable from the
4WD dyno to the top Torque Module.
2 Attach the power cord to the CPU Module and turn the power switch on.
3 The green LED light on the Torque Module(s) should now be on.

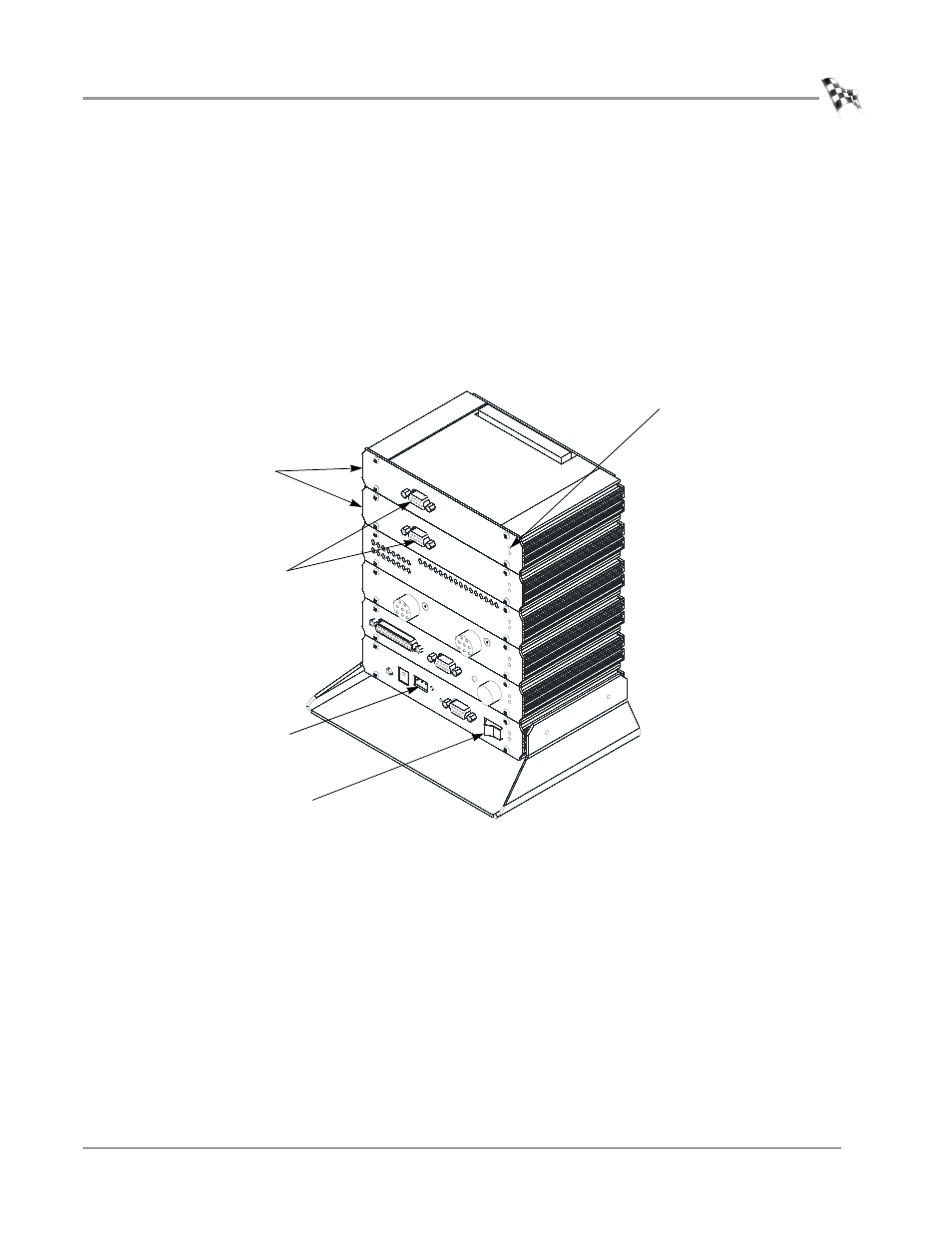

Figure 4-20: Connect the Cell Cable
TM055
attach load cell cable
green LED light
torque modules
attach power cord
turn on power
