In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
C H A P T E R 3
Cable Routing
3-22
20 Route the power cable (G) from the first cable track, through the pit conduit, and
connect to the power supply. Plug the power supply into your power source.
21 Connect the power supply to the dyno electronics. Plug the power supply into
your power source.

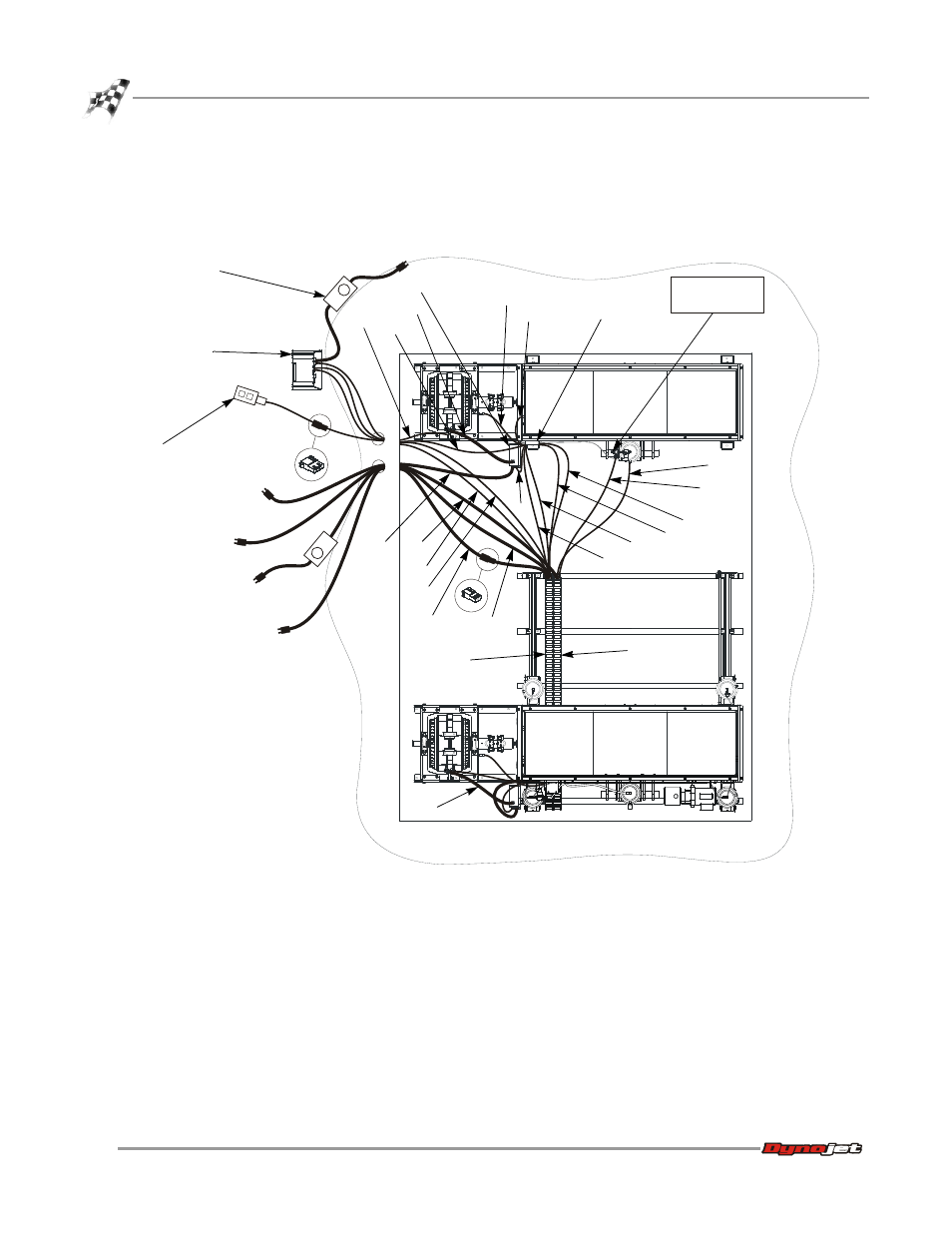

Figure 3-13: Routing Cables—With Two Eddy Current Brakes
DRY AIR IN
100-140 PSI
AD392
E
dyno electronics
stationary
dyno
4WD dyno
first cable
track
F
G
dyno movement
pendant
power supply for
dyno electronics
breakout
board
second
cable track
K
J
I
D
B
O
M
A
C
L
P Q
N
theta controller
R
S
H
