3-18 IETG FlowHawk Manual

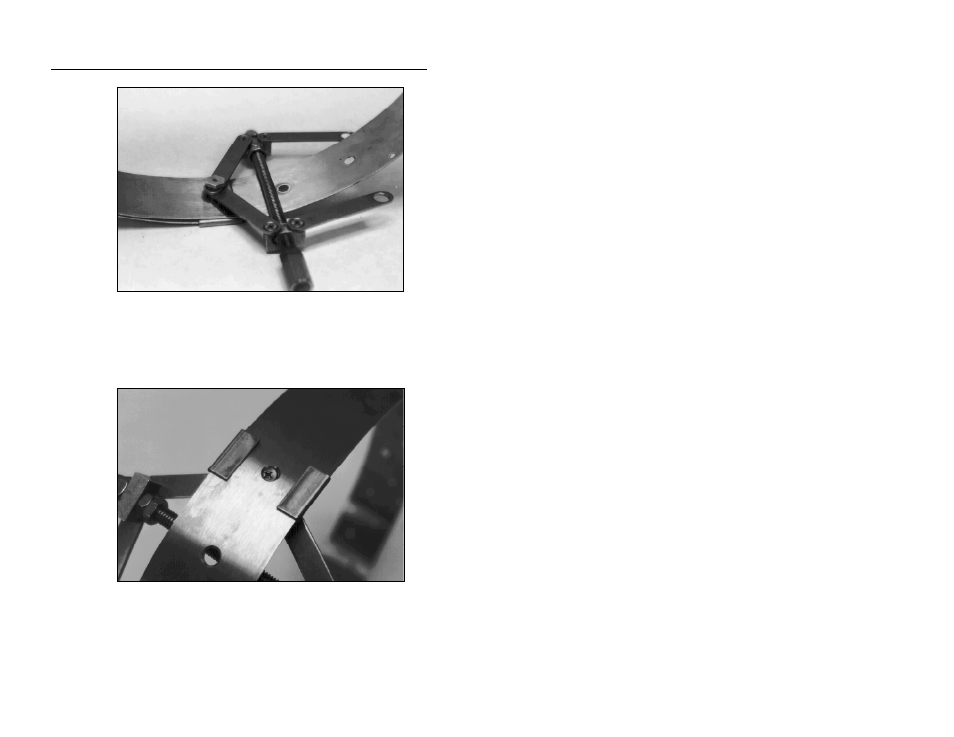

Attaching the spreader bars
16. Turn the ring until the spreader mechanism is in the 12:00
position.
17. Align the spreader mechanism screw so that the head is visible
through one of the ring size adjustment holes.
Aligning the screw head and adjustment hole
18. Tighten the screw through the hole using a Phillips-head
screwdriver while holding the hex nut with a 12-mm (0.5-in.)
nut driver.
