3-46 IETG FlowHawk Manual

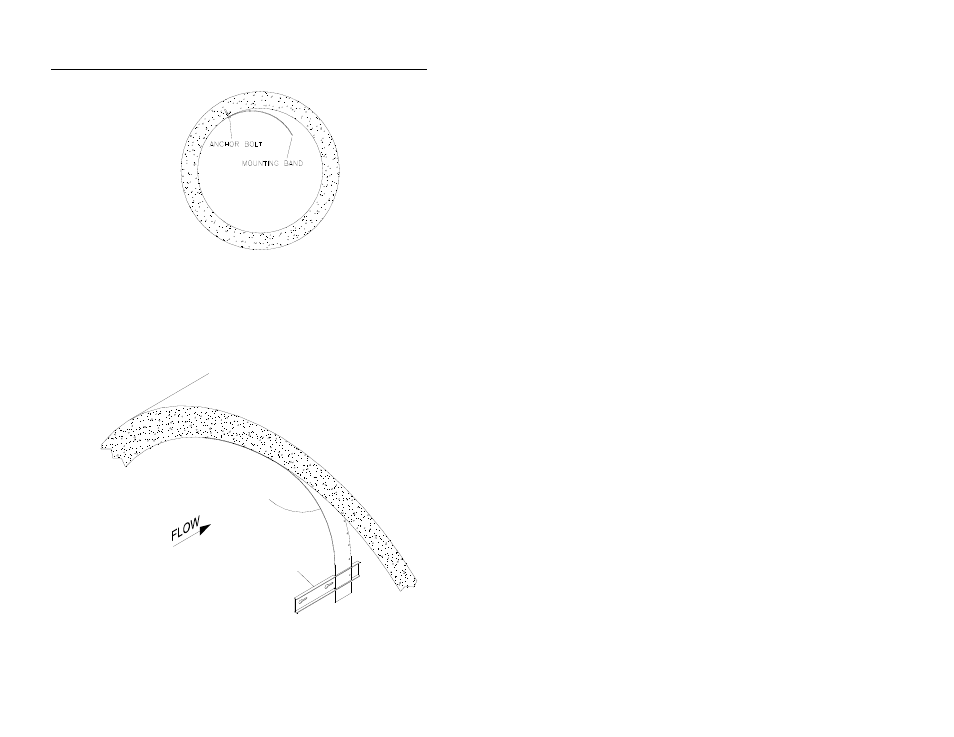

Securing one end of the sensor mounting band
6. Slide the sensor mounting plate onto the band in the following
way based on the sensor type:
 Surface Combo Sensor Slide the plate onto the band
with the end of the plate with the keyholes facing
upstream and the two band slots facing up.
PLATE
MOUNTING
SENSOR
MOUNTING BAND
Sliding the mounting plate for the Surface Combo Sensor onto the free end
of the mounting band
