Configuration and Activation 6-73

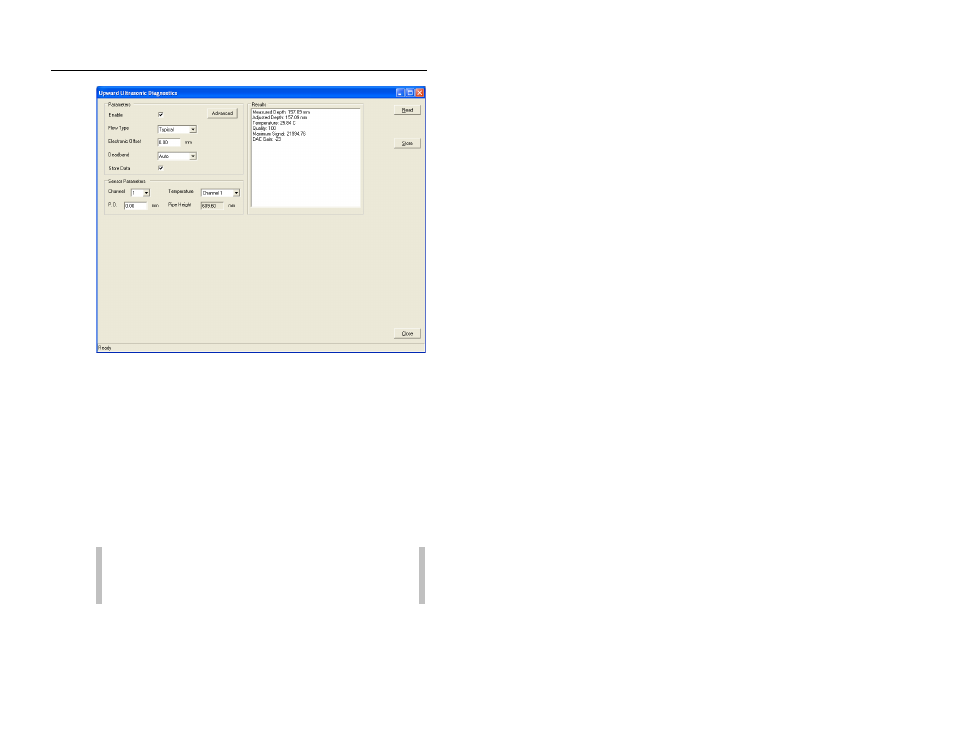

Upward Ultrasonic Diagnostics dialog displaying the results after firing the
Upward Ultrasonic 1 device
3. Verify the accuracy, consistency, and quality of the readings,
and edit the configuration parameters as necessary.
Electronic Offsets can be used to make monitor depth readings
coincide with depths measured in the field.
 Field Depth = UpDepth1 + Electronic Offset
 If the sensor reading is Low, add a positive (+) electronic
offset.
 If the sensor reading is High, add a negative (–) electronic
offset.
Note: Enter an electronic offset only when your are
confident in the accuracy of the manual measurements and
physical offset of the sensor.
4. (optional) Click on the Advanced button to view more
detailed diagnostic information.
