3-48 IETG FlowHawk Manual

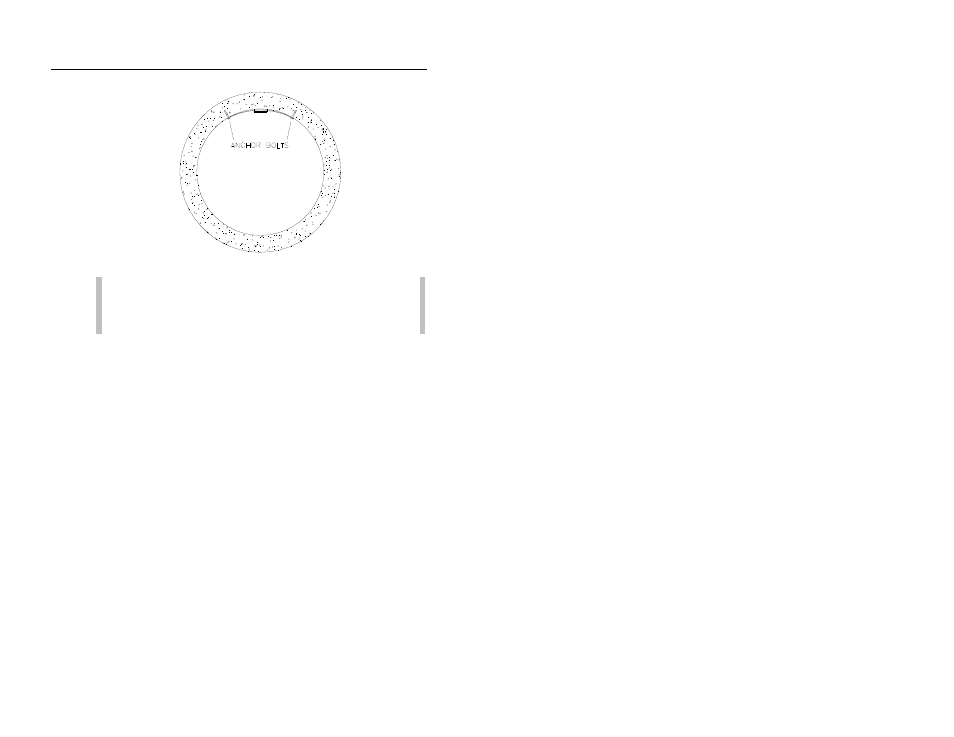

Securing the other end of the band
Note: If the sensor mounting plate has too much side
play, attach another anchor bolt approximately 25 mm
from the plate.
10. Slide the sensor mounting plate along the metal band until it is
level (from side to side) with the flow surface and pipe crown,
and tighten the nuts securely with a nut driver. Refer to the
instructions on leveling this sensor in Installing the Ring in the
Pipe beginning on 3-25.
11. Install the sensor onto the mounting plate in the following way
based on the sensor type:
 Surface Combo Sensor Mount this sensor by
inserting the studs on the back of the sensor into the
keyholes on the mounting plate and sliding the sensor
back (in a downstream direction) until it is fully in place.
The sensor cable should exit the downstream edge of the
band.
