Configuration and Activation 6-83
1. Select the Temperature [1 or 3] sensor from the Diagnose
Device drop-down list, and then select the Diagnose button.
Temperature 1 represents the temperature sensor in both the
Peak Combo Sensor and the Slimline Peak Combo Sensor;
Temperature 3 represents the temperature sensor in the
Surface Combo Sensor and the Ultrasonic Depth Sensor.
The Temperature Diagnostics dialog displays.

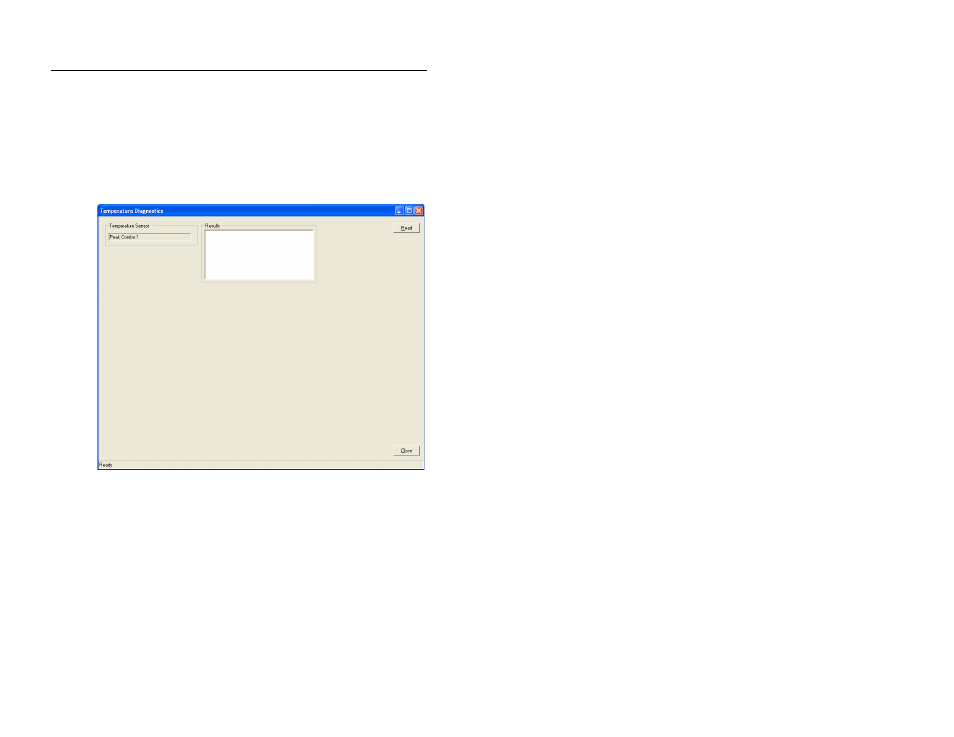

Temperature Diagnostics dialog for Temperature 1 device
2. Click on the Read button.
The Results section displays the current temperature in or
above the flow measured by the corresponding temperature
sensor.
