Sensor Installation and Connection 3-57
1
L
E
N
N
A
H
C
L
E
N
N
A
H
C
M
AX
Y
8
L
2
N
k
O
P
T
S
E
T
a
.
W W W.IETG
U K
.CO .
CO M M
2
FLOWHAWK
TM
IETG
Ex ia IIB T4 Ga
Sira 09ATEX2027X
II 1 G
0518
MODEL: 8000 - FHK/FST
Use only battery pack 106152

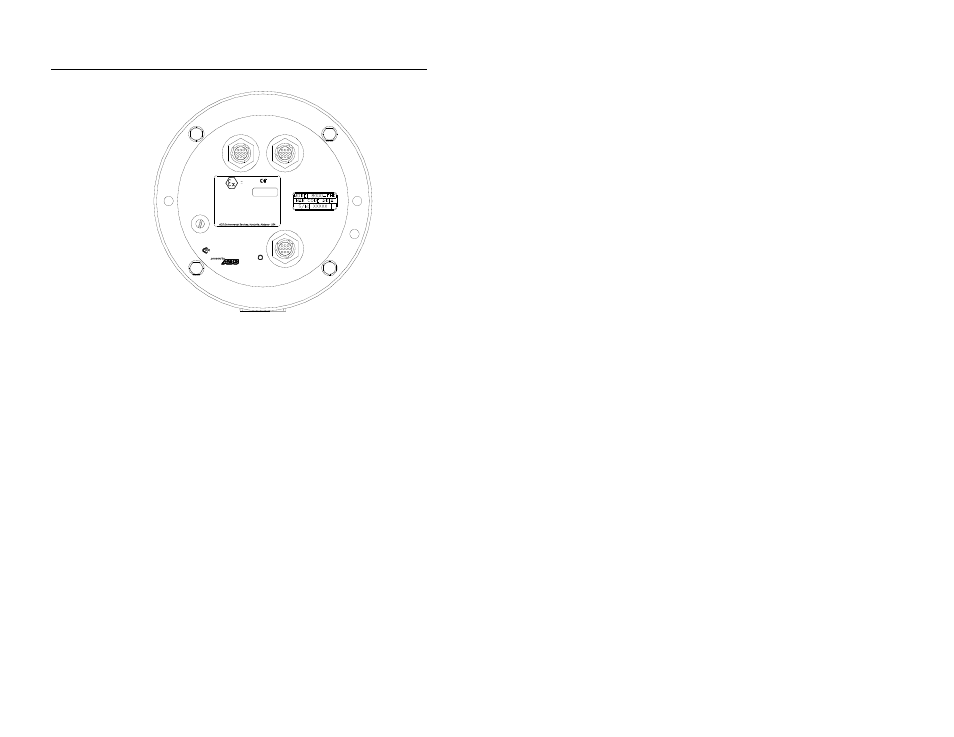

Cable connector ports
2. Visually inspect each sensor connector and monitor connector
port for damaged or broken pins. Replace a monitor or sensor
with defective ports or connectors.
3. Visually inspect each sensor and monitor connector port for
debris and moisture. Clean off any debris, and dry any
surface moisture. Compressed air is useful for removing
moisture from the inside of the connectors or ports (pin and
socket surfaces).
4. Verify that the waterproof seal is present inside each sensor
cable end connector. The bright orange, rubber seal should
sit at the bottom of the connector with the pins protruding
through the seal.
5. Connect each sensor cable to the appropriate port. Tighten
each rotating connector collar in a clockwise direction until it
clicks, and verify that it is seated correctly.
6. For locations exhibiting the presence of hydrogen sulfide
and/or high moisture, provide added protection by wrapping
the connection with mastic tape.
