Communication 4-43

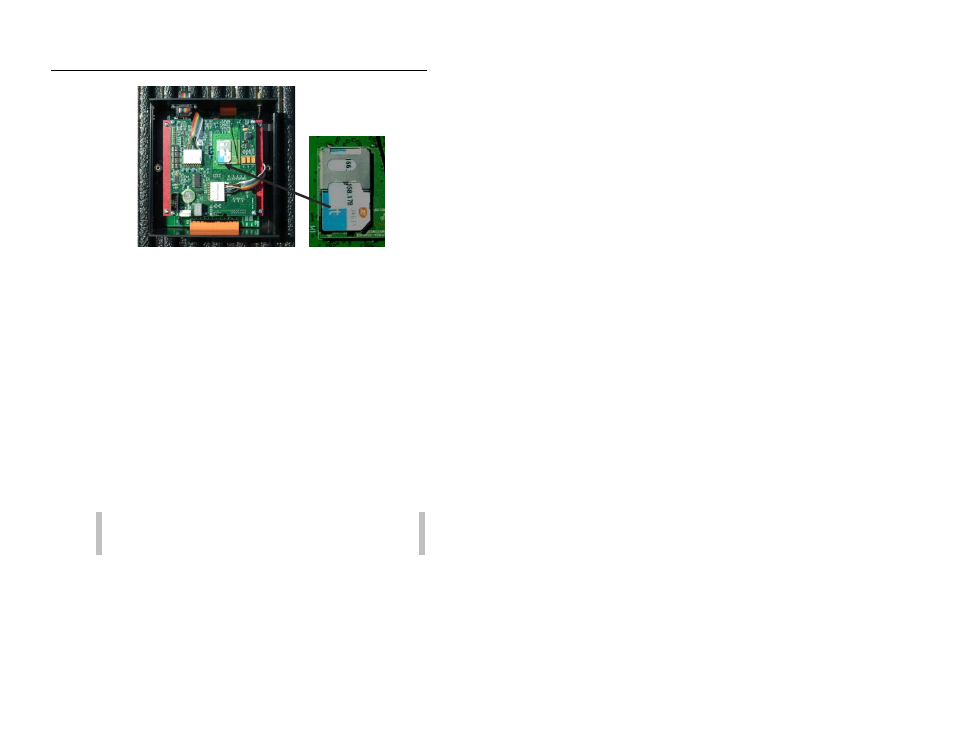

Sliding the SIM card into the clip
4. Replace the cover onto the EMUX, and replace and tighten the
screws.
Connecting the Communication Cable to the
EMUX
Connect the communication cable to the EMUX in the following
way:
1. (applies only to monitors installed in manholes) Verify that
the communication cable has been installed and at least 1016
mm (40 in) of communication cable extends from the ground at
the EMUX location.
2. Run the communication cable up through the fitting in the
enclosure in which the EMUX will be mounted. Pull enough
cable through the hole to allow room to hold the cable while
attaching the wires to the connector.
Warning: Verify that the communication cable is NOT
attached to the flow monitor.
3. Terminate the 12 wires from the communication cable into the
orange connector on the bottom of the EMUX, using the 3-mm
(1/8-in) flat head screwdriver. Refer to the label affixed to the
EMUX just above the 12-pin port or the table below. Make
sure the shrink-wrapped resistors remain in place while
terminating the wires, and verify that all the screws are tight.
