66

Rockwell Automation Publication 2097-UM002C-EN-P - December 2013

Chapter 4 Connect the Kinetix 350 Drive System

Pigtail Terminations

TL-Series motors have a short pigtail cable that connects to the motor, but is not
shielded. The preferred method for grounding the TL-Series power cable on the
motor side is to expose a section of the cable shield and clamp it directly to the
machine frame. The motor power cable also has a 150 mm (6.0 in.) shield
termination wire with a ring lug that connects to the closest earth ground. Use
this method in addition to the cable clamp. The termination wire can be
extended to the full length of the motor pigtail if necessary, but it is best to
connect the supplied wire directly to ground without lengthening.

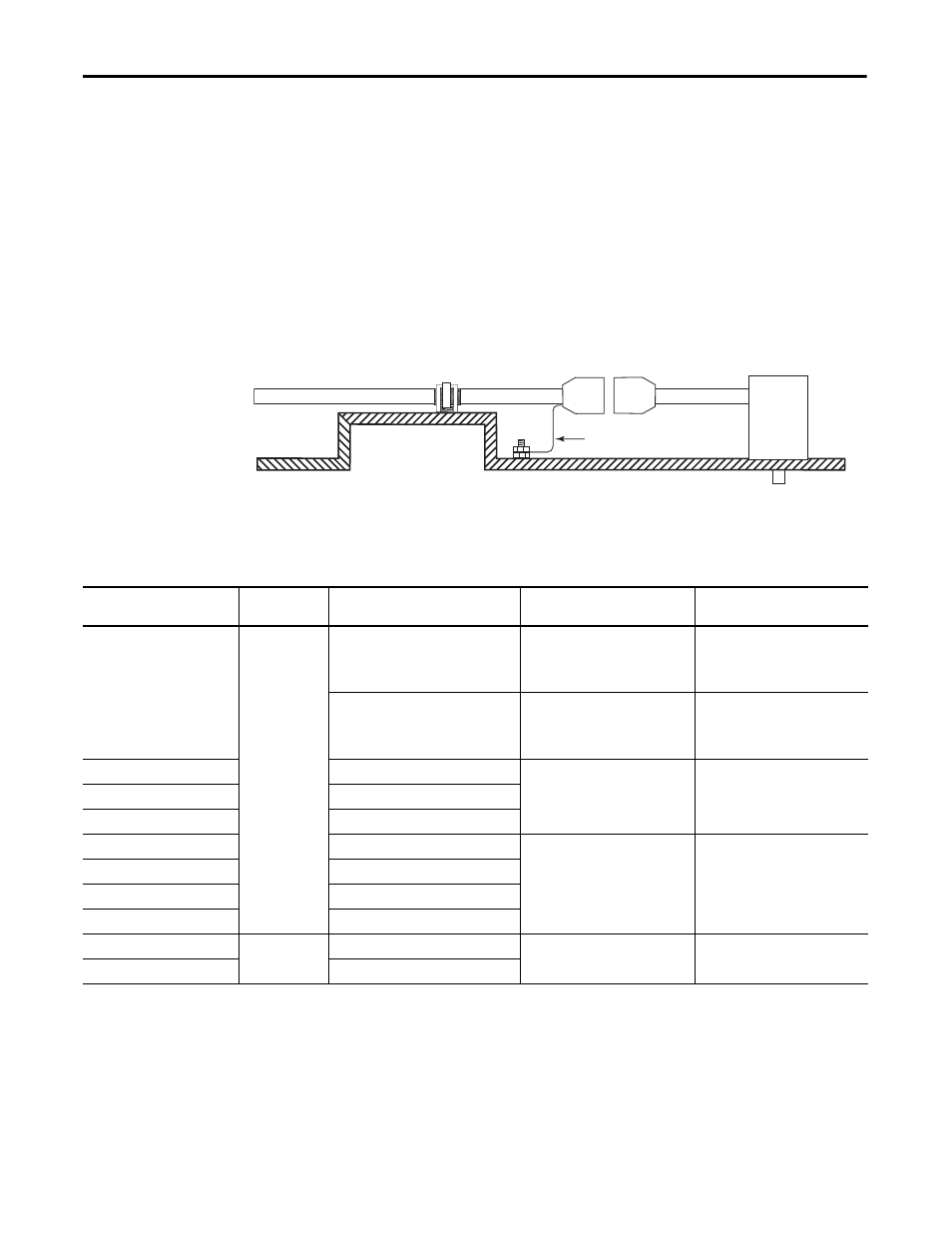

Figure 35 - Pigtail Terminations

(1) Remove paint from machine frame to be sure of proper HF-bond between machine frame, motor case, shield clamp, and ground

stud.

Table 27 - Motor Power Cable Compatibility

(1)

(1)

Pigtail Cable

TL-Series

Motor

Connectors

Motor Power Cable

Machine Frame

150 mm (6.0) Termination

Cable Braid Clamped

(1)

to Machine Frame

Motor/Actuator

Connector

Motor/Actuator Cat. No.

Motor Power Cables

(with brake wires)

Motor Power Cables

(without brake wires)

MP-Series (Bulletin MPL)

Circular DIN

MPL-A/B15xxx-4xAA and

MPL-A/B2xxx-4xAA

2090-XXNPMF-xxSxx

(standard)

2090-CPBM4DF-xxAFxx

(continuous-flex)

2090-CPWM4DF-xxAFxx

(continuous-flex)

MPL-A/B3xxx-7xAA,

MPL-A/B4xxx-7xAA, and

MPL-A/B45xxx-7xAA

2090-CPBM7DF-xxAAxx

(1)

(standard)

2090-CPBM7DF-xxAFxx

(1)

(continuous-flex)

2090-CPWM7DF-xxAAxx

(1)

(standard)

2090-CPWM7DF-xxAFxx

(1)

(continuous-flex)

MP-Series (Bulletin MPS)

MPS-A/Bxxxx

2090-XXNPMF-xxSxx

(standard)

2090-CPBM4DF-xxAFxx

(continuous-flex)

2090-CPWM4DF-xxAFxx

(continuous-flex)

MP-Series (Bulletin MPAS)

MPAS-A/Bxxxx

MP-Series (Bulletin MPAR)

MPAR-A/B1xxx and MPAR-A/B2xxx

MP-Series (Bulletin MPM)

MPM-A/Bxxxx

2090-CPBM7DF-xxAAxx

(1)

(standard)

2090-CPBM7DF-xxAFxx

(1)

(continuous-flex)

2090-CPWM7DF-xxAAxx

(1)

(standard)

2090-CPWM7DF-xxAFxx

(1)

(continuous-flex)

MP-Series (Bulletin MPF)

MPF-A/Bxxxx

MP-Series (Bulletin MPAR)

MPAR-A/B3xxx

MP-Series (Bulletin MPAI)

MPAI-A/Bxxxx

TL-Series (Bulletin TLY)

Circular Plastic

TLY-Axxxx

2090-CPBM6DF-16AAxx (standard)

2090-CPWM6DF-16AAxx (standard)

TL-Series (Bulletin TLAR)

TLAR-Axxxx

(1) You must remove the motor-side o-ring when you are using 2090-CPxM7DF-xxAxx cables.
