Rockwell Automation Publication 2097-UM002C-EN-P - December 2013

65

Connect the Kinetix 350 Drive System Chapter 4

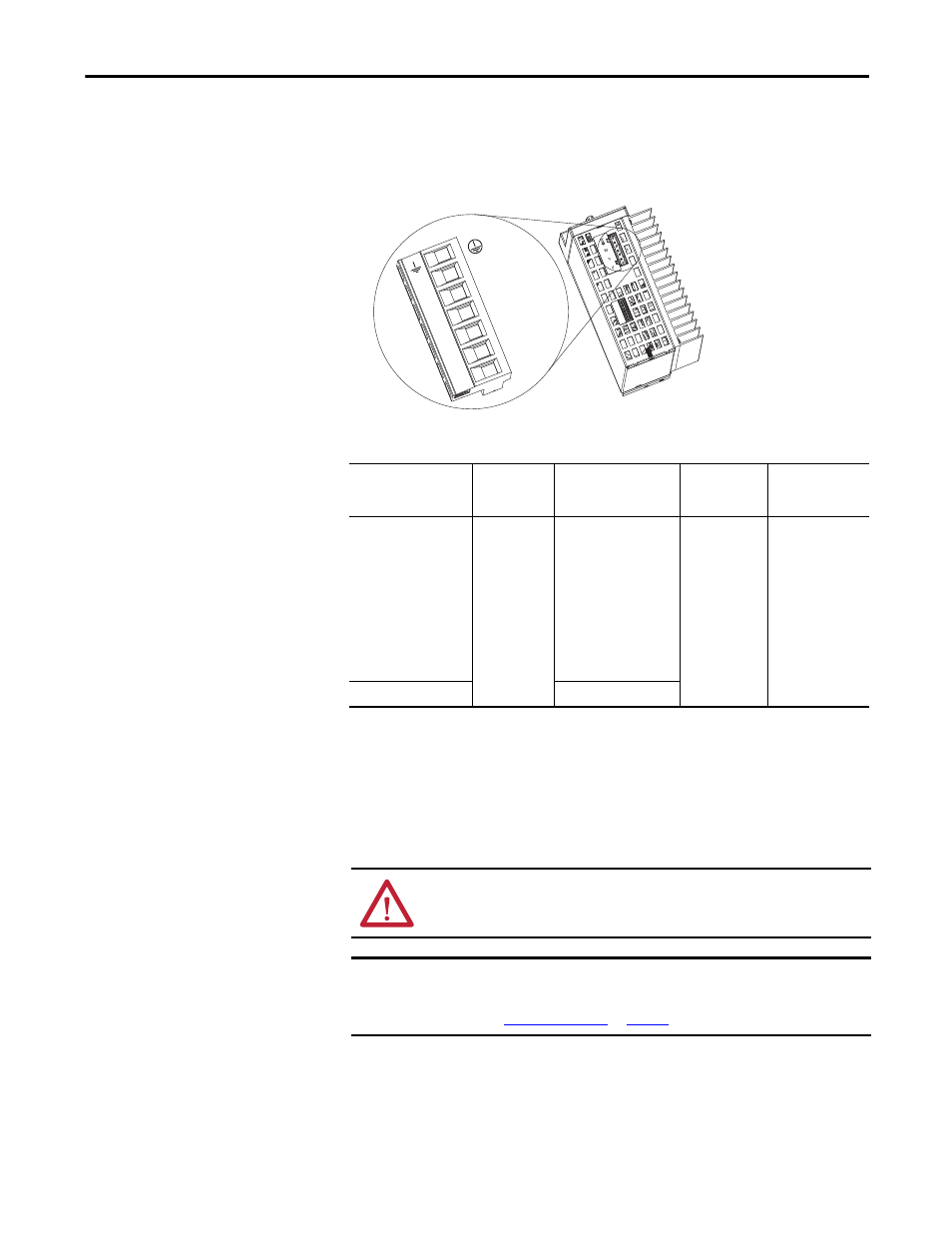

Wire the Motor Power (MP) Connector

Connections to the motor power (MP) connector include rotary motors and
rotary motor driven actuators.

Table 26 - Motor Power (MP) Termination Specifications

Cable Shield Terminations

Factory-supplied motor power cables for MP-Series and TL-Series motors and
actuator are shielded. The braided cable shield must terminate near the drive
during installation. Remove small portion of the cable jacket to expose the shield
braid and clamp the exposed shield to the panel.

W

V

U

PE

W

V

U

Kinetix 350 Drive

Bottom View

Drive Cat. No.

Terminals

Recommended

Wire Size

mm

2

(AWG)

Strip Length

mm (in.)

Torque Value

N•m (lb•in)

2097-V31PR0-LM

2097-V31PR2-LM

2097-V32PR0-LM

2097-V32PR2-LM

2097-V32PR4-LM

2097-V33PR1-LM

2097-V33PR3-LM

2097-V33PR5-LM

2097-V34PR3-LM

2097-V34PR5-LM

2097-V34PR6-LM

PE

W

V

U

2.5 (14)

7 (0.28)

0.5 (4.5)

2097-V33PR6-LM

4.0 (12)

ATTENTION: To avoid hazard of electrical shock, ensure shielded power cables
are grounded at a minimum of one point for safety.

IMPORTANT

For TL-Series motors, also connect the 152 mm (6.0 in.) termination wire to the
closest earth ground.

Refer to

Pigtail Terminations

on

page 66

for more information.
