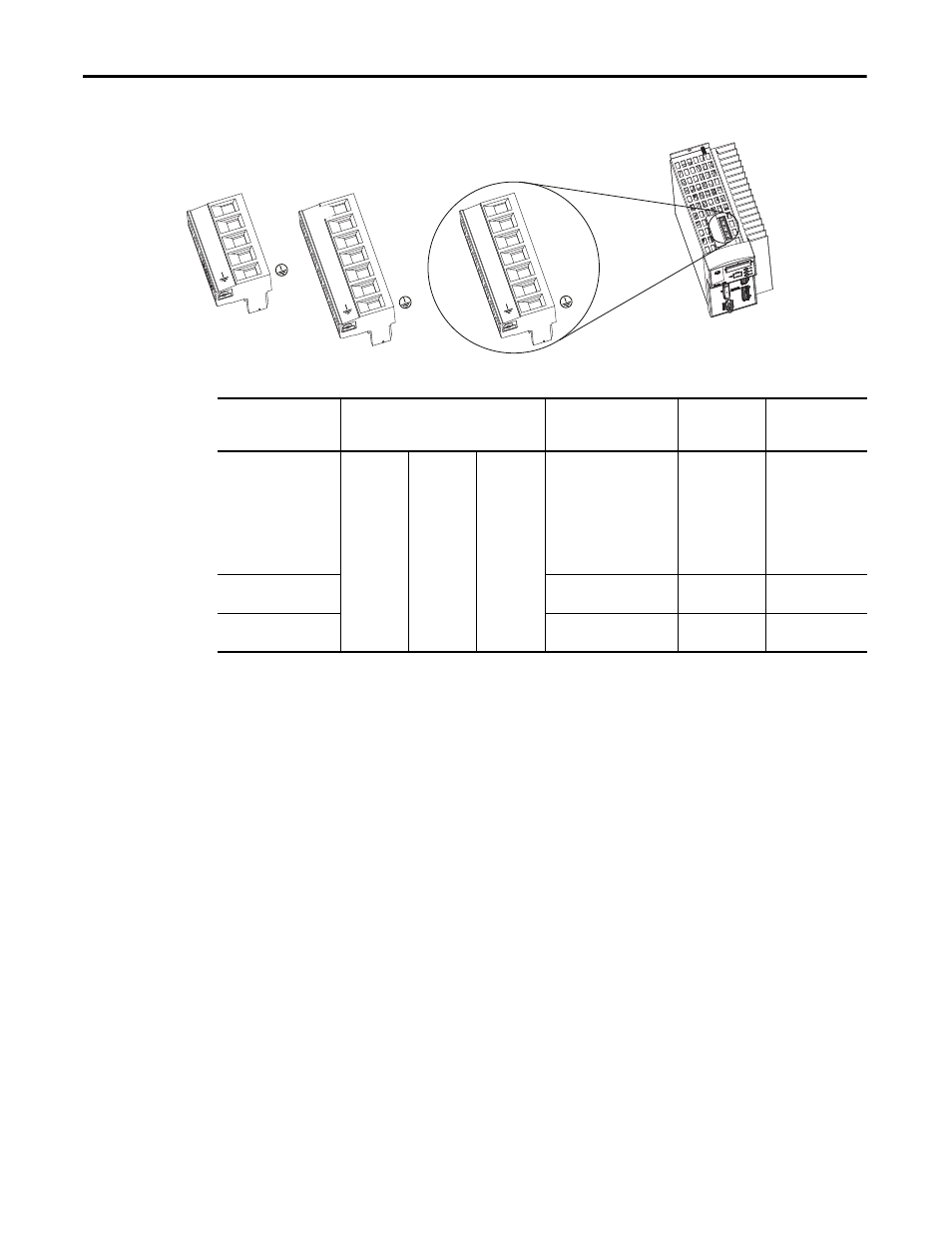

Wire the Input Power (IPD) Connector

Table 25 - Input Power (IPD) Connector

L3

L2

L1

PE

L3

L2

L1

L2/N

L1

N

PE

L2/N

L1

N

L2

L1

PE

L2

L1

Kinetix 350 Drive

Top View

Drive Cat. No.

Terminals

Recommended

Wire Size

mm

2

(AWG)

Strip Length

mm (in.)

Torque Value

N•m (lb•in)

2097-V31PR0-LM

2097-V32PR0-LM

2097-V32PR2-LM

2097-V33PR1-LM

2097-V33PR3-LM

2097-V34PR3-LM

2097-V34PR5-LM

2097-V34PR6-LM

L3

L2

L1

PE

(1)

L2/N

L1

N

PE

(2)

L2

L1

PE

(3)

2.5 (14)

7 (0.28)

0.5 (4.5)

2097-V32PR4-LM

2097-V33PR5-LM

4.0 (12)

7 (0.28)

0.5 (4.5)

2097-V31PR2-LM

2097-V33PR6-LM

6.0 (10)

7 (0.28)

0.56…0.79
(5.0…7.0)

(1) Applies to 2097-V33PRx-LM, and 2097-V34PRx-LM drive modules.
(2) Applies to 2097-V31PRx-LM drive modules.
(3) Applies to 2097-V32PRx-LM drive modules.
