56

Rockwell Automation Publication 2097-UM002C-EN-P - December 2013

Chapter 4 Connect the Kinetix 350 Drive System

This example illustrates grounded three-phase power wired to single-phase
Kinetix 350 drives when phase-to-phase voltage exceeds drive specifications.

A neutral must be connected when single-phase drives are attached to a three-
phase isolating transformer secondary. It is not necessary that all three-phases be
loaded with drives, but each drive must have its power return via the neutral
connection.

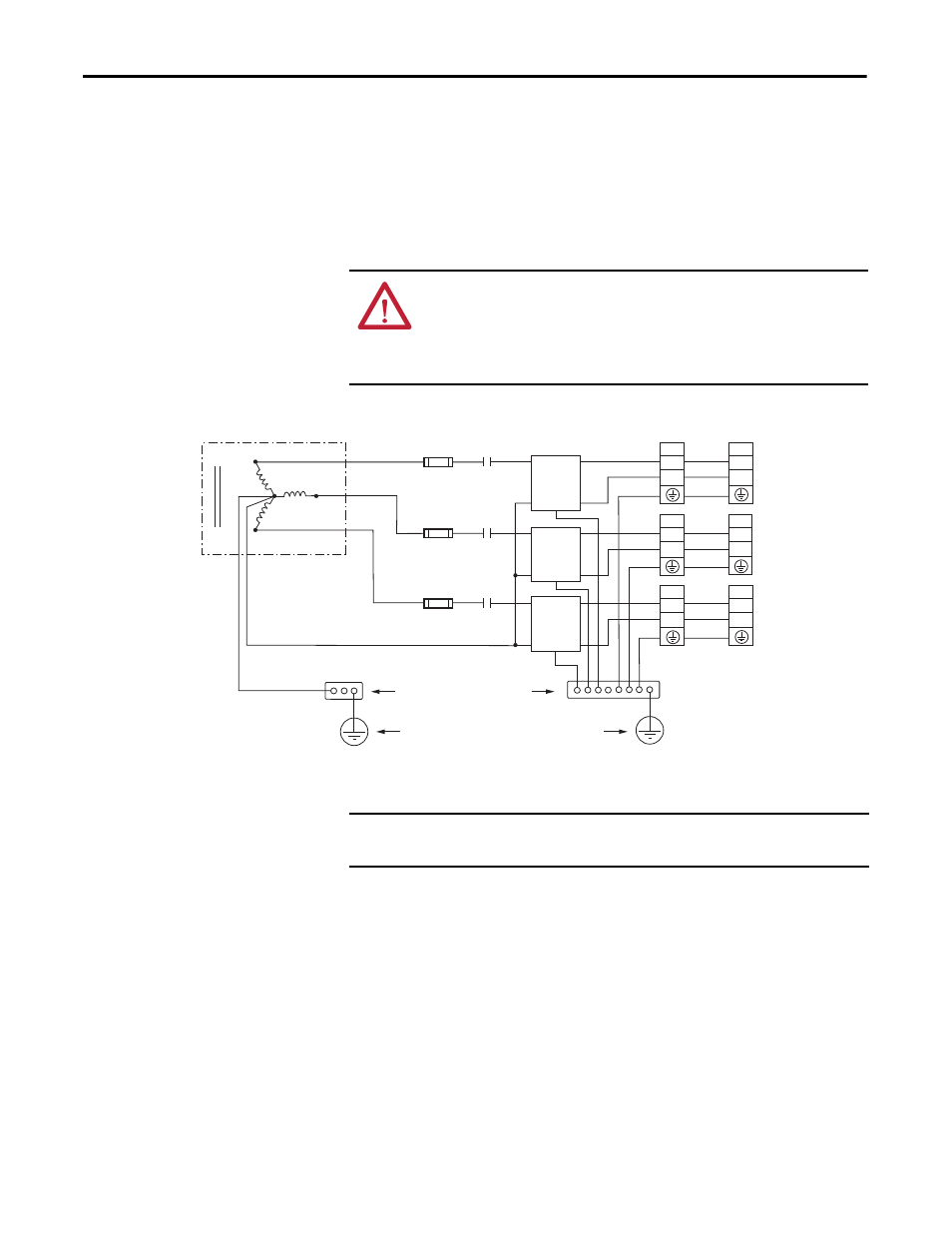

Figure 31 - Single-phase Amplifiers (one AC line filter per drive)

Feeder and branch short circuit protection is not illustrated.

ATTENTION: Failure to connect the neutral can result in supply voltage swings
at the individual drives. This occurs when the neutral point moves vectorially as
a result of load variations normally experienced by the individual drives. The
supply voltage swing can cause undervoltage and overvoltage trips on the
drives, and the drive can be damaged if the overvoltage limit is exceeded.

L1

L2

L3

L1

L2

L1

L2

L1

L2

IPD

L1

N

IPD

L1

N

IPD

L1

N

L1

L2

L1

L2

L1

L2

E

E

E

IPD

L1

L2

IPD

L1

L2

IPD

L1

L2

Bonded Cabinet Ground Bus

Transformer (WYE) Secondary

Ground Grid or Power Distribution Ground

AC Line

Filter

AC Line

Filter

AC Line

Filter

Kinetix 350 Drives

(System A)

Single-phase AC Input

Grounded

Neutral

Grounded Neutral

Kinetix 350 Drives

(System A)

Single-phase AC Input

Kinetix 350 Drives

(System A)

Single-phase AC Input

M1

Contactor

Input Fusing

2097-V31PRx-LM

2097-V33PRx-LM

IMPORTANT

Providing an AC line filter for each drive is the preferred configuration and
required for CE compliance.
