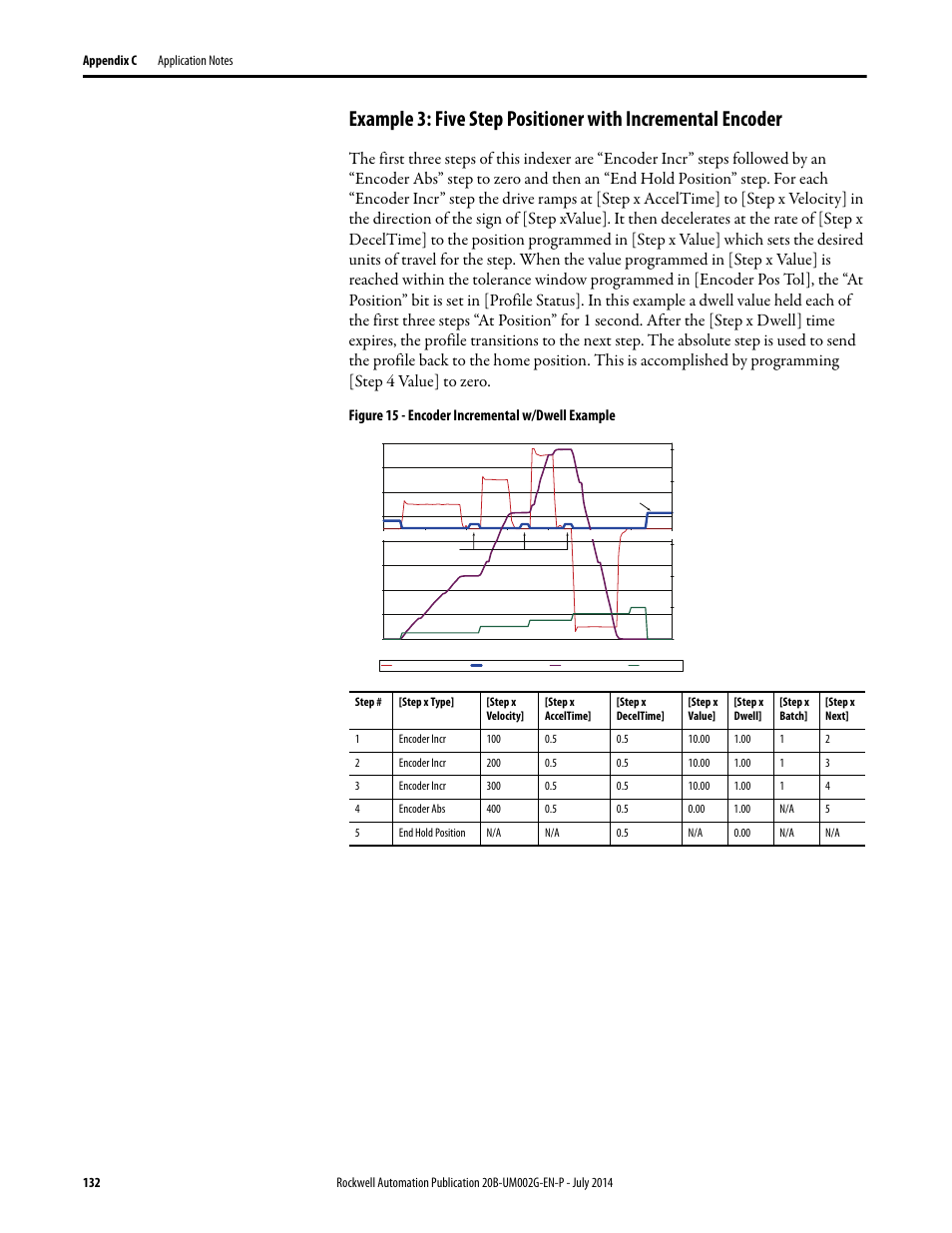

Figure 15 - encoder incremental w/dwell example – Rockwell Automation 20B PowerFlex 700 AC Drives Vector Control (v4.001 and up) User Manual
Page 132
