Homing routine, Encoder incremental (encoder incr), End hold position – Rockwell Automation 20B PowerFlex 700 AC Drives Vector Control (v4.001 and up) User Manual

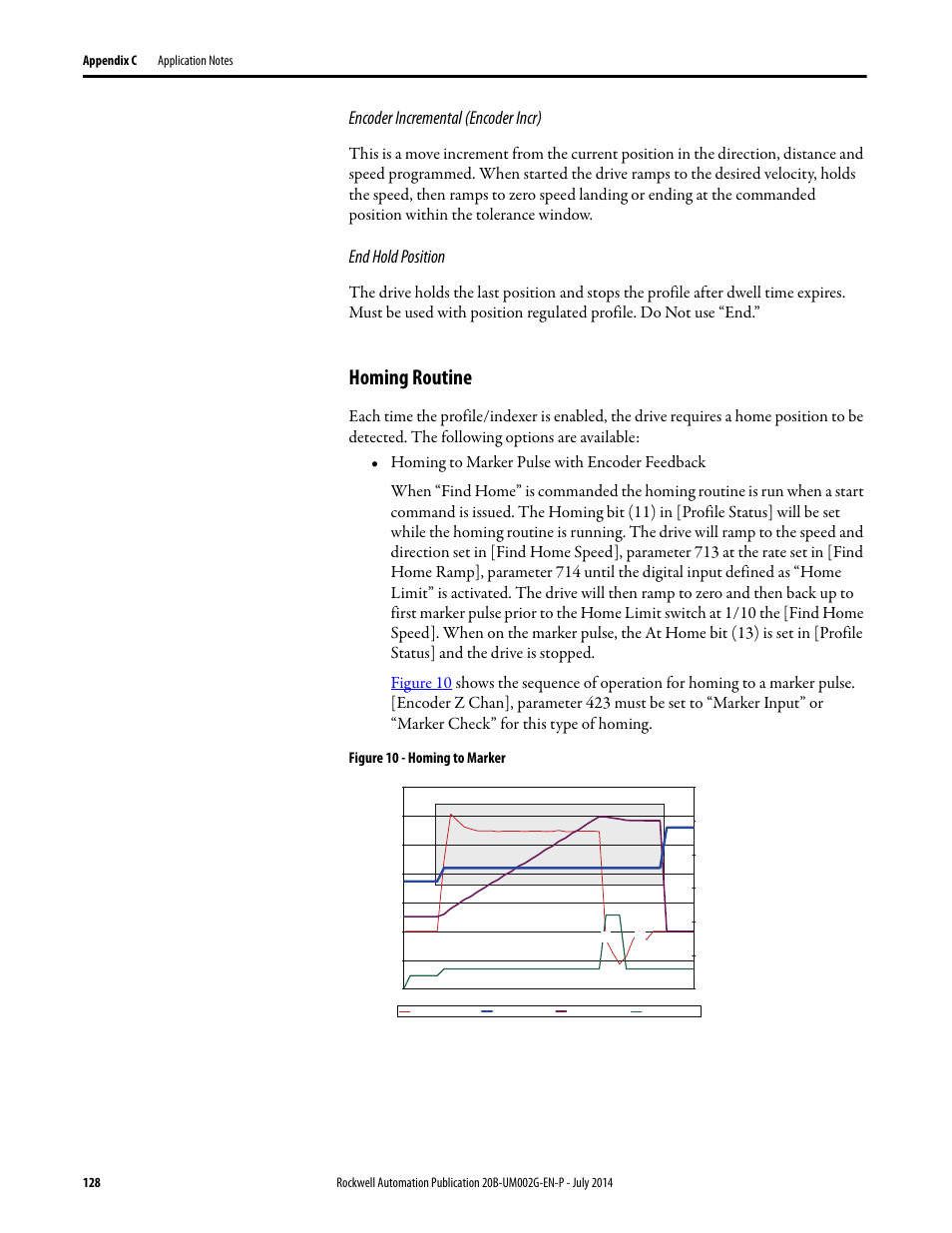

Page 128: Figure 10 - homing to marker
