Figure 8-5 source socket connector pin out -8, Assignments -8 – INFICON MDC-260 Thin Film Deposition Controller User Manual
Page 108
MDC-260 DEPOSITION CONTROLLER
CONTROLLER INSTALLATION
8-8

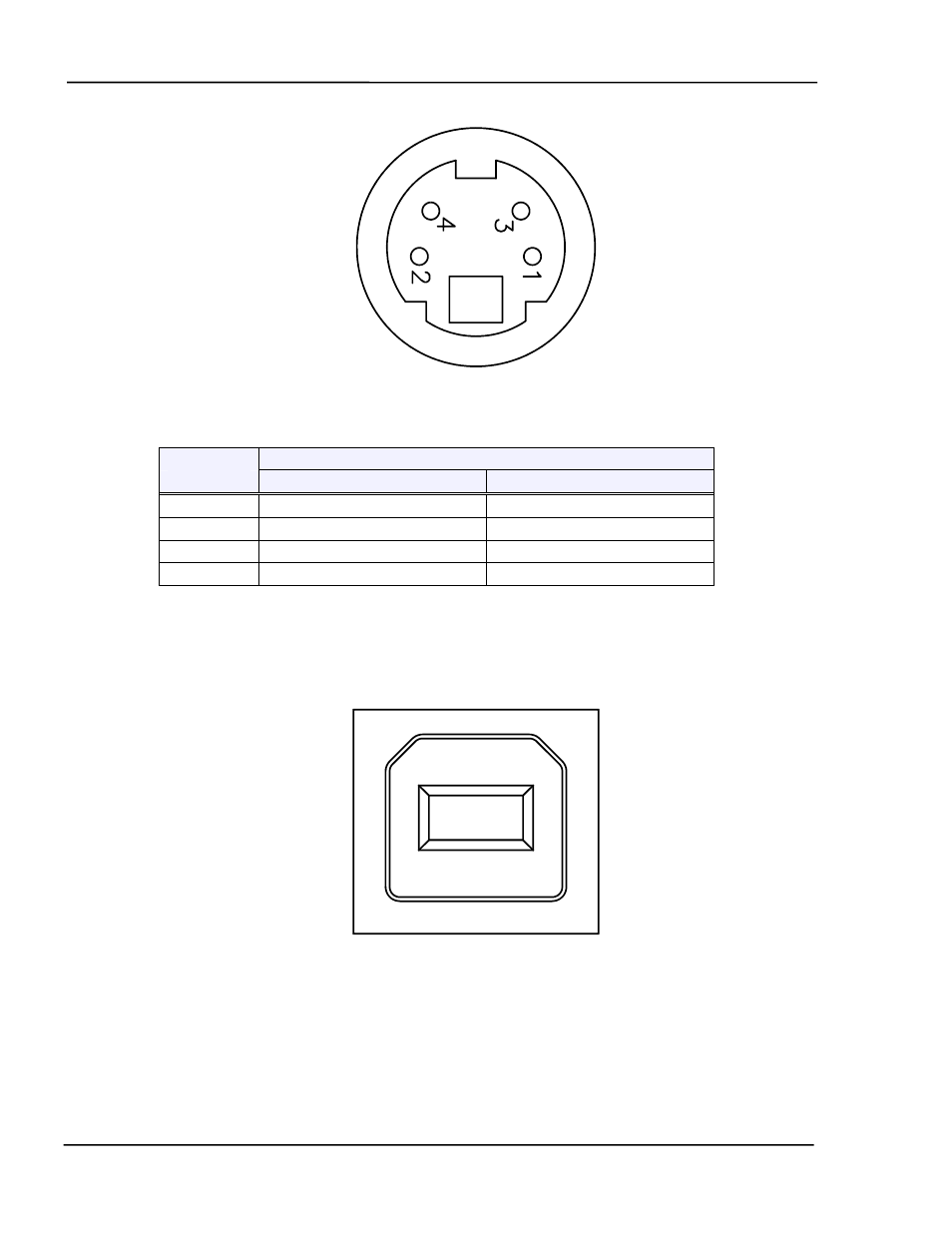

Figure 8-5 Source Socket Connector Pin Out
Pin
Signal
Number
Source-Sensor Bd #1
Source-Sensor Bd #2
1
Source #2 Control Voltage
Source #4 Control Voltage
2
Source #2 Return
Source #4 Return
3
Source #1 Return
Source #3 Return
4
Source #1 Control Voltage
Source #3 Control Voltage
Table 8-1 Source Control System Interface Connector Pin Assignments
Figure 8-6 USB “B” Type Socket Front and Rear Panel Connector
