SkyTrak 6036 Parts Manual - Manual (Page 42)

6036
Item
No.
Part Number Qty. Description
2.11

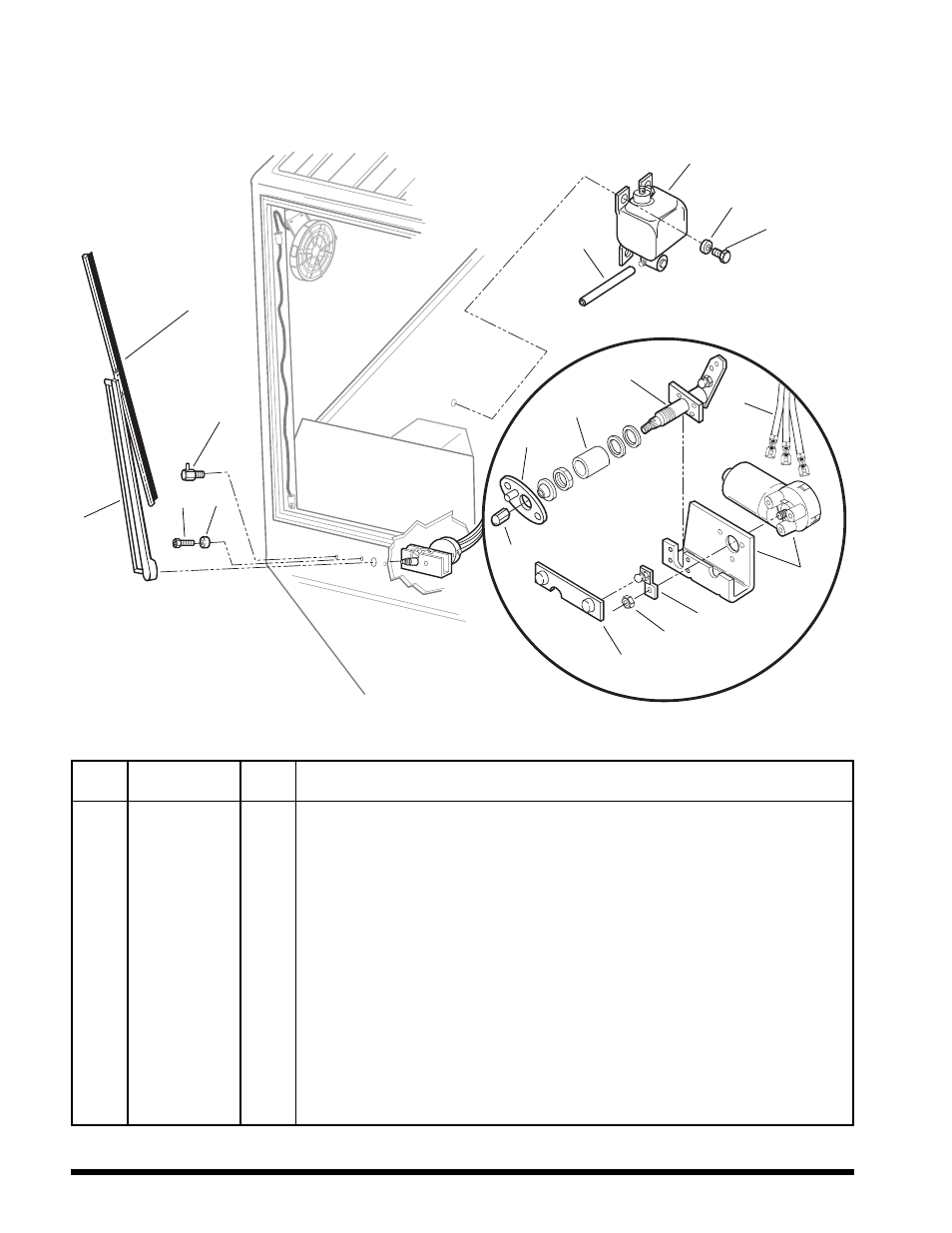

WINDSHIELD WIPER
(OPTIONAL CLOSED CAB ONLY)
1 8866220 1 Blade, Wiper, 22" (S/N 8L0327 & Before)
8866381 1 Blade, Wiper, 22" (S/N 8L0328 & After)
2 8033101 1 Nozzle, Washer
3 8033110 2 Screw, 1/4-28 x 3/4
4 8307109 2 Washer, Flat, 1/4
5 8033106 1 Arm, Wiper, 22" (S/N 8L0327 & Before)
8866382 1 Arm, Wiper, 22" (S/N 8L0328 & After)
6 8866492 1 Shaft and Pivot Assembly
7 8033107 1 Adapter, Panto
8 8033102 1 Motor Assembly, Wiper (S/N 8L0327 & Before)
7112511 1 Motor Assembly, Wiper (S/N 8L0328 & After)
9 8033103 1 Cable, Wiper
10 8866437 1 Arm, Drive
11 8305006 1 Nut, Hex, 5/16-18
12 8033104 1 Link, Connection
13 8033065 1 Washer Reservoir Assembly
14 8033075 1 Hose, Washer, 120" (Cut to fit)
15 8303776 3 Bolt, Hex Hd, 1/4-20 x 1/2
16 8307109 3 Washer, Flat,1/4
17 8033105 1 Spacer
1
2
3 4
5
6
7
17
6
12
11
10
8
14
9
15
16
13
PA0132
Revised 11/97
