Slave cylinder 6.6 – SkyTrak 6036 Parts Manual User Manual
Page 208
6036

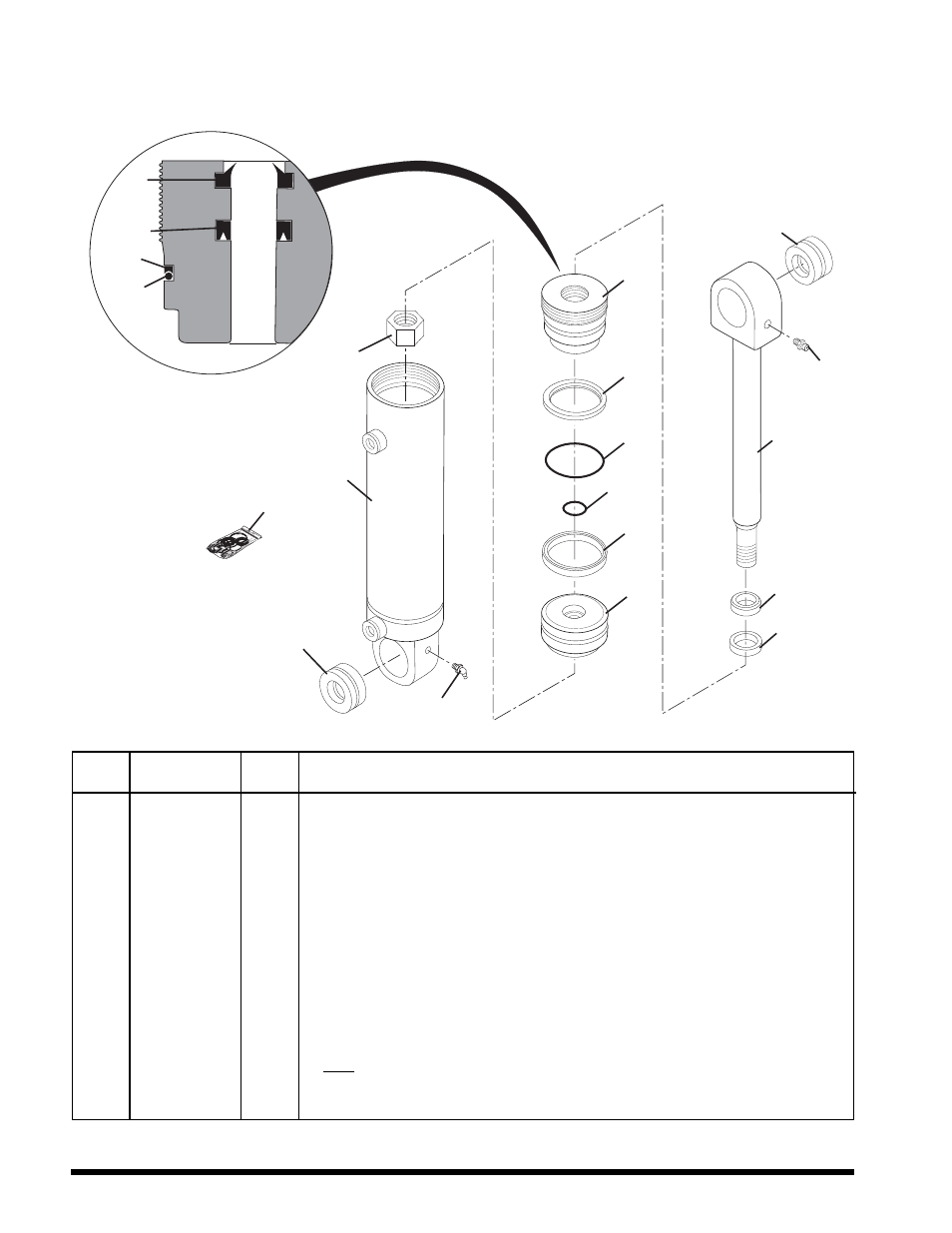

SLAVE CYLINDER
6.6
11
10
5
6
3
2
12
14
4
5
6
7
8
9
12
13
1
11
10
15
2716193
1
Cylinder, Slave (Includes Items 1 thru 12)
1
8032706
1
Rod
2
NSS
1
Tube Cylinder
3
8032702
1
Locknut
4
8032704
1
Gland
5
See Kits
1
Ring, Backup
6
See Kits
1
O-Ring
7
See Kits
1
O-Ring
8
See Kits
1
Seal, Piston
9
8032705
1
Piston
10
See Kits
1
Seal, Rod
11
See Kits
1
Wiper
12
8065640
2
Bushing
13
8520013
1
Fitting, Grease, 1/8 NPT
14
8520021
1
Fitting, Grease, 90°
KITS
15
8032707
1
Seal Kit, Slave Cylinder (Includes Items 5, 6, 7, 8, 10 & 11)
Part Number
Qty.
Description
Item
No.
PA0603
PF0760
Revised 9/94
