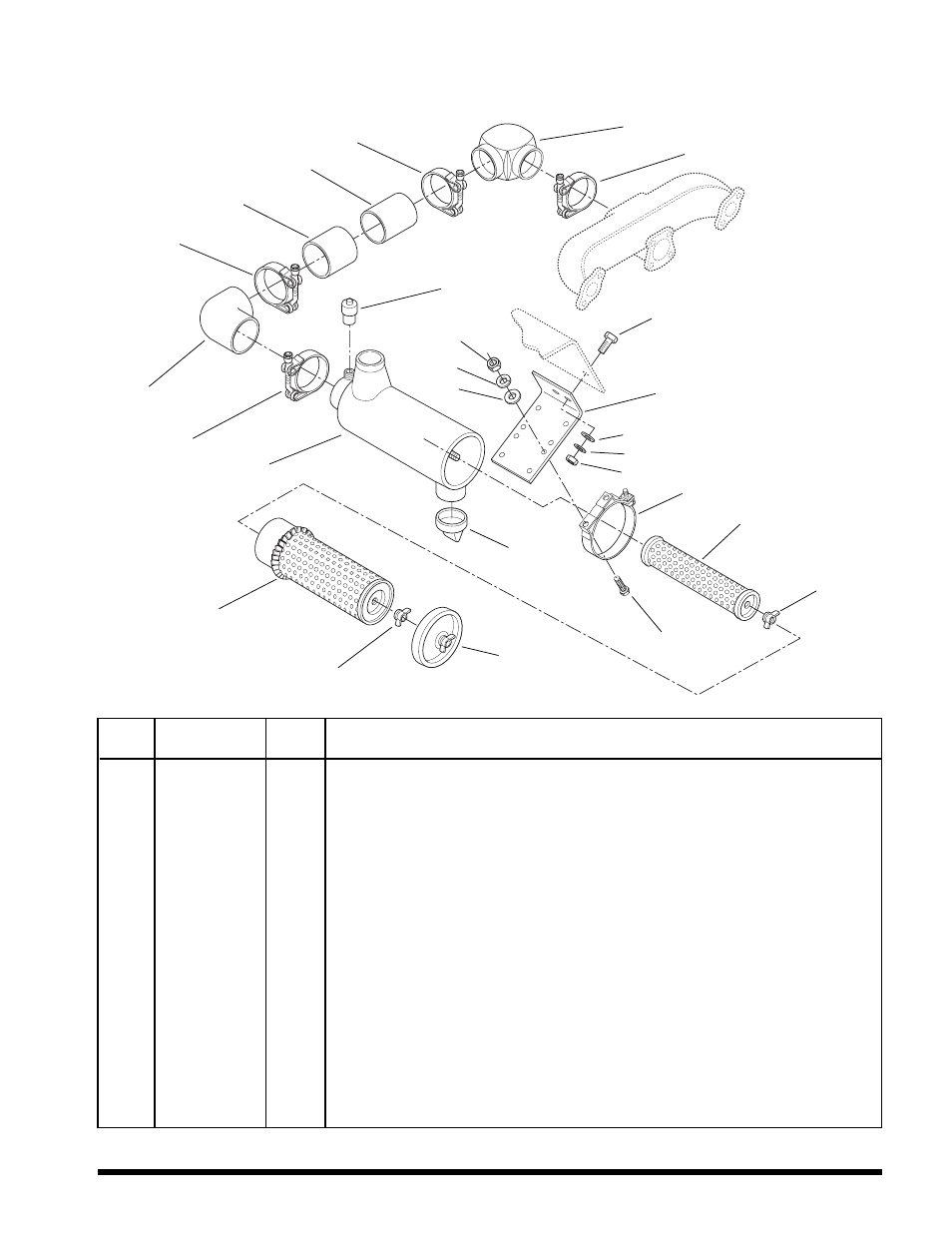

AIR CLEANER
(PERKINS 4.236 - NATURAL - S/N 0F1186 AND AFTER)
Revised 9/94
Part Number
Qty.
Description
Item
No.
1
8273017
1
Air Cleaner Assembly (Includes Items 2 thru 6)
2
8032764
1
Valve, Vacuator
3
8273267
1
Element, Primary
4
8273271
1
Element, Safety
5
8273272
2
Nut Assembly
6
8032763
1
Cover, End
7
8273241
1
Indicator, Service, 25 inch
8
8273266
2
Band, Mounting, Air Cleaner
9
8303697
4
Screw, Cap, Hex Hd, 5/16-18 x 3/4
10
8307203
6
Washer, Flat, 5/16
11
8307004
6
Lockwasher, 5/16
12
8305006
6
Nut, Hex, 5/16-18
13
8405305
2
Clamp, Hose, 3.38 to 3.69 inch
14
8273119
1
Elbow, 3 x 90°
15
8402020-0025
1
Hose, 2-1/2 ID x 3.00 OD x 2-1/2
16
7080981
1
Tube, Air Intake
17
8405212
1
Clamp, Hose, 2.69 to 3.00 inch
18
8273269
1
Elbow, Reducing 90°
19
7091902
1
Bracket, Air Cleaner
20
8303739
2
Screw, Hex Hd Cap, 5/16-18 x 1-1/4
21
8405211
1
Clamp, Hose, 2.50 to 2.81 inch
