Side tilt carriage cylinder – SkyTrak 6036 Parts Manual User Manual
Page 229
6036
9
8 10 11 4
14
5
9
8
3
13
12
4
11
10
2
14
7
SEE
KITS
1
6
15
16

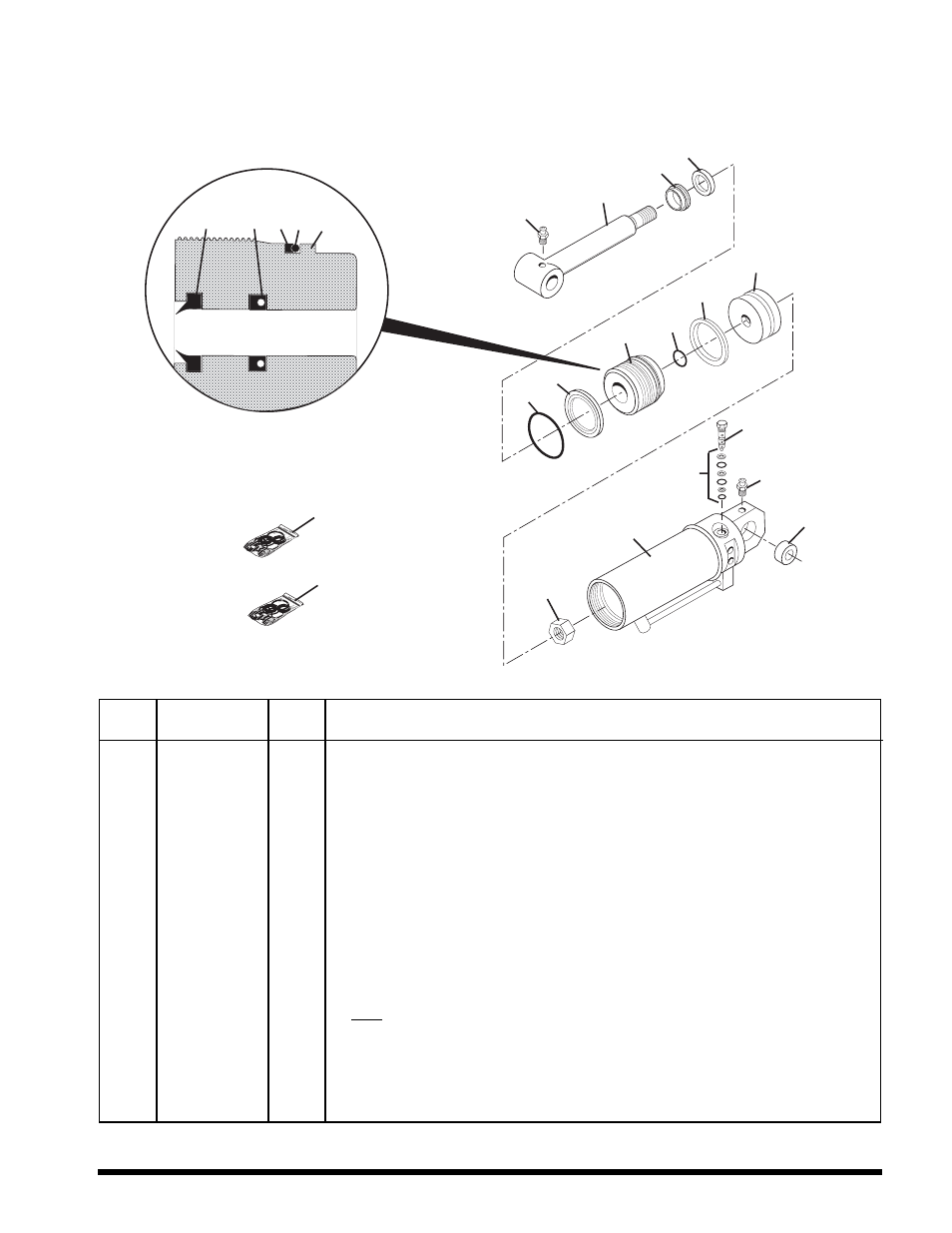

SIDE TILT CARRIAGE CYLINDER
2711613
1
Side Tilt Carriage Cylinder (Includes Items 1 thru 13)
1
NSS
1
Barrel, Cylinder
2
8902511
2
Valve, Check
3
8205545
1
Piston
4
8205546
1
Gland
5
8205547
1
Rod
6
8205548
1
Nut, Piston
7
8205514
1
Bearing, Self-Aligning
8
See Kits
1
Seal, Rod
9
See Kits
1
Wiper
10
See Kits
1
O-Ring
11
See Kits
1
Ring, Backup
12
See Kits
1
O-Ring
13
See Kits
1
Seal, Piston
14
8520013
2
Fitting, Grease
KITS
15
8205661
1
Seal Kit, Side Tilt Carriage Cylinder (Includes Items 8 thru 13)
16
8205655
1
Seal Kit, Check Valve (Includes 3 O-Rings & 3 Backup Rings)
Part Number
Qty.
Description
Item
No.
6.13
PA0613
PA0673
PF0760
Revised 11/97
