SkyTrak 6036 Parts Manual - Manual (Page 101)

6036

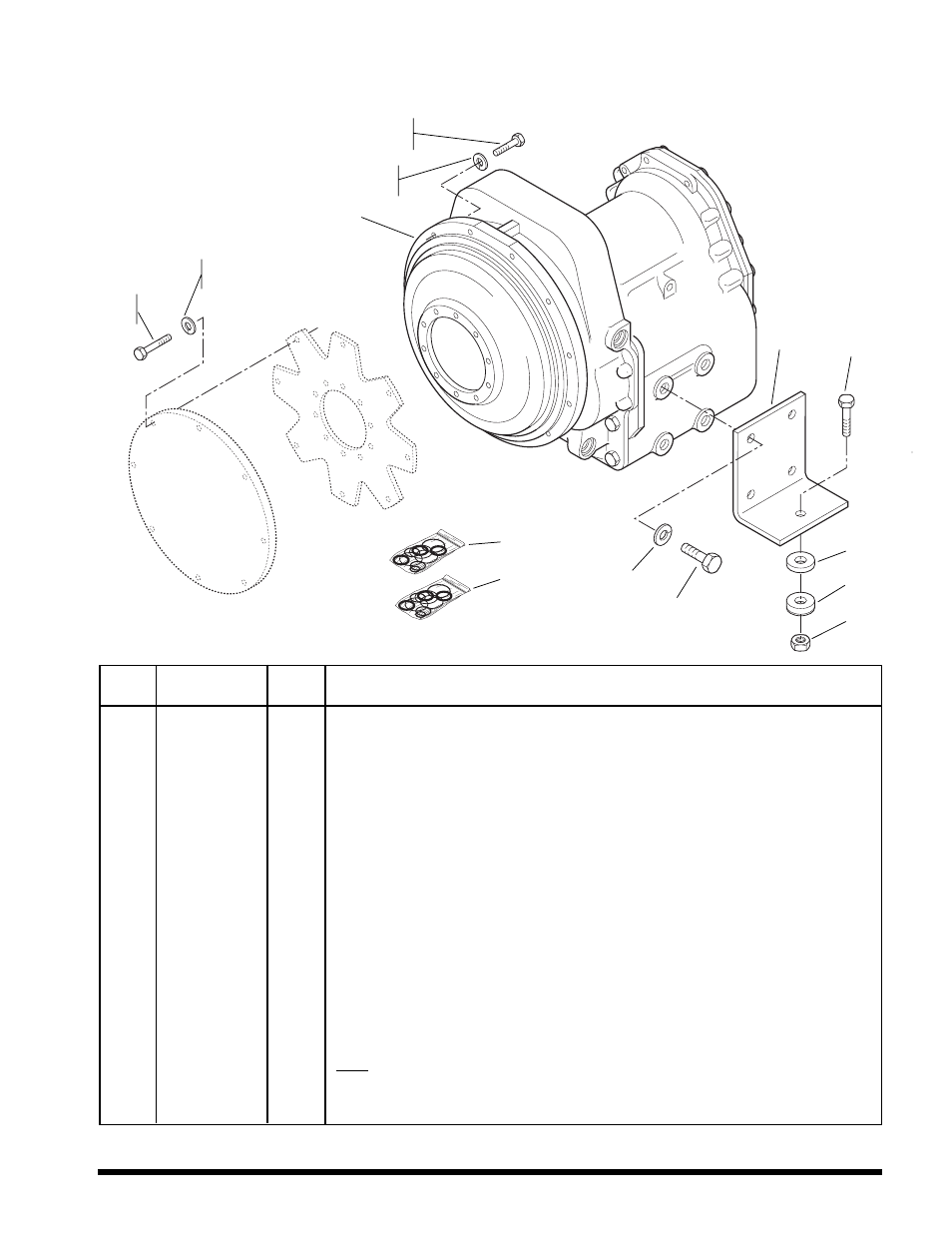

TRANSMISSION MOUNTING
(S/N 9H0794 AND AFTER)
Revised 11/97
3.20
PA1490
1 8841015 1 Transmission (For Perkins & Cummins Engines S/N 9H0794 thru 0E1179)
8841023 1 Transmission (For Perkins & Cummins Engines S/N 0E1180 and After)
2 7090942 2 Mount, Transmission
3 8303707 2 Screw, Hex Hd Cap, 5/8 NC x 3.00 Gr 5
4 7088511 2 Washer, Rebound
5 8278009 2 Mount, Vibration
6 8305643 2 Locknut, 5/8-NC ESNA
7 8303664 8 Screw, Hex Hd Cap, 3/4-10 x 1.5 Gr 5
8 8307010 8 Lockwasher, 3/4
ITEMS 9 THRU 11 - PERKINS ENGINES ONLY
9 8303621 11 Screw, Hex Hd Cap, 3/8 NC x 1.5 Gr 5
10 8307005 19 Lockwasher, 3/8
11 8303659 8 Screw, Hex Hd Cap, 3/8NF x 2.0 Gr 5
ITEMS 12 THRU 15 - CUMMINS ENGINES ONLY
12 8310038 8 Screw, Hex Hd Cap, 3/8 - 24 x 1.62 Gr
13 8303778 11 Screw, Hex Hd Cap, M10 - 1.5 x 1.5
14 8307005 8 Lockwasher 3/8
15 8307023 11 Lockwasher M10
KITS
16 8032958 1 Converter and Transmission Gasket and Sealing Kit
17 8032959 1 Converter Section Gasket and Sealing Kit
Part Number Qty. Description
Item
No.
PF0760
9
13
10
15
1
10
14
11
12
2
3
8
7
4
5
6
16
17
