6036
6.9.1

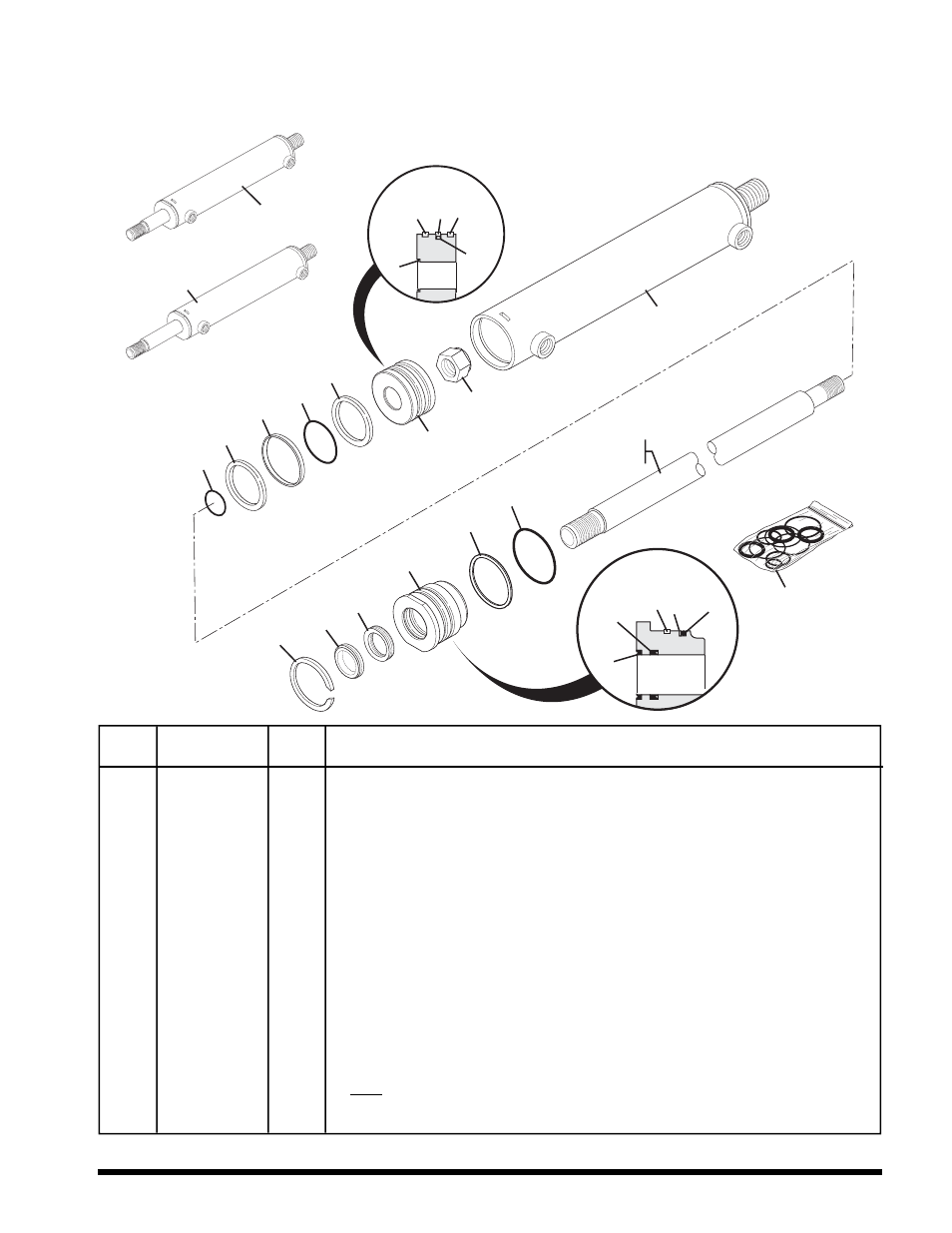

STEERING CYLINDER
(S/N 3102 & AFTER)
1A
1
10
13 11 13
14
10
13
11
14
13
3
6
2
RETRACT PORT
TORQUE TO
160 LBS-FT
12
7
8
5
15
9
4
4A
7
8
12 15
9
16
1 8034685 2 Steering Cylinder - Right Front & Left Rear
1A 8034686 2 Steering Cylinder - Left Front & Right Rear
* Note: Quantites Listed Below Are For 1 Cylinder Only
2 NSS 1 Barrel Assembly
3 8034827 1 Piston
4 8034825 1 Rod - 17.17" Long
4A 8034826 1 Rod - 16.17" Long
5 8034828 1 Gland
6 8034824 1 Locknut
7 See Kit 1 Wiper, Rod
8 See Kit 1 Seal, U-Cup
9 See Kit 1 O-Ring
10 See Kit 1 O-Ring
11 See Kit 1 Seal, Piston
12 See Kit 1 Wire Retainer
13 See Kit 2 Wear Ring
14 See Kit 1 Expander
15 See Kit 1 Backup Ring
KITS
16 8034690 1 Seal Kit, Steering Cylinder (Includes Items 7 thru 15)
Part Number Qty. Description
Item
No.
PA1890
PF0760
Revised 9/94
