SkyTrak 6036 Parts Manual - Manual (Page 233)

6036
1
EXTEND
PORT
X
PORT
RETRACT
PORT
13
SEE
KITS
11
TORQUE TO
30-35 LB-FT
(40.7-47.5 Nm)
12
SEE
KITS
2
3
4
5
6
7
8
9
10
14
15
16
APPLY LOCKTITE #271
TO INSIDE THREADS AND
TORQUE TO 250 LB-FT (339, 0 Nm)
6.15

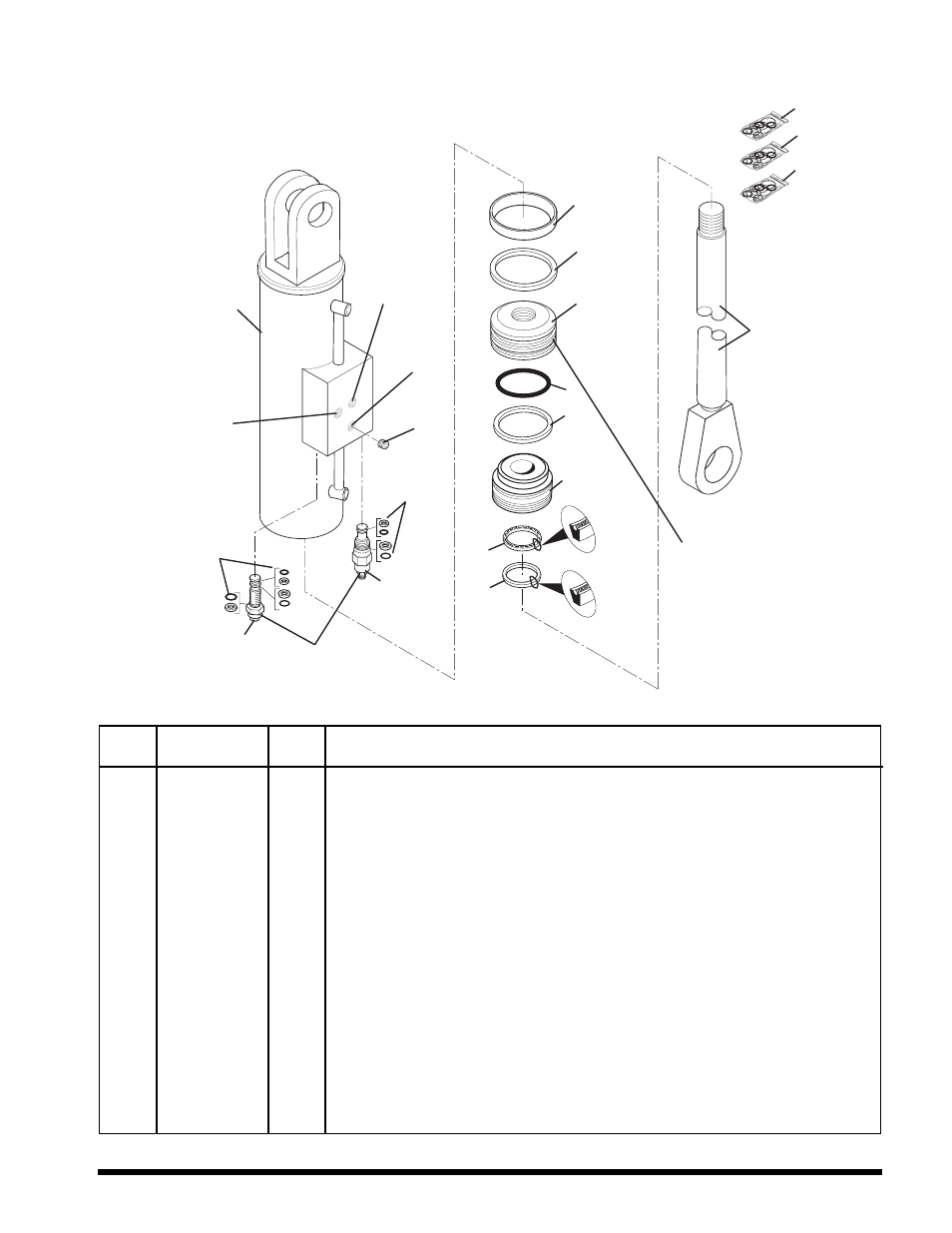

SWING CARRIAGE CYLINDER
2713363 1 Swing Carriage Cylinder (Includes Items 1 thru 13)
1 NSS 1 Tube, Cylinder
2 See Kits 1 Wear Ring
3 See Kits 1 Seal, Piston
4 8033783 1 Piston
5 See Kits 1 O-Ring
6 See Kits 1 Backup Ring
7 8033784 1 Gland
8 See Kits 1 Seal, Rod
9 See Kits 1 Wiper
10 8033785 1 Rod
11 8033786 1 Valve, Counterbalance Cartridge - 3000 psi (See Kits)
12 8092842 1 Valve, Direct Acting Relief - 2000 psi (See Kits)
13 8033788 1 Orifice, 0.038 Dia.
KITS
14 8033789 1 Seal Kit, Swing Carriage Cylinder (Includes Items 2, 3, 5, 6, 8 & 9)
15 8205655 1 Seal Kit, Ctrbal. Valve (Includes 3 O-Rings & 3 Backup Rings)
16 8033790 1 Seal Kit, Relief Valve (Includes 3 O-Rings & 3 Backup Rings)
Part Number Qty. Description
Item
No.
PH0441
PF0760
Revised 11/97
