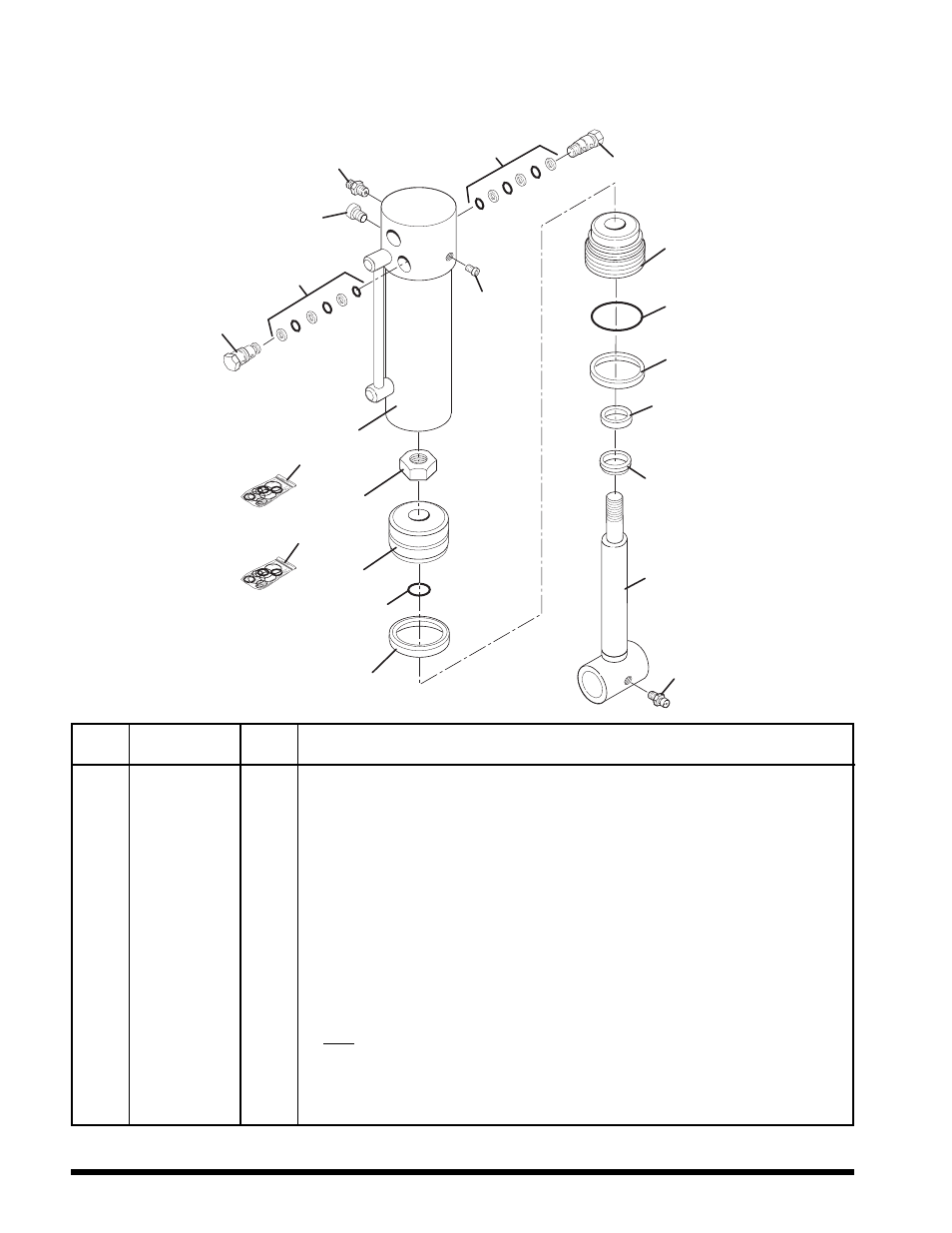

FRAME TILT CYLINDER
6.8
SEE
KITS
1
14
2
2
1
SEE
KITS
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2711673
1
Cylinder, Frame Tilt (Includes Items 1 thru 13)
1
8902511
2
Check Valve (See Kits)
2
8032712
2
Plug
3
NSS
1
Tube, Cylinder
4
8032726
1
Nut
5
8032727
1
Piston
6
See Kits
1
O-Ring
7
See Kits
1
Seal, Piston
8
8032728
1
Gland
9
See Kits
1
O-Ring
10
See Kits
1
Ring, Backup
11
See Kits
1
Seal, Rod
12
See Kits
1
Wiper
13
8032729
1
Rod
14
8520013
2
Fitting, Grease, 1/8 NPT
KITS
15
8032730
1
Seal Kit, Frame Tilt Cylinder (Includes Items 6, 7 & 9 thru 12)
16
8205655
1
Seal Kit, Check Valve (Includes 3 O-Rings & 3 Backup Rings)
