Watlow EZ-ZONE ® RMH Module • 31 • Chapter 2 Install and Wire
Warning:
ç
Use National Electric (NEC) or other
country-specific standard wiring and
safety practices when wiring and
connecting this controller to a power
source and to electrical sensors or pe-
ripheral devices. Failure to do so may
result in damage to equipment and
property, and/or injury or loss of life.
Note:
Maximum wire size termination and
torque rating:
• 0.0507 to 3.30 mm2 (30 to 12 AWG)
single-wire termination or two 1.31
mm2 (16 AWG)
• 0.8 Nm (7.0 in-lb.) torque
Note:
Adjacent terminals may be labeled
differently, depending on the model
number.
Note:
To prevent damage to the controller,
do not connect wires to unused ter-
minals.
Note:
Maintain electrical isolation between
digital input-outputs, switched dc/open
collector outputs and process outputs
to prevent ground loops.
Warning:
ç
Explosion Hazard – Substitution of
component may impair suitability for
CLASS I, DIVISION 2.
Warning:
ç
Explosion Hazard - Do not disconnect
while the circuit is live or unless the
area is known to be free of ignitable
concentrations of flammable sub-
stances.
D E
A B
D E
A B
S M
1 9
2 10
3 11
4 12
5 13
6 14
7 15
8 16
RM
1
EZ ZONE R
S
lo
t C
98 99 CF CD CE CZ CX CY
98 99 CF CD CE CZ CX CY
Use twisted pair wires such as Cat 5 cabling.
Do not route with power carrying conductors.
LINX
Model 485TB-2W
U
S
B
A(-)
A(-)
B(+)
B(+)
GND B B electronics &
TM U
USB Serial Conversion
0847-0326-0000

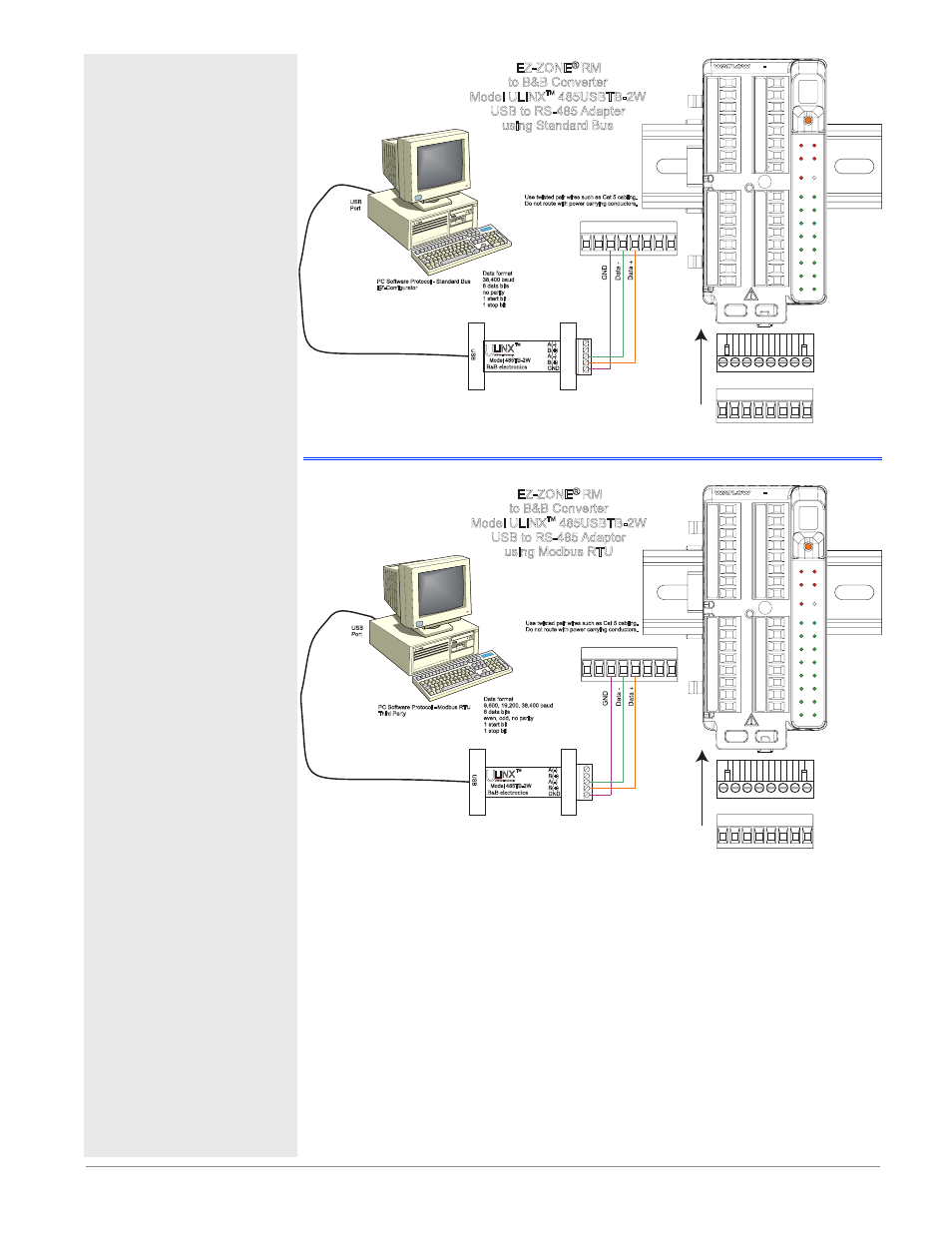

EZ-ZONE ® RM
to B&B Converter
Model ULINX 485USBTB-2W
USB to RS-485 Adapter
using Standard Bus
TM
USB
Port
Data format
38,400 baud
8 data bits
no parity
1 start bit
1 stop bit
PC Software Protocol - Standard Bus
EZ-Configurator
D E
A B
D E
A B
S M
1 9
2 10
3 11
4 12
5 13
6 14
7 15
8 16
RM
1
EZ ZONE R
S
lo
t C
98 99 CC CA CB CZ CX CY
98 99 CC CA CB CZ CX CY
Use twisted pair wires such as Cat 5 cabling.
Do not route with power carrying conductors.
LINX
Model 485TB-2W
U
S
B
A(-)
A(-)
B(+)
B(+)
GND B B electronics &
TM U
USB Serial Conversion
0847-0326-0000
EZ-ZONE ® RM
to B&B Converter
Model ULINX 485USBTB-2W
USB to RS-485 Adapter
using Modbus RTU
TM
USB
Port
Data format
9,600, 19,200, 38,400 baud
8 data bits
even, odd, no parity
1 start bit
1 stop bit
PC Software Protocol - Modbus RTU
Third Party
Note:
Do not leave a USB to EIA-485 converter connected to Standard Bus
without power (i.e., disconnecting the USB end from the computer
while leaving the converter connected on Standard Bus). Disturbance
on the Standard Bus may occur.
