Watlow EZ-ZONE ® RMH Module • 124 • Chapter 6 Features

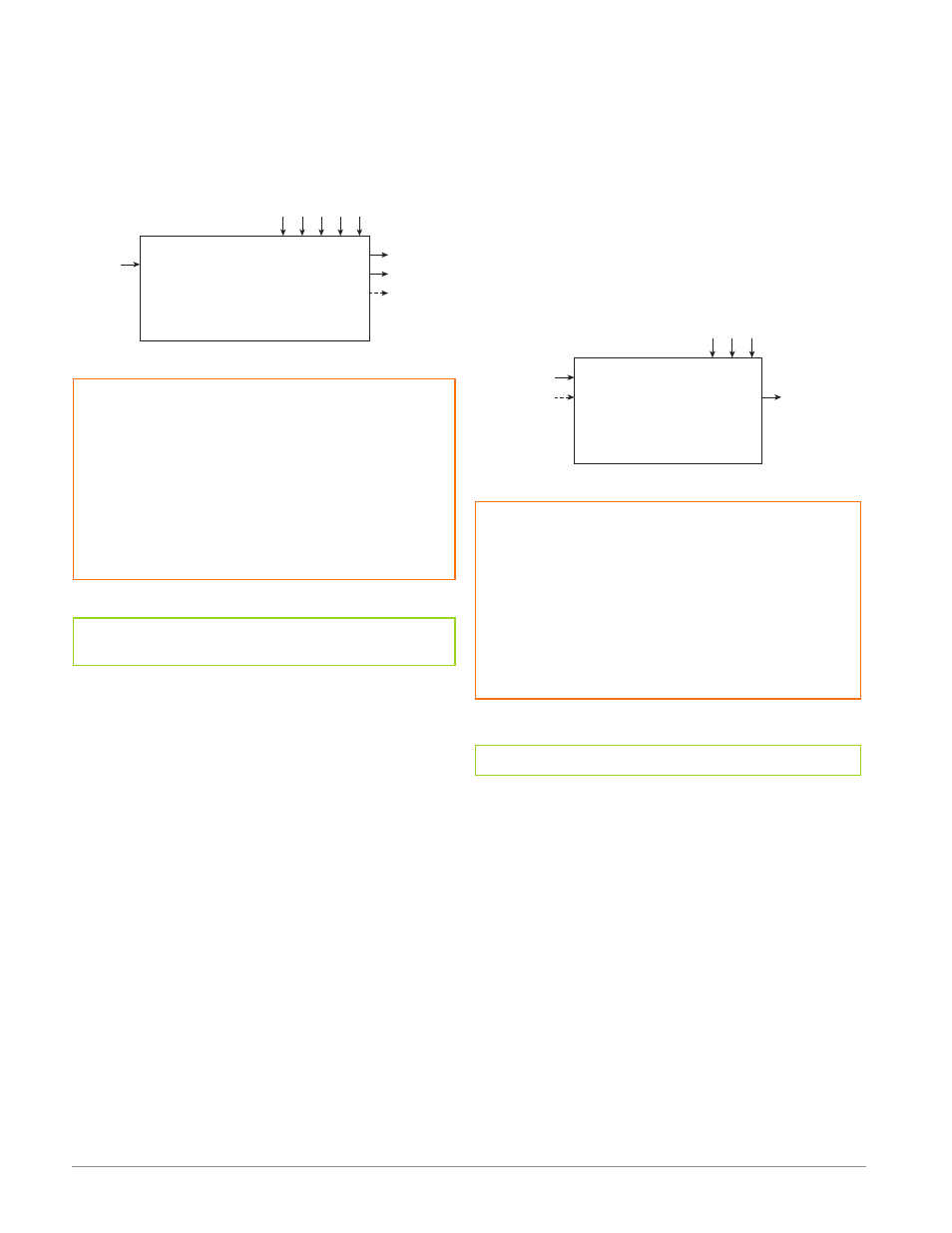

Digital Input/Output Function (cont.)
Output Value is determined by Source A and Digital Out-
put Function
Output Function
Output Function Instance
Source Zone A
Output Low
Pow
er Scale
Output
Tim
e Base
Output Control
Output H
igh P
ow
er Scale
Direction
[S2;A] Source A : 0 to 16 Zone
[do;S] Output State : On, Off
[o;Ct] Output Control : Fixed Time Base, Variable Time Base
[o;Lo] Output Low Power Scale : 0.0 to 100.0 %
[dir] Direction : Output
[o;hi] Output High Power Scale : 0.0 to 100.0 %
[o;tb] Output Time Base : 0.1 to 60.0 seconds
[Fi] Output Function Instance : 1 to 250
[di;S] Input State : On, Off
Output State
Digital I/O Value
Error
[dio]
[oper]
Digital I/O Menu
Operation Page
[Fn] Output Function : Off, Analog Input, Alarm, Cool Power, Heat Power,
Compare, Counter, Digital I/O, Profile Event Out A to H, Function Key,
Limit
Logic, Linearization, Math, Process Value, Special Function Output 1 to 4,
Timer, Variable,
[dio]
[SEt]
Digital I/O Menu
Setup Page
Digital
Instances 1 - 12 per RMH
Output
Digital Output Value : On, Off
An error, when read, can indicate any of the following:
None, Open, Shorted, Measurement Error, Bad Cal Data,
Ambient Error, RTD Error, Fail, Math Error, Not Sourced,
Stale
Action Function
The Action Function selected will execute when Source
Function A = ON and Active Level = High. Based on a
given input (Digital, Event output, Logic function, etc..),
the Action function can cause other functions to occur.
To name a few, starting and stopping a profile, silencing
alarms, turn control loops off and placing alarms in non-
alarm state.
Note:
Action Function selection is module type and part num-
ber dependant.
[Fi] Function Instance : 0 to 25
[SFn;A] Source Function A : None, Alarm, Compare, Counter, Digital
I/O, Profile Event Out A to H, Function Key, Limit, Logic, Timer,
Variable
[Leu] Active Level : High, Low
[Fn] Action Function : None,
s Control Loop Off and Alarms to Non-alarm State, Force Alarm to
Occur, Idle Set Point, Tune, Manual, Switch Control Loop Off, Remote
Set Point, TRU-TUNE+ Disable
User Set Restore, Alarm, Silence Alarms,
[Si;A] Source Instance A : 1 to 250
[S2;A] Source Zone A : 0 to 16
Action
Instances - 24 per RMH
Active Level
Function Instance
Action Function
Event Status
Source Function A
Source Instance A
Error
[E;iS] Event Status : On, Off
[ACt]
[SEt]
Action Menu
Setup Page
[ACt]
[oPEr]
Action Menu
Operation Page
Overview
