3. SCON-CA/CF

A



69


3.4

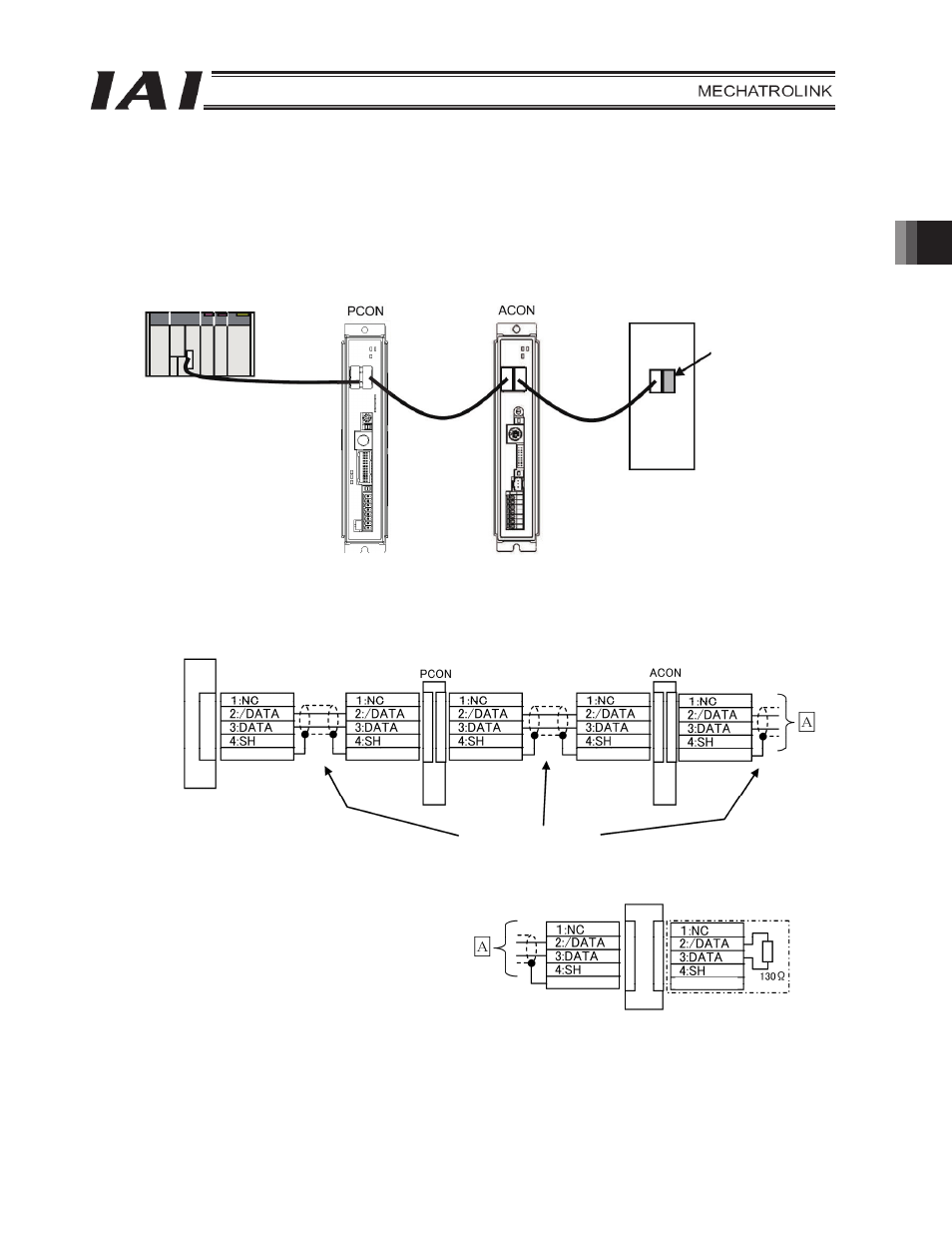

Example of Wiring

3.4.1 Wiring

Diagram

An example of wiring is as follows.

y Example of Wiring

















y Example of connection

























Slave

Terminator
(Terminal resistor)

Master unit

Connector shell

Connector shell

Connector shell

Connector shell

Connector shell

Connector shell

Connector shell

MECHATROLINK cables

y JEPMC-W6002

y JEPMC-W6003 (with ferrite core)

Terminator (Terminal resistor)
JEPMC-W6022

Slave

PLC (MECHATROLINK
master unit)
