4. SCON-CA
125

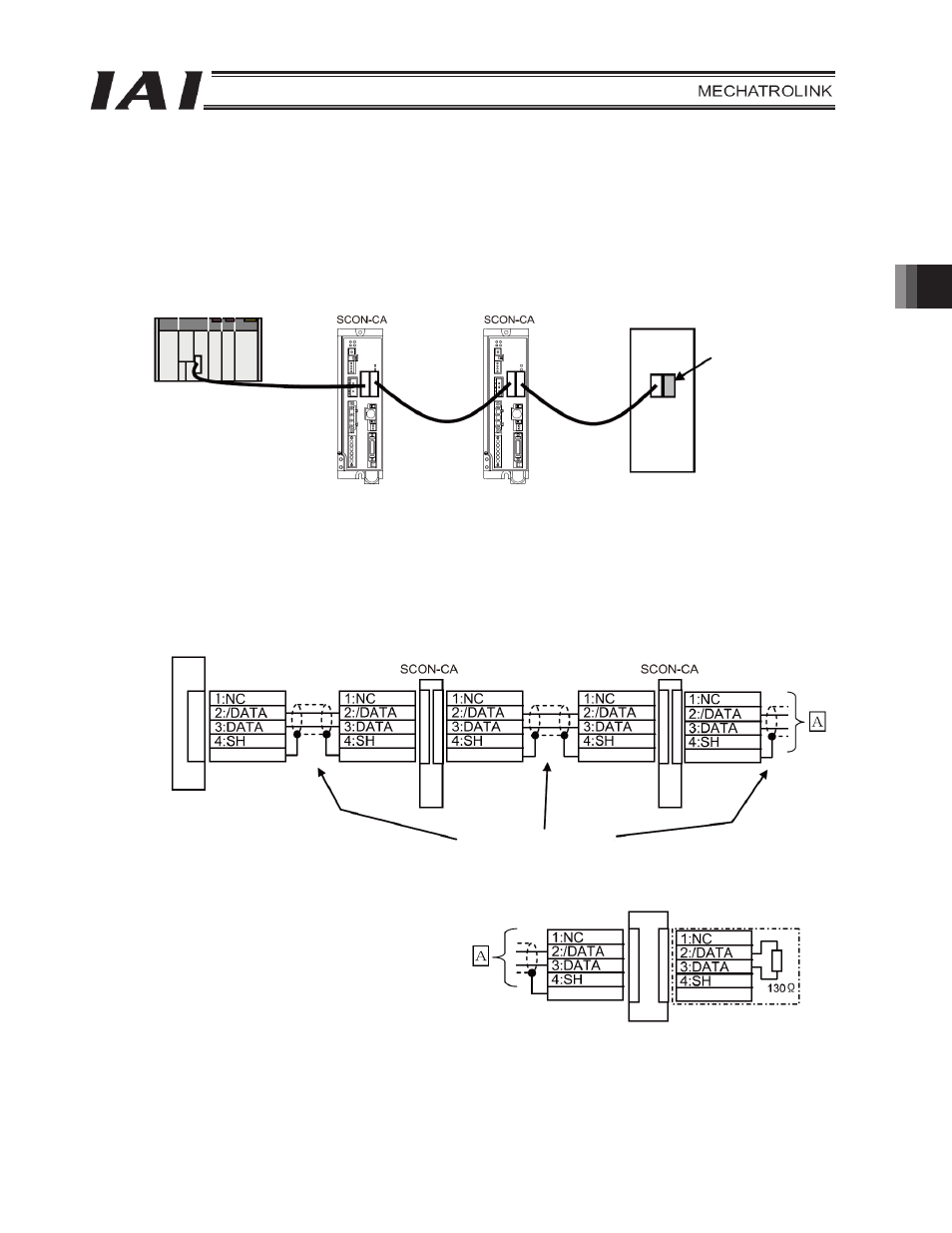

4.4
Example of Wiring
4.4.1 Wiring
Diagram
An example of wiring is as follows.
y Example of Wiring
y Example of connection
PLC (MECHATROLINK
master unit)
Slave
Terminator
(Terminal resistor)
Master unit
Connector shell
Connector shell
Connector shell
Connector shell
Connector shell
Connector shell
Connector shell
MECHATROLINK cables
y JEPMC-W6002
y JEPMC-W6003 (with ferrite core)
Terminator (Terminal resistor)
JEPMC-W6022
Slave
