4. SCON-CA



123


4.3 MECHATROLINK

Interface

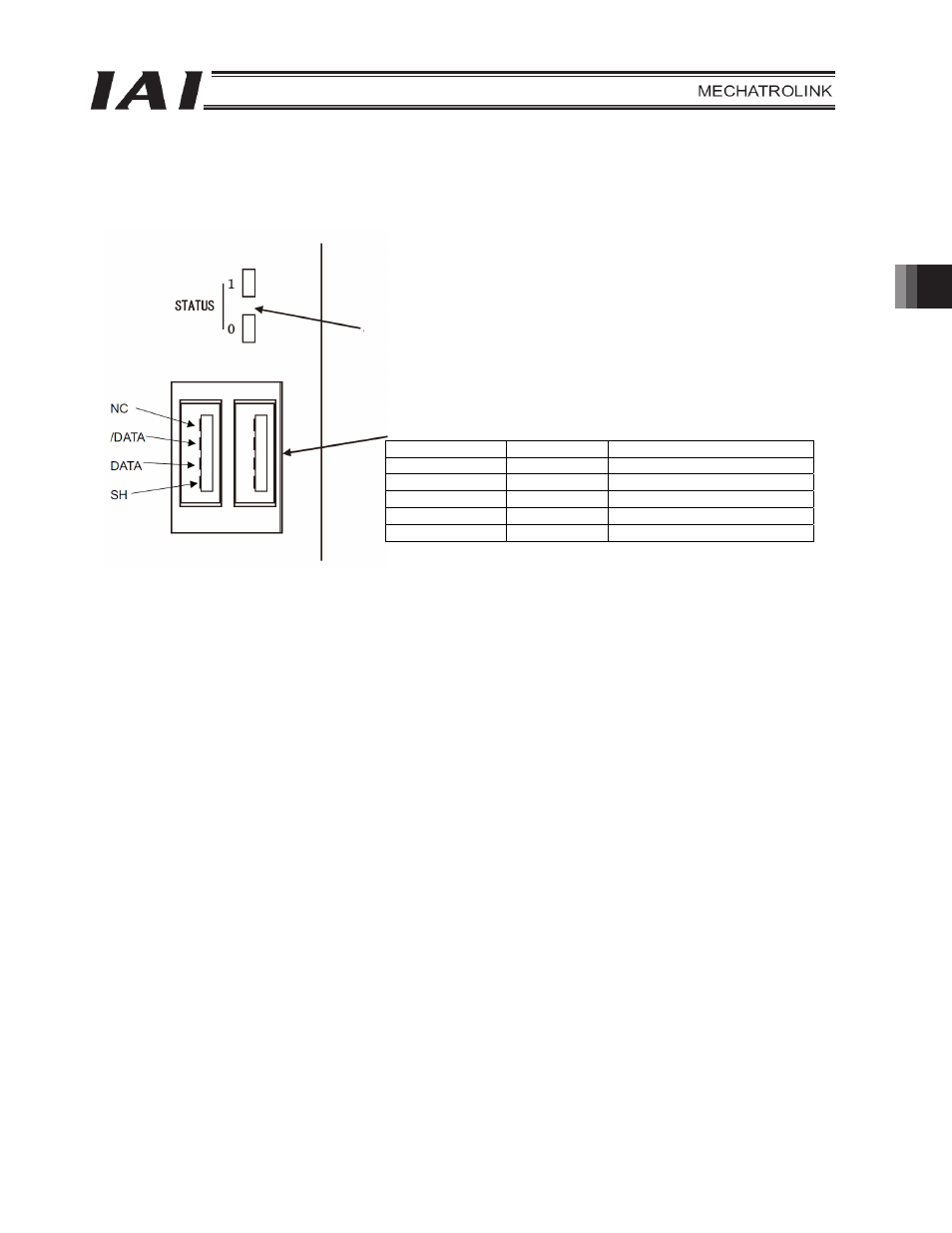

4.3.1 Name of Each Part

The name of each part relating to MECHATROLINK is shown.



















Status LEDs

MECHATROLINK communication connector (Dual-system)

Pin No.

Signal name

Description

1 NC

Not

used

2

/DATA

– side signal

3

DATA

+ side signal

4 SH

Not

used

Connector shell

Shield

Shielded wire to be connected
