4. SCON-CA


190


(31) Standstill Mode Selection (ASO0, ASO1) PLC Output Signals

Select the stop mode to be applied while the actuator is standing by to move to the next position after completing
a positioning.
If the actuator remains standstill for a long time, the servo is turned off automatically to lower the power
consumption.
For details, refer to the operation manual for your controller.

ASO1 ASO0

Functions

Remarks

OFF OFF Disabled

Factory

setting

OFF

ON

Auto servo OFF mode
T in the chart below corresponds to the setting of parameter No. 36.

ON

OFF

Auto servo OFF mode
T in the chart below corresponds to the setting of parameter No. 37.

ON

ON

Auto servo OFF mode
T in the chart below corresponds to the setting of parameter No. 38.














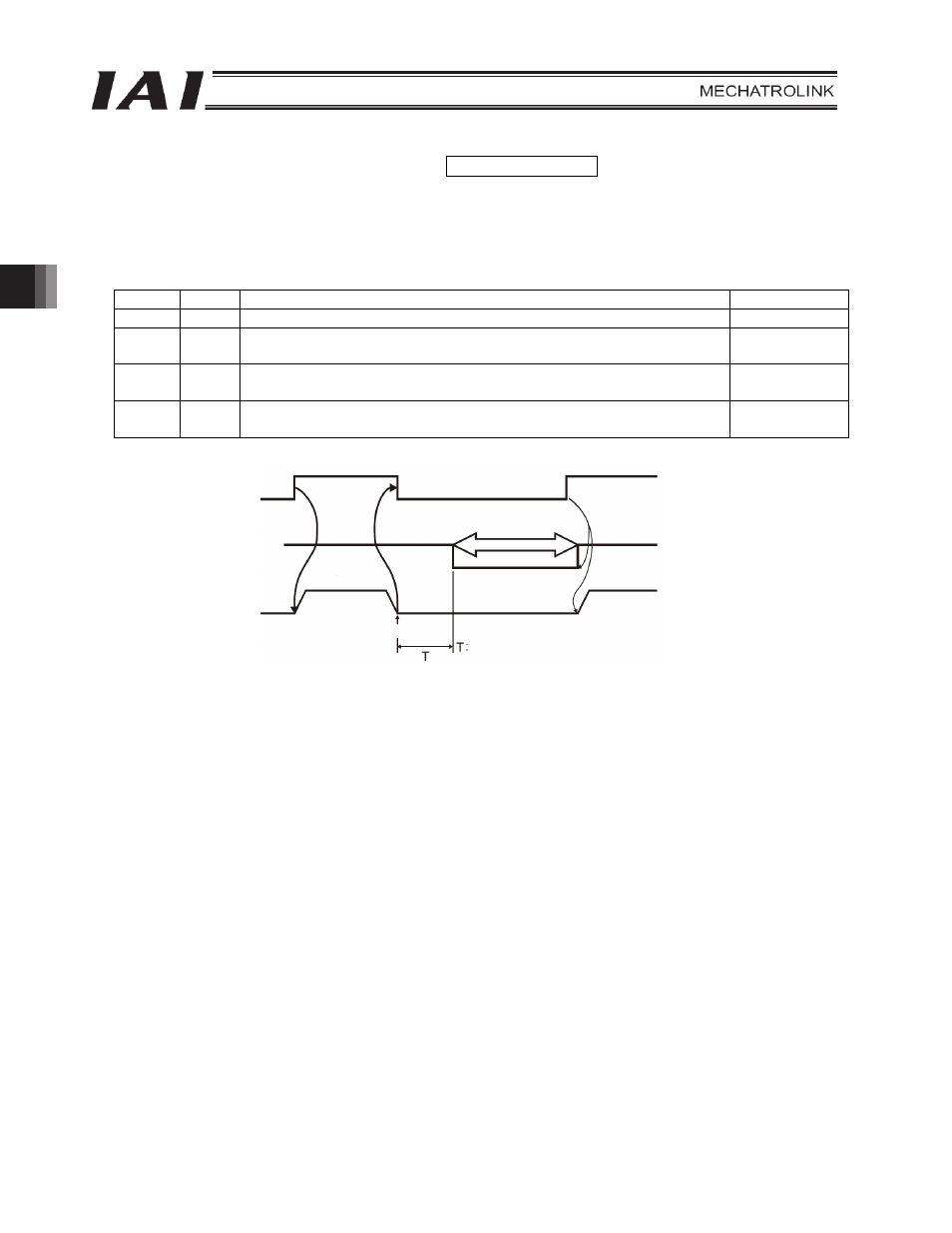

Movement command


Servo status

Actuator movement

Servo ON status

Auto servo OFF mode

(A green LED blinks.)

Delay time until the servo turns off after
completion of positioning (sec)

Target position
