4. SCON-CA


118

PLC



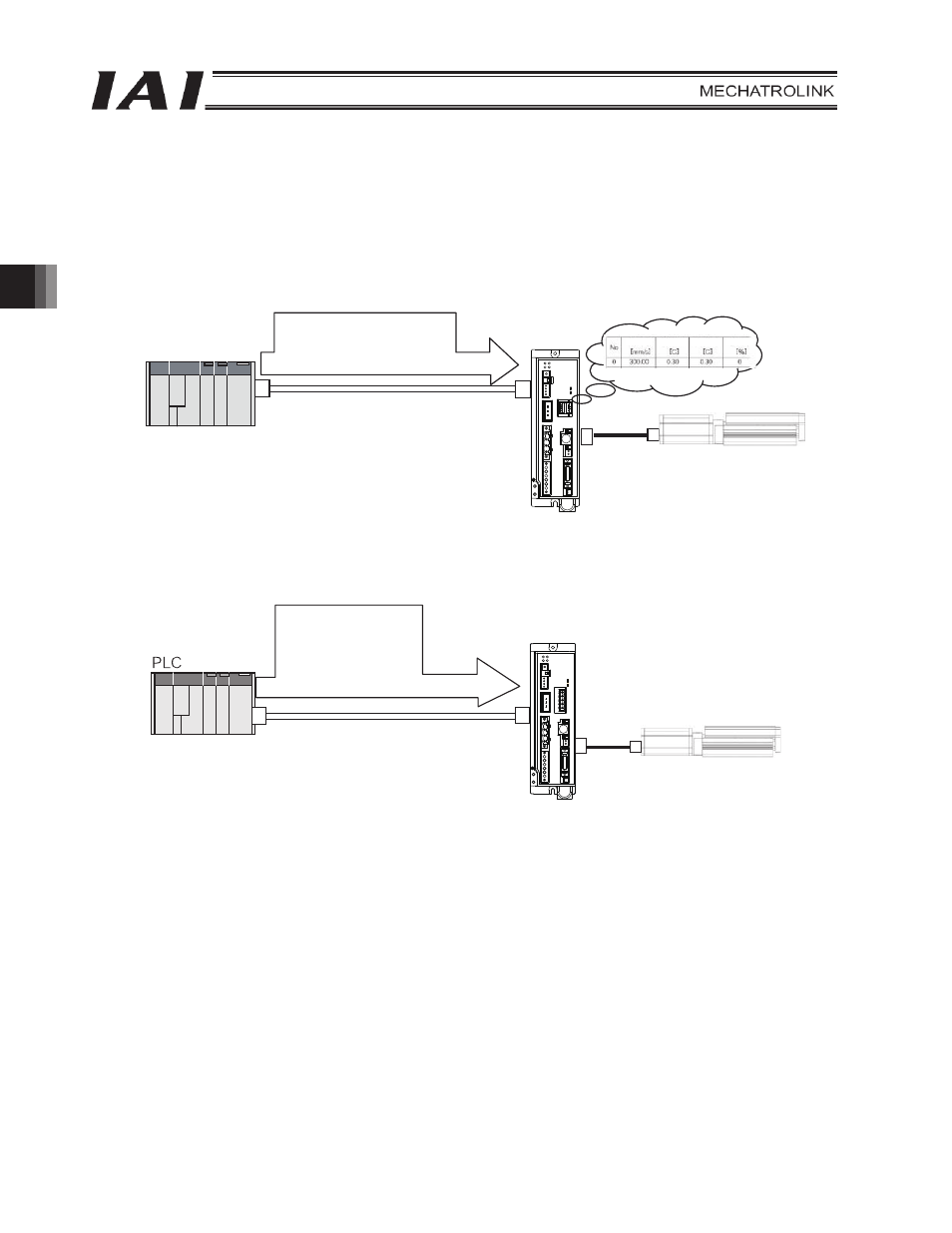

[2] Position/simple direct mode: In this mode, the actuator is operated by specifying position numbers.

You can select whether to specify the target position directly as a value, or use
a value registered in the position data table, by switching a control signal.
For the speed, acceleration/deceleration, positioning band, etc., values
preregistered in the position data table are used. Up to 768 position data points
can be set.
Number of occupied bytes: 8 bytes















[3] Half direct mode: In this mode, the actuator is operated by specifying the speed, acceleration/deceleration

and push current, in addition to the target position, directly as values.
Number of occupied bytes: 16 bytes

Target position: 100.00 mm
Positioning band: 0.10 mm
Speed specification:
100.0 mm/sec
Acceleration/deceleration:
0.30 G
Push current: 50%

SCON-CA supporting
MECHATROLINK

Actuator












Target position: 100.00 mm

+

Position No. 0

SCON-CA supporting

MECHATROLINK

Actuator

Speed

Acceleration

Deceleration

Push
