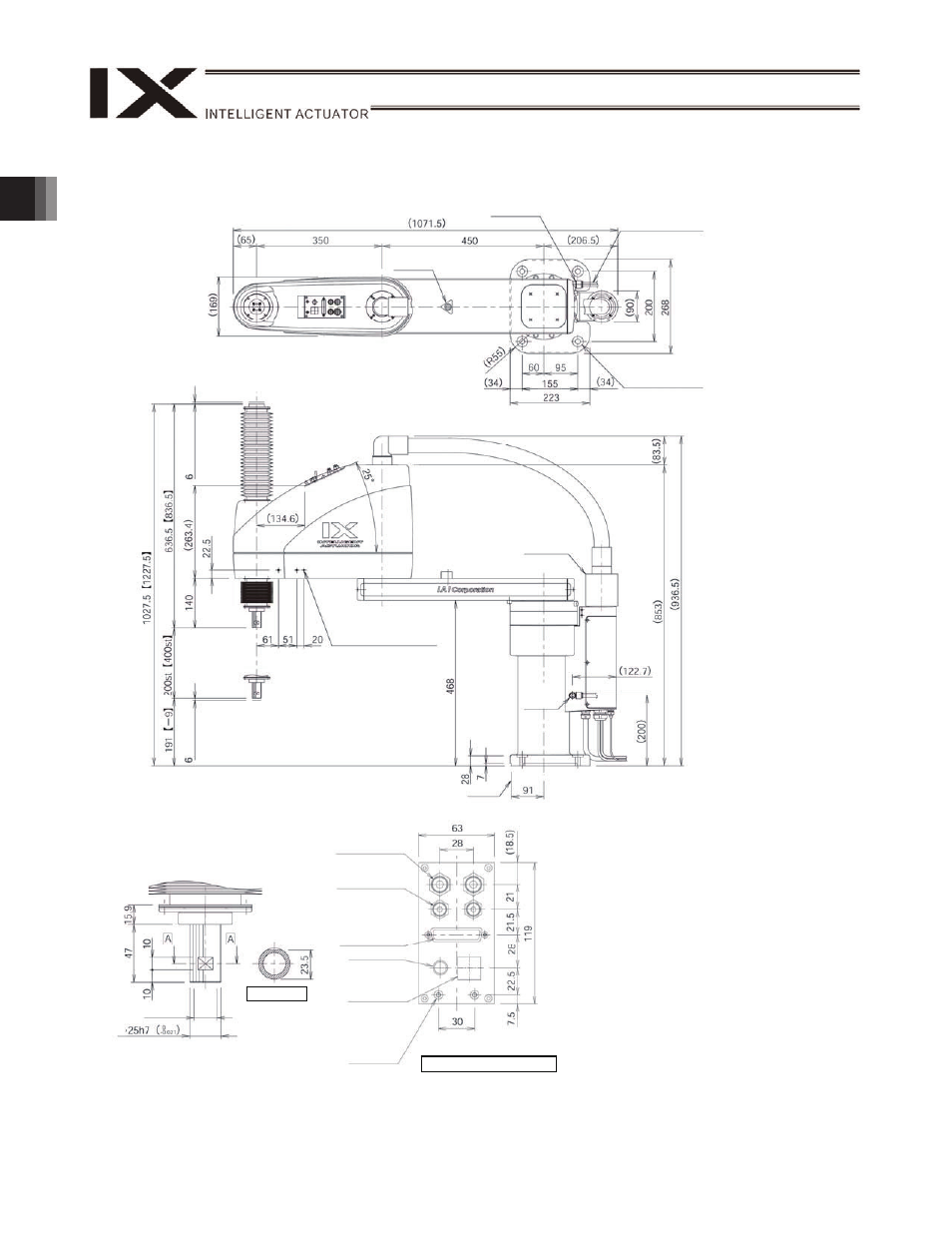

2. External Dimensions
IX-NNC80
H
Arm 2
stopper
Reference surface
Note 1: The prepared holes denoted by “3-M4, depth 8” are
through holes connecting both sides of the arm.
Note 2: External force applied to the spacers must not exceed
30 N in the axial direction or 2 N
m in the rotating
direction (for each spacer).
Note 3: The LED operates only when the user provides a
circuit that receives controller I/O output signal and
supplies 24 VDC to the LED terminal in the user
connector.
(M
echani
cal
end)
(M
ec
han
ic
al end)
18 hollow
Quick joint for
6 air tube
User connector
(D-sub connector for
user wiring)
(25-pin, socket,
fastener size M2.6)
BK SW
(Brake-release
switch)
Spacer outer
diameter
7
Height 10, M4,
depth 5 (Note 2)
Detail view of panel (1/2)
Quick joint for
4 air tube
ALM (Note 3)
Section A-A
Air joint
(Note 4)
Applicable tube: Outer diameter
12 (inner diameter 8)
4-14, bored
30 counterbored, depth 5
PT 3/8
Plug
3-M4, depth 8 (same on
opposite side)
Sealed by a setscrew (Note 1).
Arm 1, arm2
stopper
Red
Yellow
Black
White
