114
12. Inspection/Maintenance

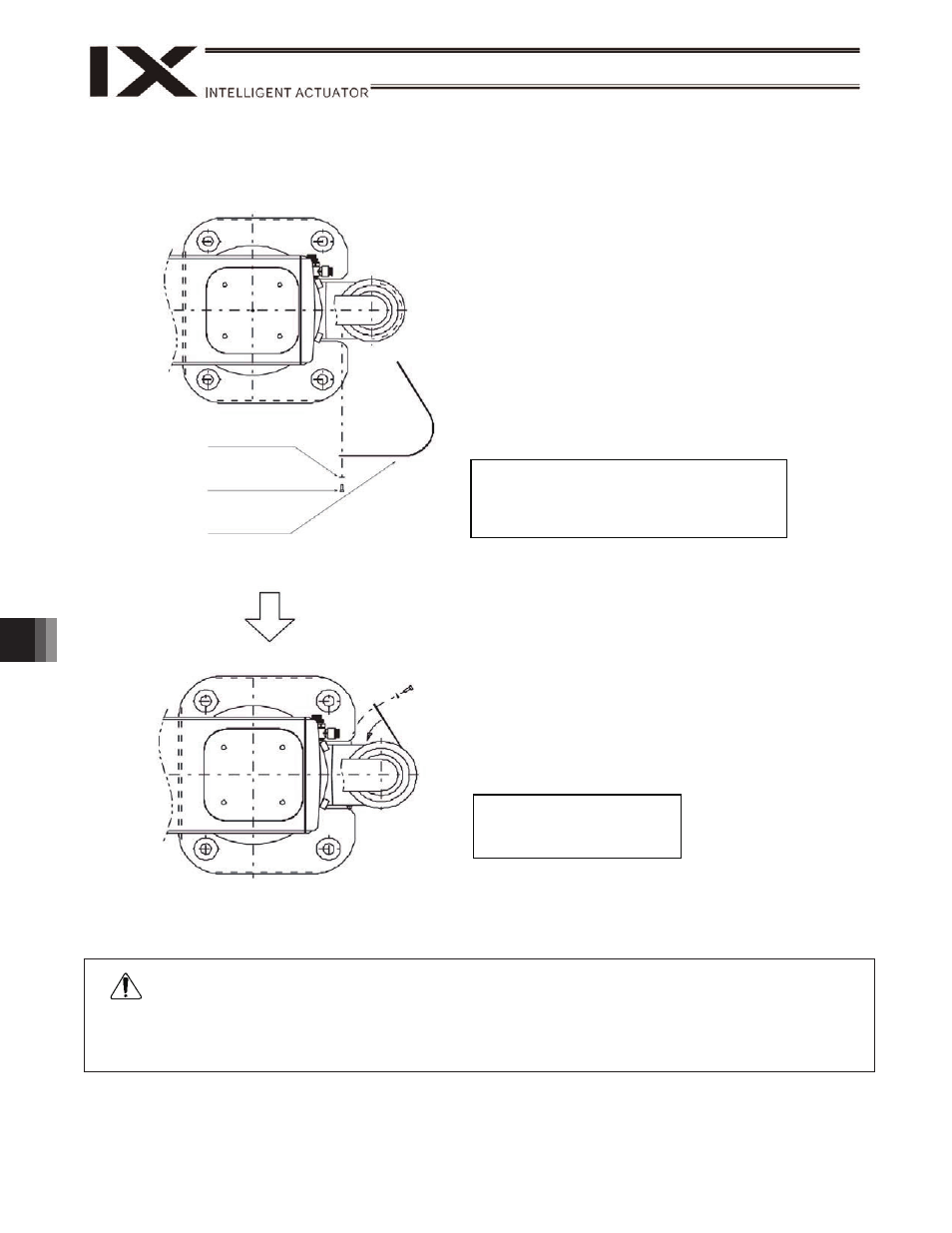

(5) Mount the cover (base) with hexagon socket head cap screw [1] and seal washers (6 each)
(tightening torque 0.74 N ˜m).
z Be careful not to pinch internal wiring when installing the cover (base).
z If you break down the cover area, water or dust may enter inside the machinery. Choose clean environment
when breaking the cover down.
Warning
Seal washer
[1] 6-3M x 6
Cover (base)
Mount one side of the cover (base) and
mount the mounting bolt on the opposite side
while pressing the cover on R of the base
contact surface.
Make sure that there is no
clearance between the cover
(base) and packing.
