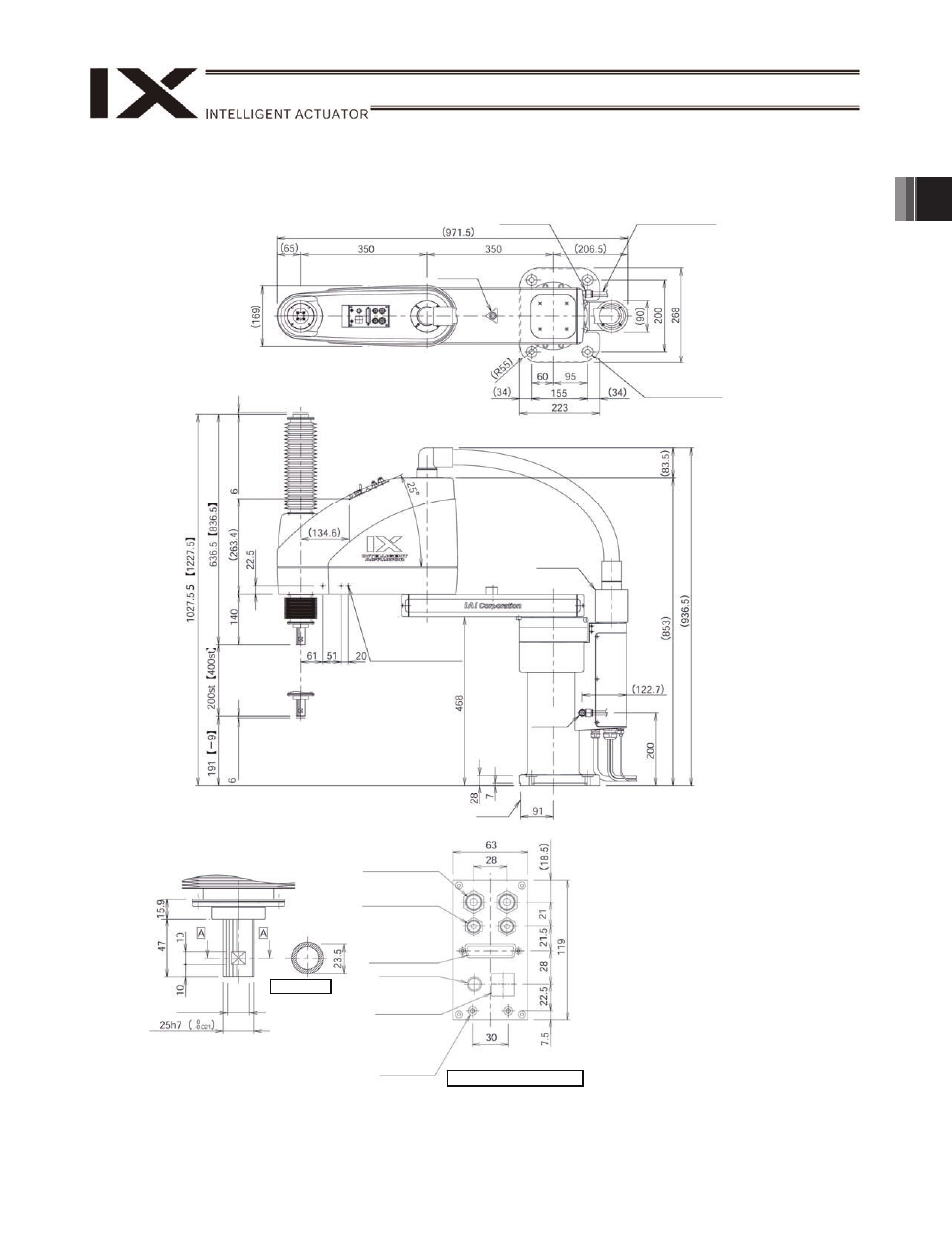

2. External Dimensions

IX-NNC70

Reference surface

Note 1: The prepared holes denoted by “3-M4, depth 8” are

through holes connecting both sides of the arm.

Note 2: External force applied to the spacers must not

exceed 30 N in the axial direction or 2 N

m in the

rotating direction (for each spacer).

Note 3: The LED operates only when the user provides a

circuit that receives controller I/O output signal and
supplies 24 VDC to the LED terminal in the user
connector.

echani

cal

end)

han

al end)

18 hollow

Quick joint for
6 air tube

User connector

(D-sub connector for

user wiring)

(25-pin, socket,

fastener size M2.6)

BK SW
(Brake-release
switch)

Spacer outer
diameter

Height 10, M4,

depth 5 (Note 2)

Detail view of panel (1/2)

Quick joint for
4 air tube

ALM (Note 3)

Section A-A

Air joint (Note 4)

Applicable tube: Outer diameter

12 (inner diameter 8)

4-14, bored
30 counterbored, depth 5

PT 3/8
Plug

Arm 2
stopper

Arm 1, arm2
stopper

3-M4, depth 8 (same on opposite
side)
Sealed by a setscrew (Note 1).

Red

Yellow

Black

White
