123
12. Inspection/Maintenance

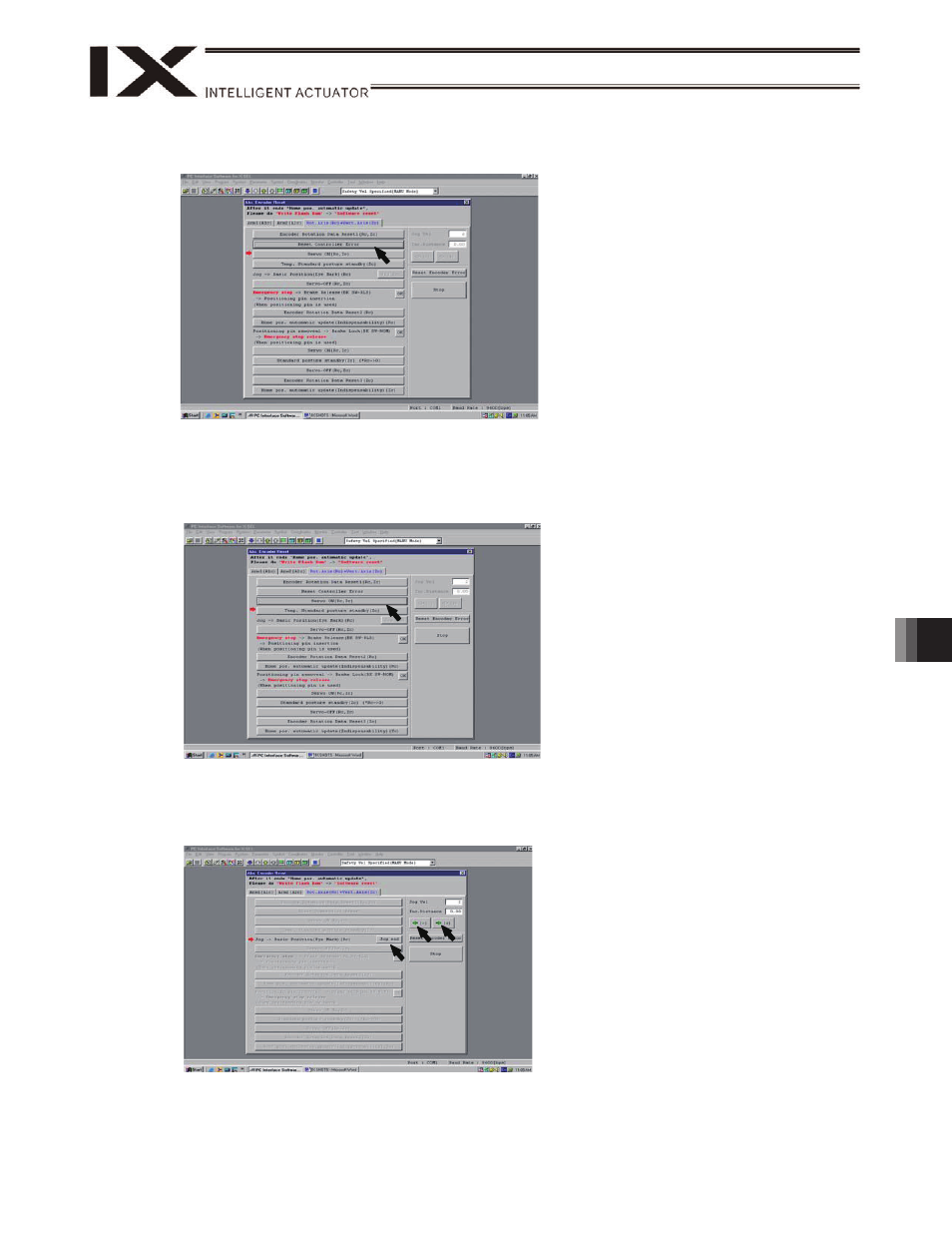

(3) Click the “Servo ON” button.
Servo ON
(4) Click the “Temp. Standard posture standby” button.
x The vertical axis returns to its home position. Exercise caution so as not to be injured by the axis during
movement.
Standing By at Tentative Home Position
(5) Jog the rotational axis to the reference position (see reference position drawing in step 8)), and click the
“Jog end” button.
Jogging
