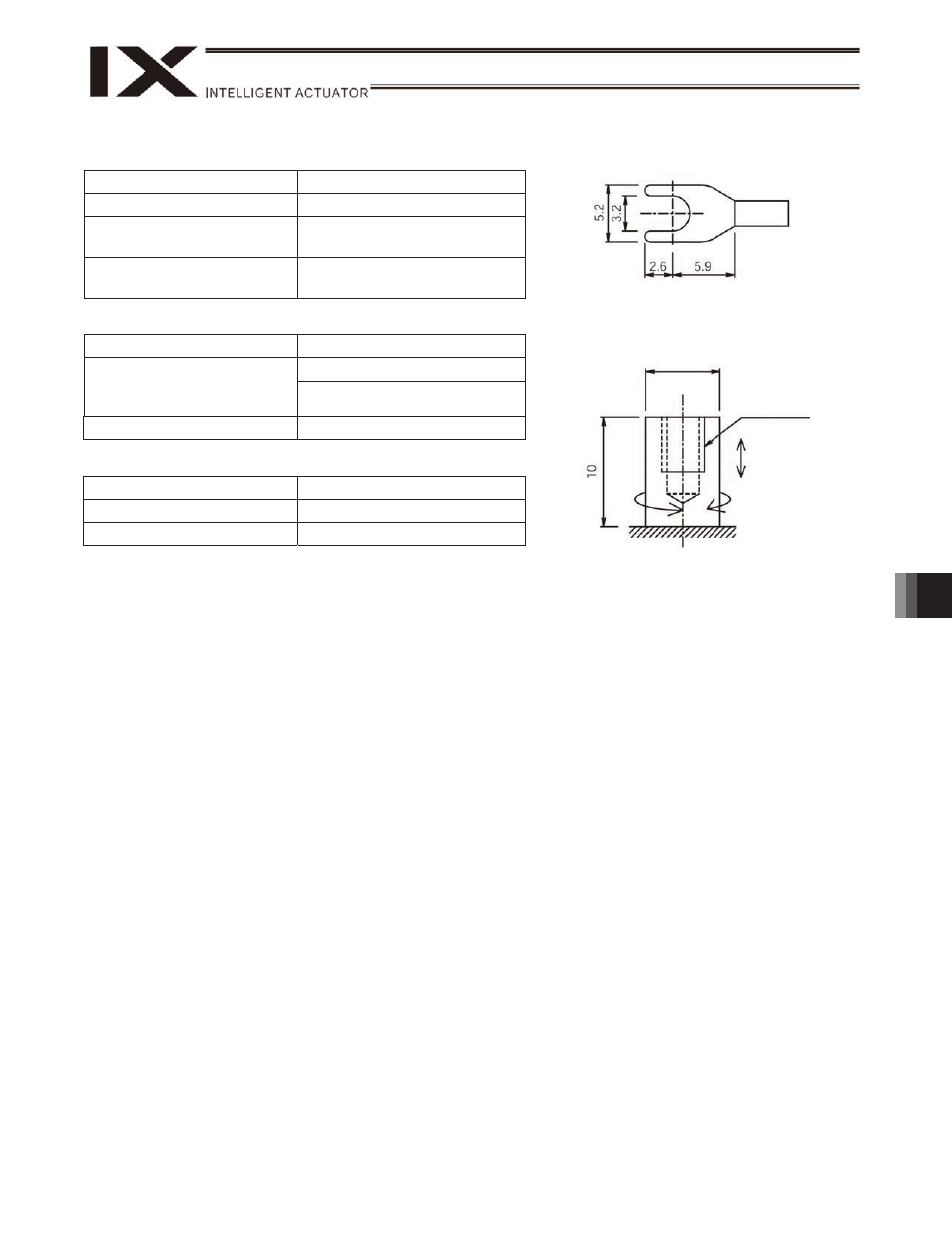

1. Precautions for Use
Shape of Y-terminal
Spacer for user part installation
M4, depth 5
30 N or less
2 N ˜m or
External force applied to the spacers must
not exceed 30 N in the axial direction or 2
N
˜m in the rotating direction (for each
‡7
User connector specifications
Rated voltage 30 V
Permissible current 1.1 A
Conductor size and number
of wires
AWG 26 (0.15 mm 2 ), 25 wires
Other
Twisted-pair cable
(1 to 24), shielded
Piping specifications
Normal service pressure 0.8 MPa
‡4 mm x ‡2.5 mm, 2 pieces
Dimensions (outer diameter x
inner diameter) and number
of tubes
‡6 mm x ‡4 mm, 2 pieces
Working medium Air
ALM (indicator) specifications
Rated voltage 24 VDC
Rated current 12 mA
Illumination color Red LED
