Connecting a Radio Receiver for Remote Open
Revision E Reference 6-1
Reference
Chapter 6
This section of the manual provides information which may be useful when installing SwingSmart operators.
It includes how to:
•
Connect a Radio Receiver for Remote Open
• Install a Gate Locking Mechanism
• Setting User Relay Functions
• Install Vehicle Detectors and Loops
• Install Photoelectric Sensors
• Install Gate Edge Sensors
• Troubleshoot error codes, faults, and hardware issues
• Diagnose vehicle detector and loop faults
• Review General Maintenance procedures
C
ONNECTING A
R
ADIO
R
ECEIVER FOR
R
EMOTE
O
PEN
Take the following steps to mount a commercial
style 24VDC radio receiver (external antenna
type):
1. Install the receiver in the channel of the
chassis on either side of the electrical box.
2. Knock out the closest hole in the bottom of
the electrical box and route the wires to the
area marked RADIO OPTIONS. Only
three wire connections are needed because
the common wire and one radio output wire
are connected together. Figure 6-1 shows
additional wires from a two channel receiver.
3. Make sure to observe polarity and crimp
together the black radio common wire and
one of the radio output wires using a ¼-inch
spade connector.
4. Fasten the two crimped wires to the COM
terminal.
5. Connect the red wire to the +24V spade and connect the other radio output contact wire to the spade
marked OPEN.
COM
EDGE
EYE
COM
+ 24 V
EMERG
OPEN
SHOW
LEDs
RADIO OPTIONS
EDGE +24V OP
EN COM
DUAL GATE
B A
U
SE
R2
COM NO
DC
Two Channel Radio Receiver
Power
Shows connecƟons
for Remote Open
and Gate Edge (dashed line).
R2
R1

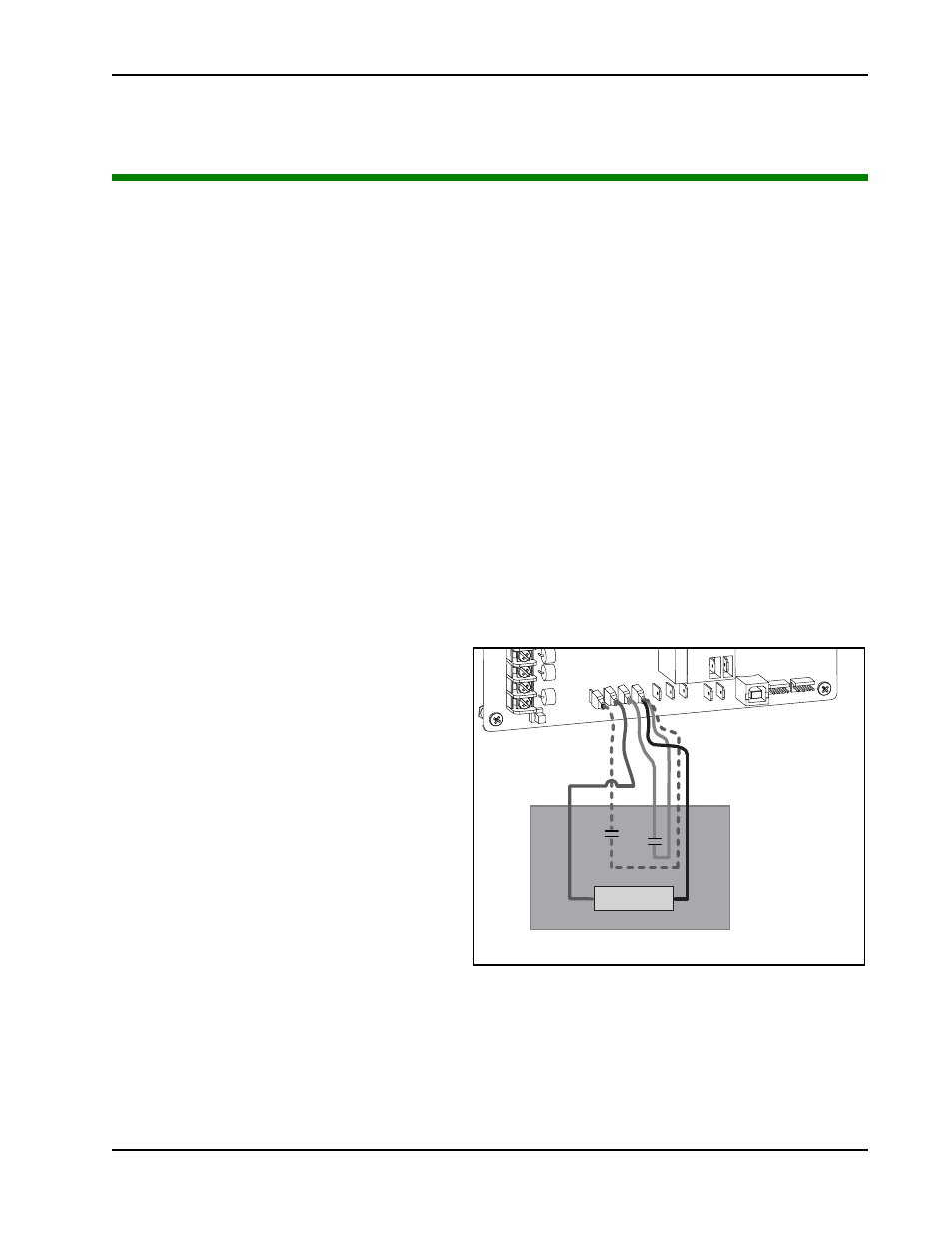

Figure 6-1.
